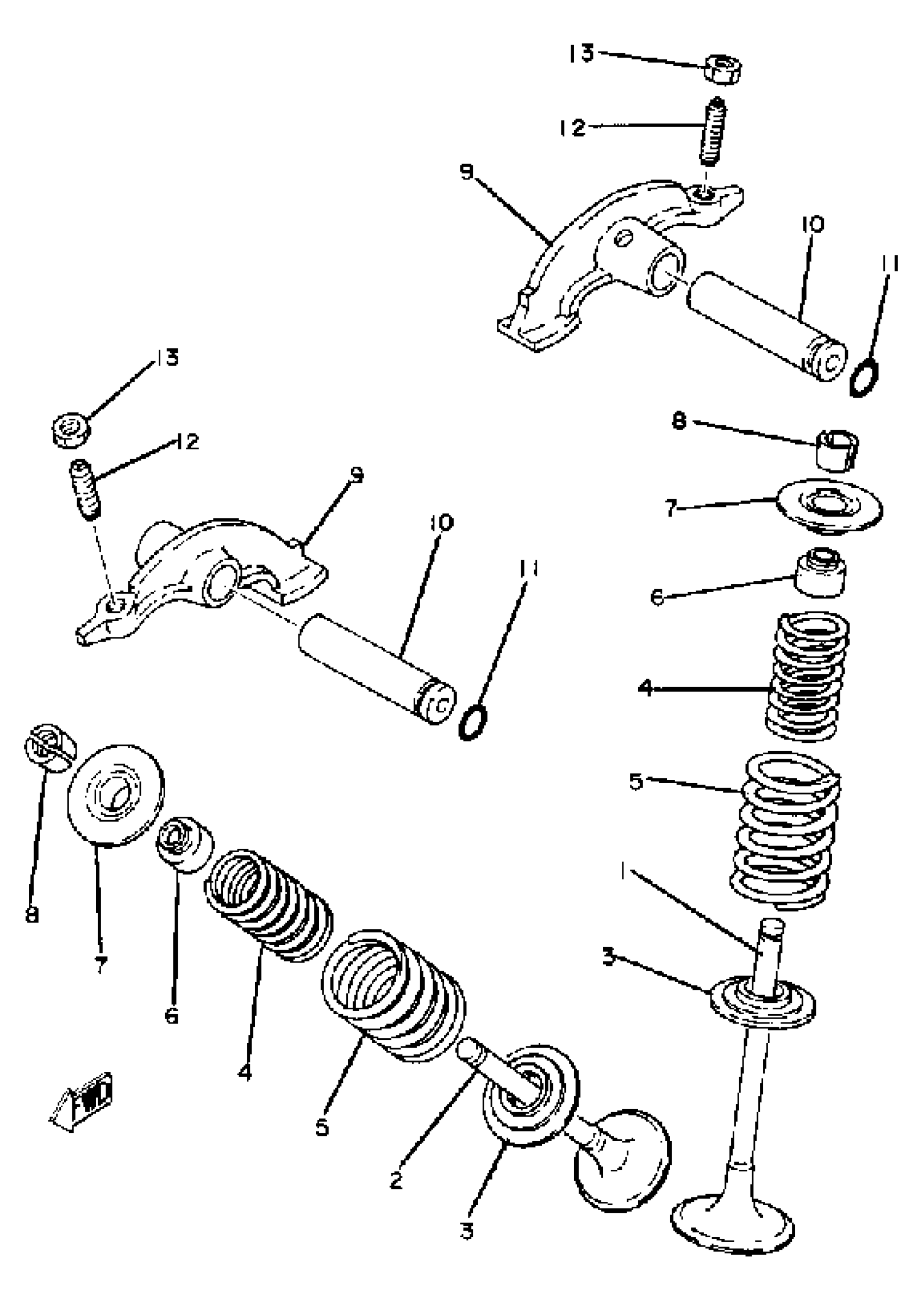

Yamaha SR250G (SR250G) 1980 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

3Y1-12111-01-00

Unavailable

2

VALVE, EXHAUST

3Y1-12121-01-00

$86.88

3

SEAT, VALVE SPRING

3Y1-12116-00-00

$13.40

4

SPRING, VALVE INNER

3Y1-12113-01-00

Unavailable

5

SPRING, VALVE OUTER

3Y1-12114-01-00

$31.22

6

SEAL, VALVE STEM OIL

1J7-12119-01-00

$17.03

7

RETAINER, VALVE SPRING

3Y1-12117-01-00

$14.43

8

LOCK, VALVE SPRING

1J7-12118-00-00

$5.99

9

ARM, ROCKER (XT/SR/TT250)

99999-01443-00

$158.26

10

SHAFT, ROCKER

3Y1-12156-00-00

Unavailable

11

O-RING (1J7)

93210-09350-00

$5.42

12

SCREW, VALVE ADJUSTING

2NX-12159-00-00

$9.55

13

NUT HEXAGON 371121580000

90170-06128-00

$5.75
