1980 Yamaha SR250G (SR250G) Crankcase Diagram

← All diagrams

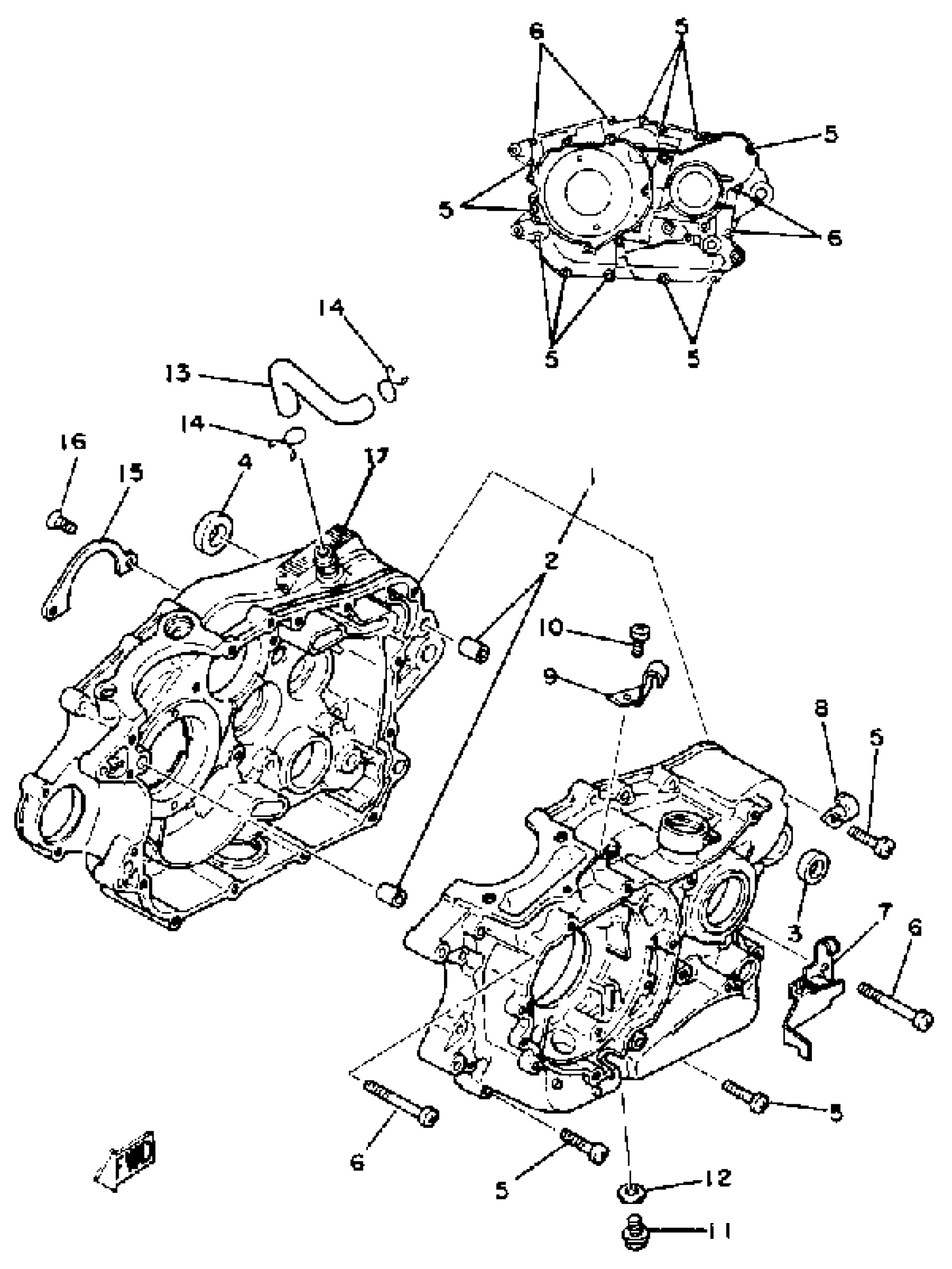

Find the part on the Crankcase diagram for your 1980 Yamaha SR250G (SR250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR250G (SR250G) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

99999-01670-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

COLLAR

90387-17009-00

1
Out of stock

4

COLLAR (3Y1)

90387-16782-00

1

$4.65

In stock

5

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

6

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

7

CLAMP

90465-08060-00

—

$10.66

In stock

8

CLAMP(51Y)

90465-08277-00

—
Out of stock

9

HOLDER, CLUTCH CABLE (3Y1-15441-010

31G-15441-00-00

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

1

$8.44

In stock

12

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

13

PIPE, BREATHER 1

3Y6-11166-00-00

1

$9.49

In stock

14

CLIP (371)

90467-14015-00

1

$7.51

In stock

15

PLATE, BRNG COVER

(3Y1-15383-00-00)

1
Out of stock

16

SCREW, FLAT

98707-06014-00

—
Out of stock

17

PIPE, BREATHER 2

371-11167-01-00

—

$10.35

In stock
