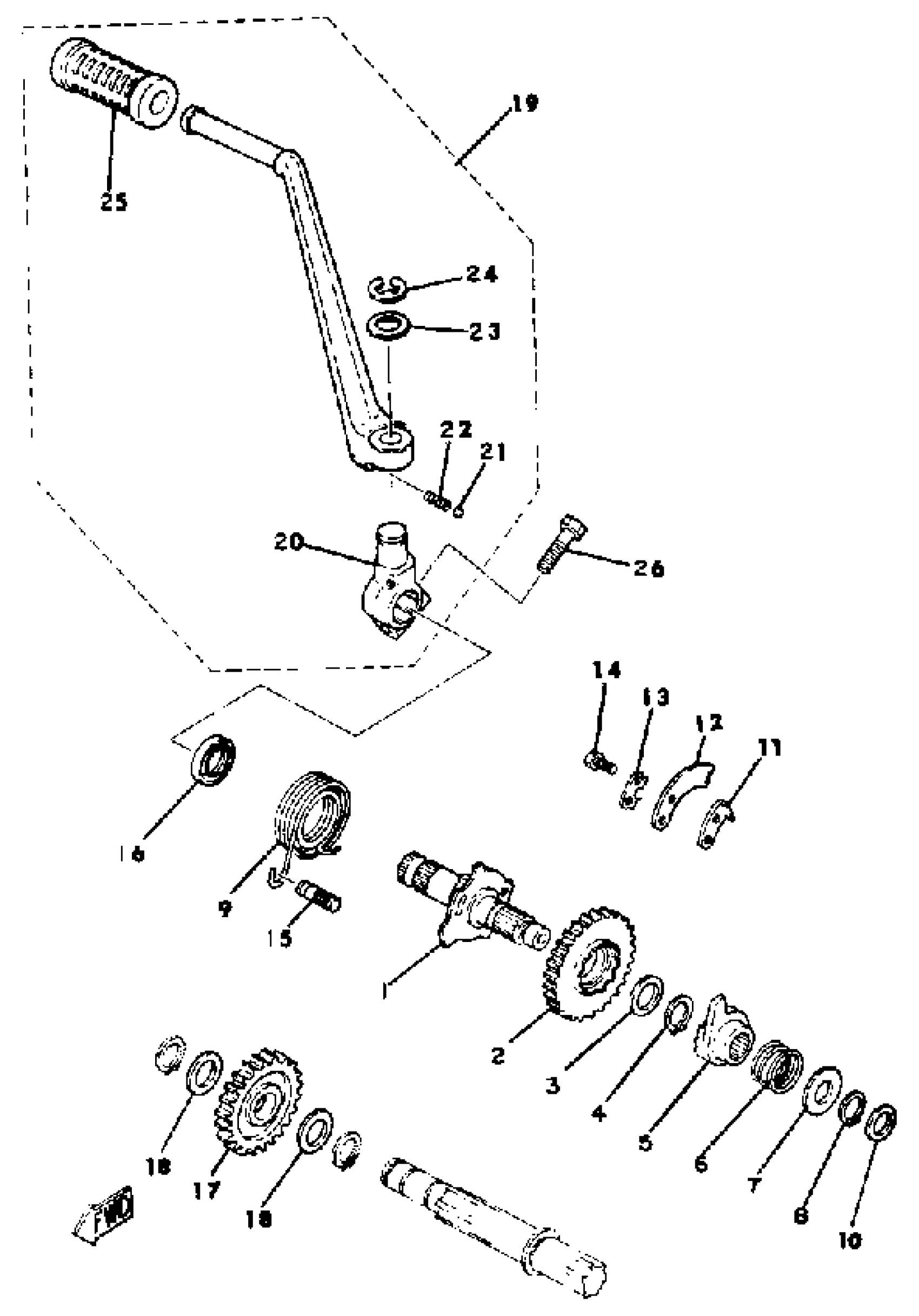

Yamaha SR250G (SR250G) 1980 KICK STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY

3Y1-15660-00-00

$69.92

2

GEAR, KICK

30X-15641-01-00

$75.73

3

WASHER, PLATE (2K7)

90201-20685-00

$5.61

4

CIRCLIP (525)

93410-20038-00

$2.44

5

WHEEL, RATCHET

3Y1-15671-00-00

Unavailable

6

SPRING COMPRESSION168156750000

90501-16107-00

Unavailable

7

WASHER, PLAIN (1JL)

90201-155K6-00

Unavailable

8

CIRCLIP(1AR)

99009-15400-00

$4.89

9

SPRING, TORSION

90508-324B5-00

Unavailable

10

WASHER (566)

90201-15701-00

$5.75

11

STOPPER

2NX-15668-00-00

$19.95

12

GUIDE, RATCHET WHL

(3Y6-15674-00-00)

Unavailable

13

WASHER, LOCK

214-15686-00-00

$5.96

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

15

STOPPER, KICK SPRING

248-15668-00-00

$6.29

16

OIL SEAL (20X30X7-371)

93102-20108-00

Unavailable

17

GEAR, KICK IDLE

3Y1-15651-00-00

Unavailable

18

WASHER PLATE 328171160000

90201-20276-00

Unavailable

19

KICK CRANK ASY

1L9-15620-01-93

Unavailable

20

BOSS, KICK CRANK

583-15621-00-00

Unavailable

21

BALL (12R)

93507-32031-00

Unavailable

22

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

23

WASHER (3XVC)

90201-153A1-00

Unavailable

24

CIRCLIP

99006-10600-00

Unavailable

25

COVER, KICK LEVER

156-15618-01-00

Unavailable

26

BOLT, HEXAGON

97013-08030-00

Unavailable
