1980 Yamaha SR250G (SR250G) Taillight Diagram

← All diagrams

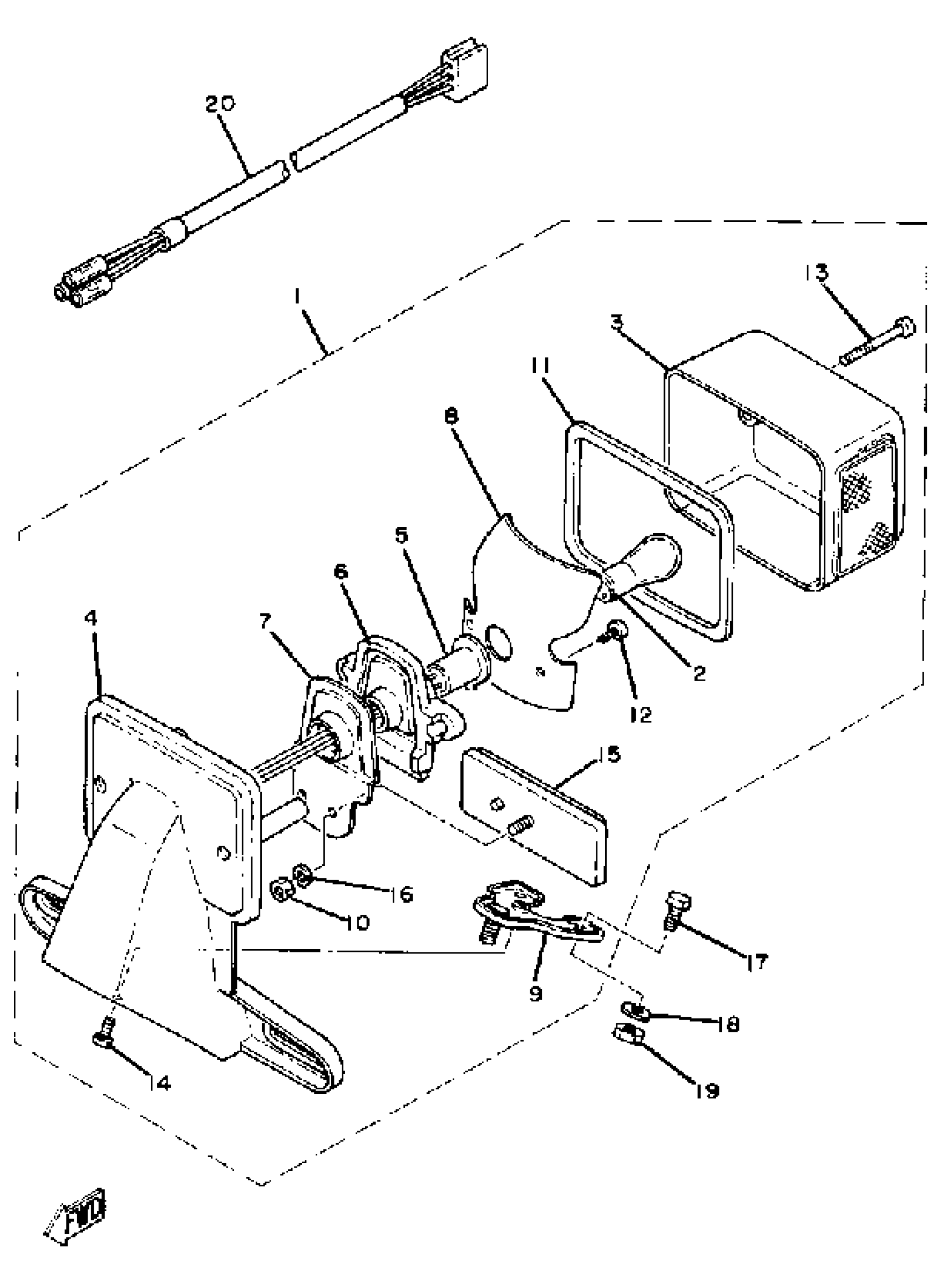

Find the part on the Taillight diagram for your 1980 Yamaha SR250G (SR250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SR250G (SR250G) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSY

3Y6-84700-60-00

—
Out of stock

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1
Out of stock

4

BRACKET, LICENCE

3Y6-84751-00-00

—
Out of stock

5

. SOCKET CORD ASSEMBLY

3Y1-84536-00-00

1
Out of stock

6

DAMPER

(3Y1-83527-00-00)

1
Out of stock

7

HOLDER, BASE SEAT

(3Y6-84713-00-00)

1
Out of stock

8

REFLECTER, TAIL LIGHT

3Y1-84531-00-00

—
Out of stock

9

BOLT, FITTING

(3Y6-84752-00-00)

1
Out of stock

10

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

11

SEAL

1VJ-14462-00-00

1
Out of stock

12

SCREW, TAPPING

97780-40116-00

1
Out of stock

13

SCREW, LENS FITTING

3Y1-84524-00-00

1
Out of stock

14

SCREW, BIND

98980-04008-00

1
Out of stock

15

REAR REFLECTOR ASSY

3Y6-85130-02-00

1
Out of stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

18

WASHER, SPRING

92995-06100-00

1
Out of stock

19

NUT, HEXAGON

95380-06600-00

1
Out of stock

20

CORD, TAILLIGHT

(3Y6-84717-00-00)

1
Out of stock
