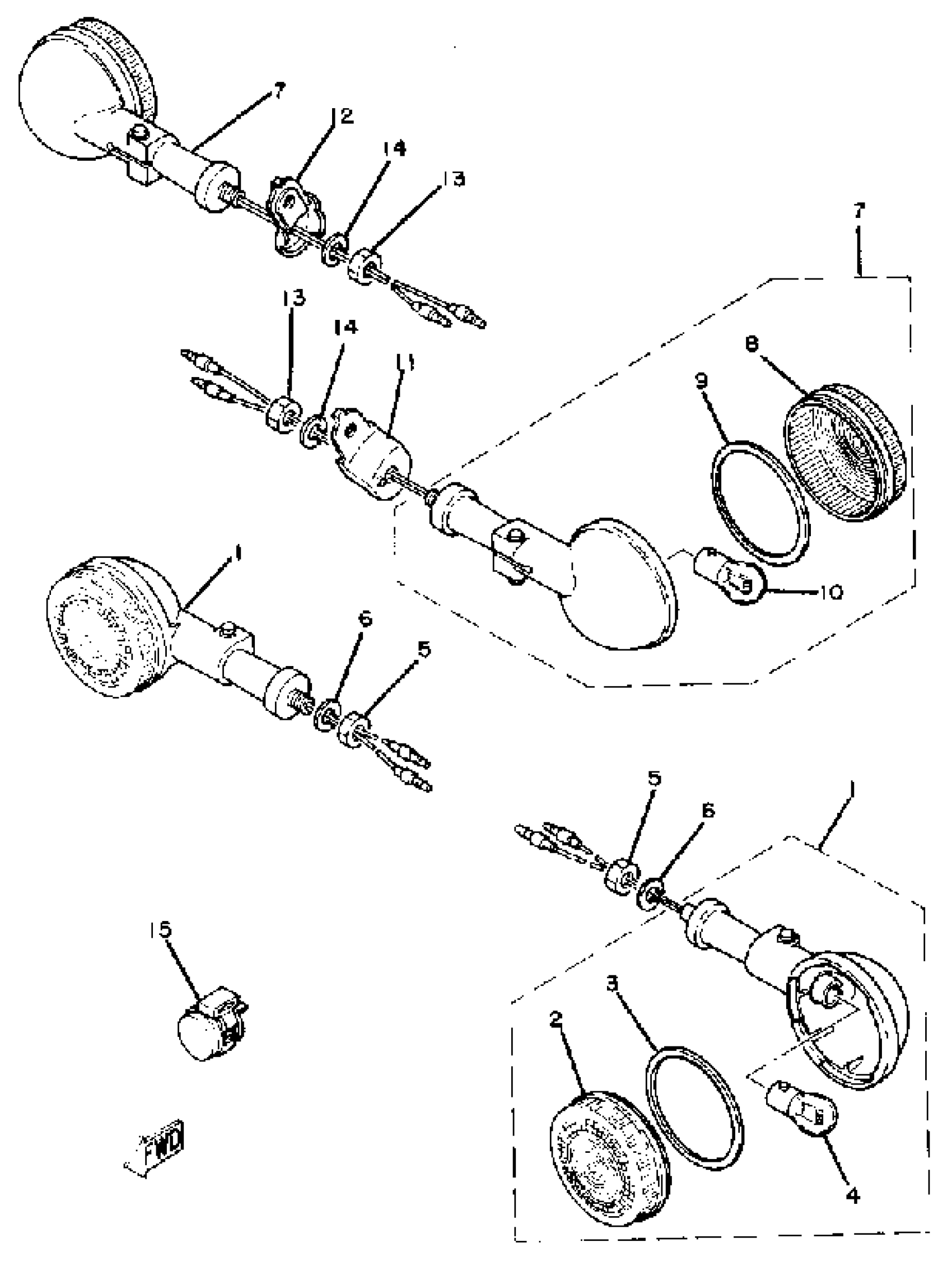

Yamaha SR250G (SR250G) 1980 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY

3Y6-83320-70-00

Unavailable

2

LENS, FLASHER

3Y6-83312-00-00

$8.88

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$6.15

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

NUT(3DM)

95304-12600-00

$6.22

6

YBS67-12 WASHER,SPRING

92990-12100-00

$6.58

7

REAR FLASHER LIGHT ASSY 1

3Y6-83330-70-00

Unavailable

8

LENS, FLASHER

3Y6-83312-00-00

$8.88

9

GASKET, FLASHER LENS

3Y6-83313-00-00

$6.15

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

STAY, FLASHER

3Y6-83368-00-00

$11.85

12

STAY, FLASHER

3Y6-83369-00-00

Unavailable

13

NUT(3DM)

95304-12600-00

$6.22

14

YBS67-12 WASHER,SPRING

92990-12100-00

$6.58

15

FLASHER RELAY ASSY

3Y6-83350-71-00

Unavailable
