1980 Yamaha SR250G (SR250G) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1980 Yamaha SR250G (SR250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

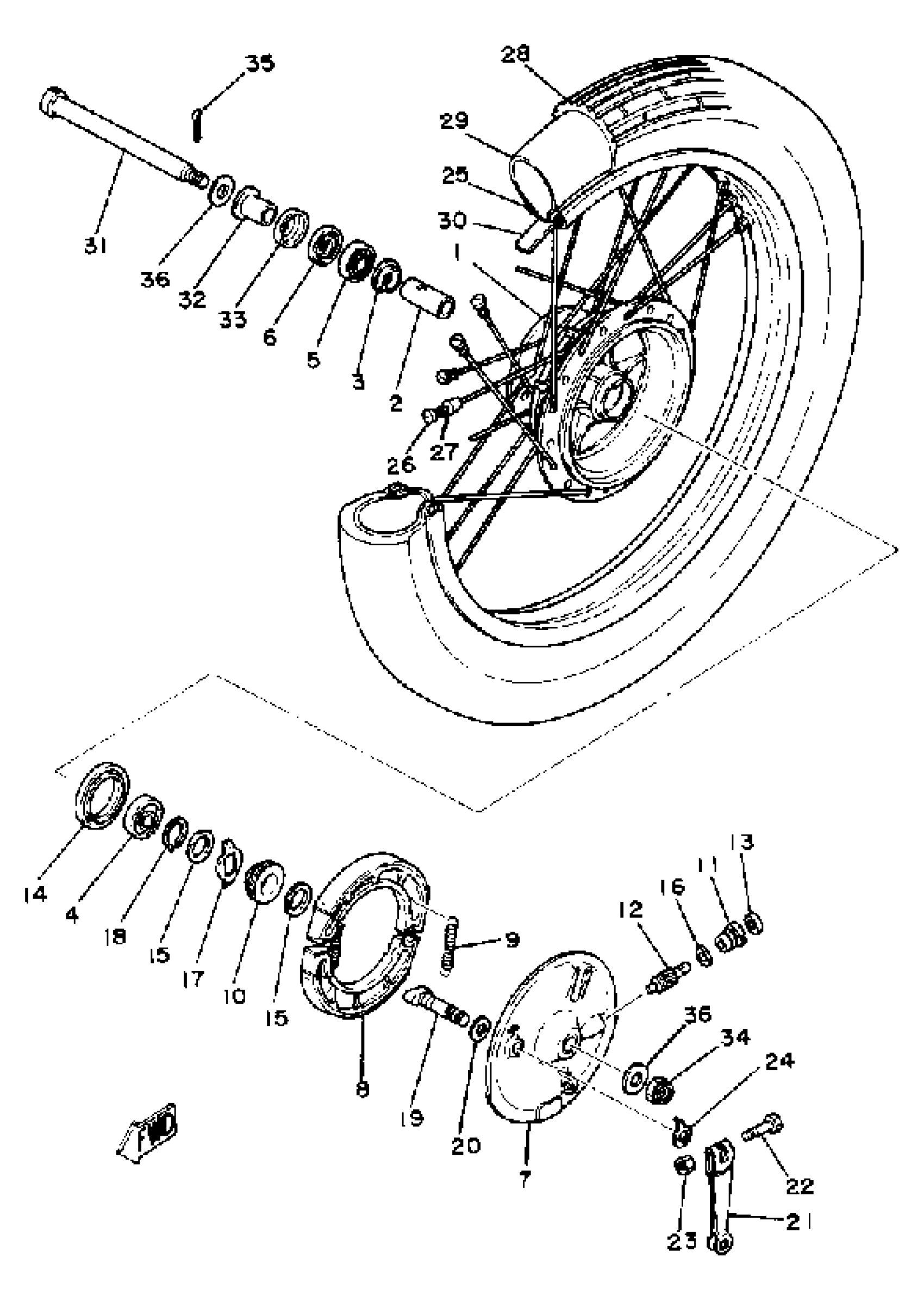

1980 Yamaha SR250G (SR250G) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(3Y6-25111-00-38)

1
Out of stock

2

SPACER(1EE)

90560-15293-00

—
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1
Out of stock

5

BEARING

93306-20205-00

1
Out of stock

6

OIL SEAL (20X35X7-136)

93102-20009-00

1
Out of stock

7

PLATE, BRAKE SHOE

3Y6-25121-00-38

—
Out of stock

8

BRAKE SHOE SET-2PCS

431-W2536-00-00

1
Out of stock

9

SPRING, TENSION 2462533300

90507-20002-00

1
Out of stock

10

GEAR, DRIVE

246-25135-00-00

—
Out of stock

11

BUSHING

109-25136-00-00

1
Out of stock

12

GEAR, METER

214-25138-00-00

—
Out of stock

13

OIL SEAL (7X14X4-136)

93104-07003-00

1
Out of stock

14

OIL SEAL (50X62X7-214)

93105-50010-00

1
Out of stock

15

WASHER PLATE 214251470000

90201-22283-00

1
Out of stock

16

WASHER, PLATE 1832514600

90201-07076-00

—
Out of stock

17

CLUTCH, METER

214-25149-01-00

—
Out of stock

18

CIRCLIP(1EY)

99009-22400-00

—
Out of stock

19

CAMSHAFT

(3Y6-25151-00-00)

1
Out of stock

20

SHIM, CAM SHAFT

148-25353-00-00

—
Out of stock

21

LEVER, CAM SHAFT

2N6-25155-00-00

—
Out of stock

22

BOLT, HEXAGON (538)

90101-06278-00

—
Out of stock

23

NUT, HEXAGON

95380-06600-00

1
Out of stock

24

PLATE

3Y6-2533A-01-00

—
Out of stock

25

RIM (1.60-18)

94416-18003-00

—
Out of stock

26

SPOKE SET, FRONT

3Y6-25104-00-00

—
Out of stock

27

BALANCER, WHEEL

3HT-25398-00-00

—
Out of stock

28

300-18 4PR Y954

94130-18429-00

1
Out of stock

29

TUBE (5H5)

94227-18195-00

—
Out of stock

30

BAND, RIM (2J4)

94340-18086-00

—
Out of stock

31

AXLE, WHEEL

1W1-25181-01-00

—
Out of stock

32

COLLAR (1W1)

90387-15600-00

—
Out of stock

33

COVER, HUB DUST

322-25118-00-00

—
Out of stock

34

NUT, CASTLE(2UJ)

90171-14056-00

—
Out of stock

35

PIN, COTTER

91490-30030-00

—
Out of stock

36

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock
