1982 Yamaha SR185J (SR185J) Side Cover Tool Diagram

← All diagrams

Find the part on the Side Cover Tool diagram for your 1982 Yamaha SR185J (SR185J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

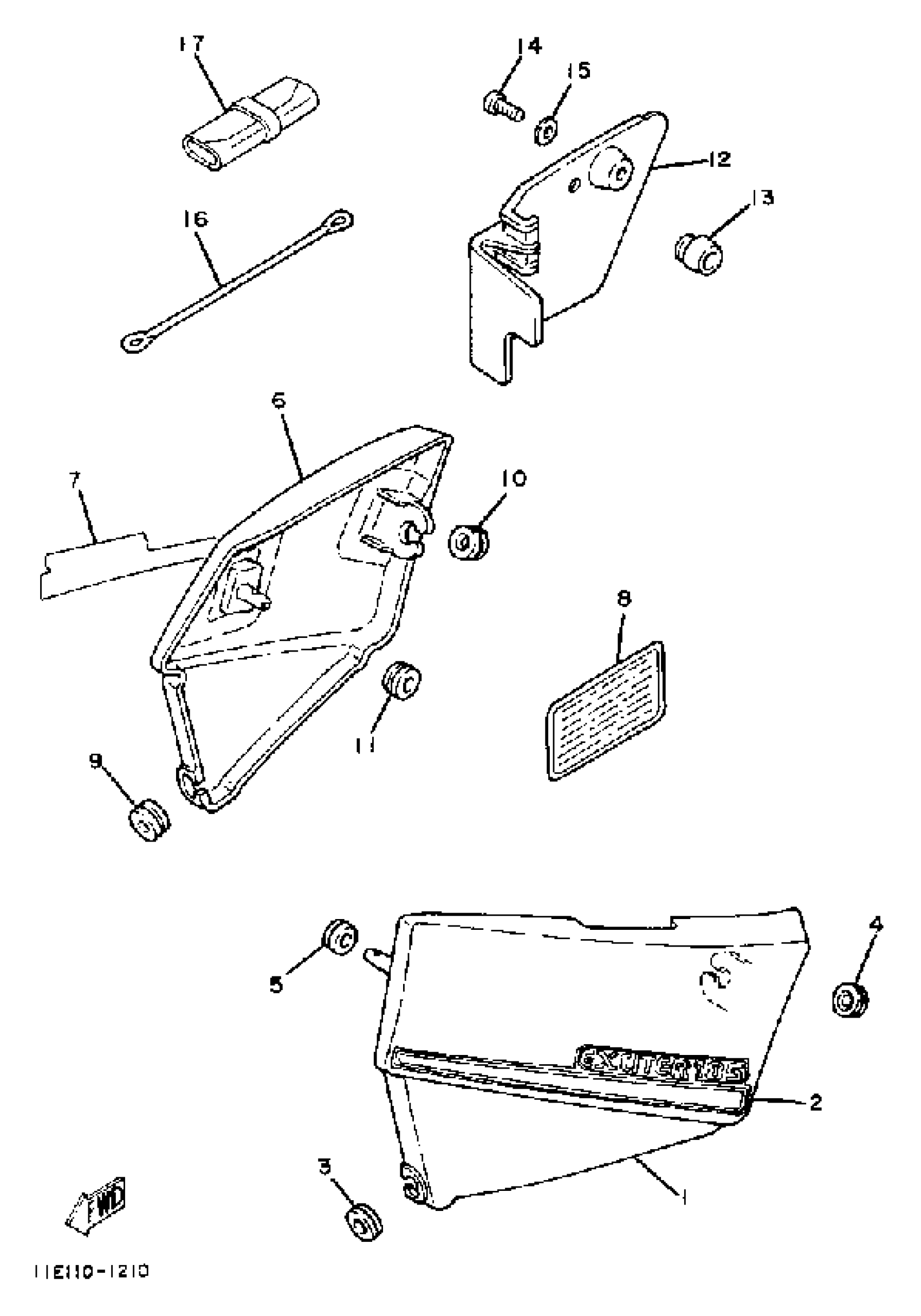

1982 Yamaha SR185J (SR185J) Side Cover Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

5H0-21711-00-G6

1
Out of stock

1

COVER, SIDE 1

5H0-21711-00-LG

1
Out of stock

2

EMBLEM 1

(11E-21781-00-00)

1
Out of stock

3

GROMMET (5H0)

90480-16301-00

1

$2.17

In stock

4

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

5

GROMMET (5G2)

90480-12296-00

1
Out of stock

6

COVER, SIDE 2

5H0-21721-00-G6

1
Out of stock

6

COVER, SIDE 2

5H0-21721-00-LG

1
Out of stock

7

EMBLEM 2

(11E-21782-00-00)

1
Out of stock

8

PLATE, SPEC

(11E-21683-00-00)

1
Out of stock

9

GROMMET (5H0)

90480-16301-00

1

$2.17

In stock

10

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

11

GROMMET (5G2)

90480-12296-00

1
Out of stock

12

LID

5H0-28185-00-00

1
Out of stock

13

PAD, BATTERY

5H0-82121-00-00

1
Out of stock

14

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

15

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

16

BAND, TOOL

256-21376-00-00

—
Out of stock

17

TOOL KIT

36X-W2810-00-00

—

$88.60

In stock
