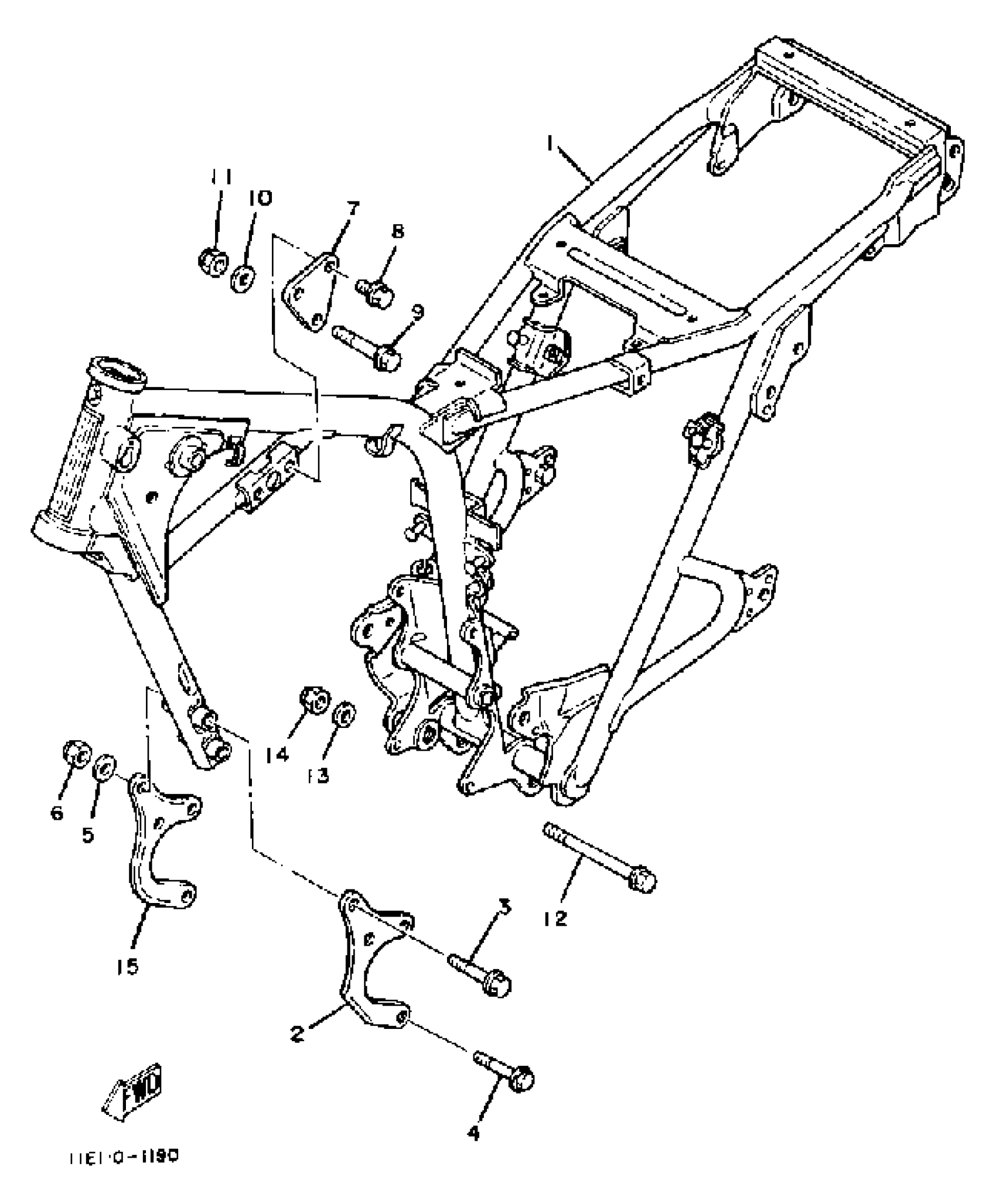

Yamaha SR185J (SR185J) 1982 FRAME Diagram

#

Description
Price

1

FRAME

(11E-21110-00-33)

Unavailable

2

STAY, ENGINE 3

(5H0-21316-00-00)

Unavailable

3

BOLT, FLANGE

95814-08065-00

$3.29

4

BOLT, FLANGE

95814-08065-00

$3.29

5

WASHER, PLATE (33N)

90201-094G1-00

$6.52

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$6.82

7

STAY, ENGINE 2

(5H0-21315-00-00)

Unavailable

8

BOLT, FLANGE

(95812-08014-00)

Unavailable

9

BOLT, FLANGE

95817-08050-00

$2.93

10

WASHER, PLATE (33N)

90201-094G1-00

$6.52

11

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$6.82

12

BOLT, FLANGE(2UJ)

95814-08110-00

$5.58

13

WASHER, PLATE (33N)

90201-094G1-00

$6.52

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$6.82

15

STAY, ENGINE 4

(5H0-21317-00-00)

Unavailable
