1982 Yamaha SR185J (SR185J) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1982 Yamaha SR185J (SR185J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

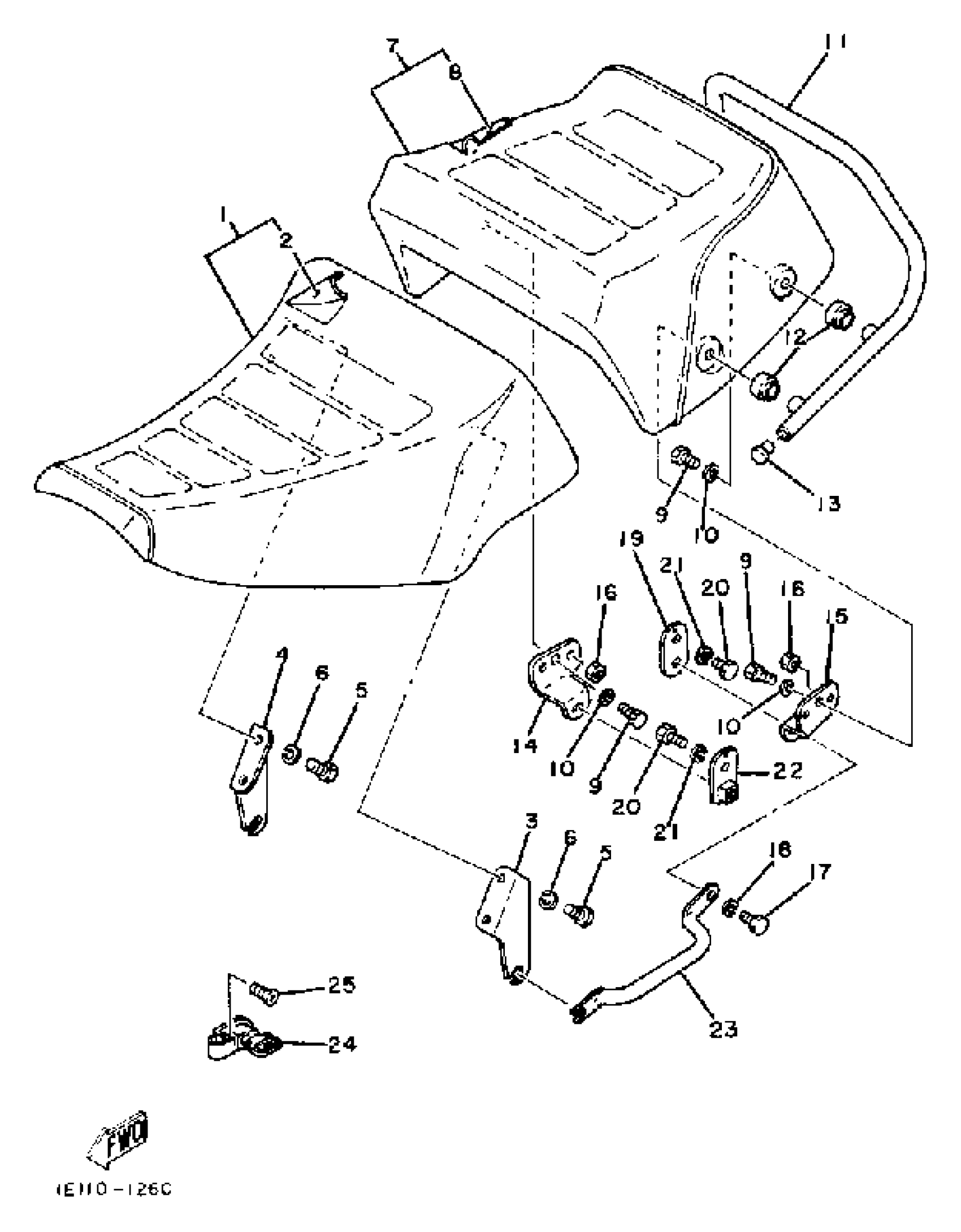

1982 Yamaha SR185J (SR185J) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

(11E-W2471-00-00)

1
Out of stock

2

COVER, DOUBLE SEAT

(11E-24731-00-00)

1
Out of stock

3

BRACKET, SEAT

(11E-24718-00-00)

1
Out of stock

4

BRACKET, SEAT

(11E-24728-00-00)

1
Out of stock

5

BOLT (682)

97095-06040-00

1

$2.36

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

TANDEM SEAT ASSEMBLY

(11E-W2477-00-00)

1
Out of stock

8

COVER, TANDEM SEAT

(11E-24751-00-00)

1
Out of stock

9

BOLT, HEXAGON

97017-08016-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

HANDLE, SEAT

11E-24773-00-00

1
Out of stock

12

COVER, SEAT HANDLE

1T4-24796-00-00

1

$3.78

In stock

13

PLUG

90338-15110-00

1
Out of stock

14

BRACKET, SEAT

(11E-24738-00-00)

1
Out of stock

15

BRACKET, SEAT

(11E-24748-00-00)

1
Out of stock

16

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

17

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

19

BRACKET, SEAT 1

(11E-21341-00-00)

1
Out of stock

20

BOLT, HEXAGON

97017-08016-00

1
Out of stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

22

BRACKET, SEAT 2

(11E-21342-00-00)

1
Out of stock

23

HANDLE, STANDING

(11E-21165-00-00)

1
Out of stock

24

HELMET HANGER ASSY

5H0-21308-01-00

—
Out of stock

25

SCREW, FLAT

98707-06014-00

—
Out of stock
