1982 Yamaha SR185J (SR185J) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1982 Yamaha SR185J (SR185J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

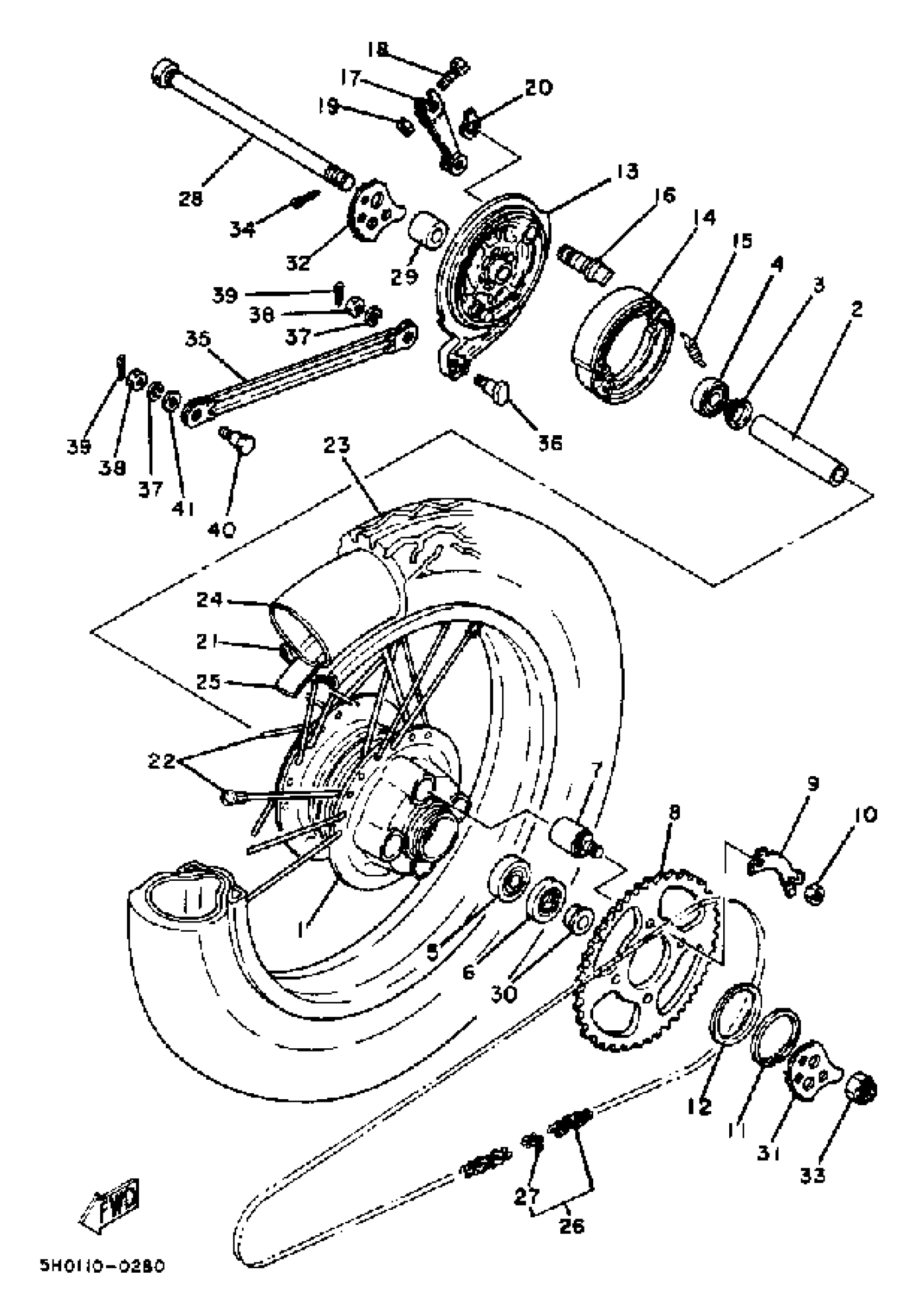

1982 Yamaha SR185J (SR185J) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

5H0-25311-00-38

1
Out of stock

2

SPACER

90560-15313-00

1
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1
Out of stock

5

BEARING

93306-30212-00

1
Out of stock

6

OIL SEAL (22X42X7)

93102-22014-00

1
Out of stock

7

DAMPER

2R7-25364-00-00

1
Out of stock

8

SPROCKET, DRIVN 44T

5H0-25444-50-00

1
Out of stock

9

WASHER

5H0-25412-00-00

1
Out of stock

10

NUT, FLANGE(3BM)

95704-10500-00

1
Out of stock

11

CIRCLIP (8L9)

93410-52061-00

1
Out of stock

12

WASHER, PLATE

90201-543E4-00

1
Out of stock

13

PLATE, BRAKE SHOE

5H0-25321-00-38

1
Out of stock

14

BRAKE SHOE KIT

4BE-W253E-00-00

1
Out of stock

15

SPRING, TENSION

90506-15260-00

1
Out of stock

16

CAMSHAFT

4GL-25351-00-00

—
Out of stock

17

LEVER, CAMSHAFT

5H0-25355-00-00

—
Out of stock

18

BOLT, HEXAGON (538)

90101-06278-00

—
Out of stock

19

NUT, HEXAGON

95380-06600-00

1
Out of stock

20

PLATE

3Y6-2533A-01-00

—
Out of stock

21

RIM 1.85X16

(94418-16289-00)

1
Out of stock

22

SPOKE SET, REAR

5H0-25304-00-00

1
Out of stock

23

350-16 4PR Y967

94135-16456-00

1
Out of stock

23

350-16 4PR Y967

94135-16456-00

1
Out of stock

24

TUBE

94232-16166-00

1
Out of stock

24

TUBE

94232-16166-00

1
Out of stock

25

BAND, RIM

94330-16058-00

—
Out of stock

25

BAND, RIM

94330-16058-00

—
Out of stock

26

CHAIN

9Y582-51117-00

—
Out of stock

27

JOINT, CHAIN

94682-51001-00

—
Out of stock

28

AXLE, WHEEL

3MW-25381-00-00

1
Out of stock

29

COLLAR

90387-154E0-00

1
Out of stock

30

COLLAR

90387-154E1-00

1
Out of stock

31

PULLER, CHAIN 1

5H0-25388-00-00

—
Out of stock

32

PULLER, CHAIN 2

5MP-25389-00-00

—
Out of stock

33

NUT, CASTLE(2UJ)

90171-14056-00

—
Out of stock

34

PIN, COTTER

91490-30030-00

—
Out of stock

35

BAR, TENSION

451-25371-01-00

1
Out of stock

36

BOLT

90109-08620-00

1
Out of stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

38

. NUT

95380-08700-00

1
Out of stock

39

PIN, COTTER

91490-20025-00

—
Out of stock

40

BOLT (183-25378-00)

90109-08368-00

—
Out of stock

41

.. WASHER, PLATE

92990-08600-00

1
Out of stock
