1982 Yamaha SR185J (SR185J) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1982 Yamaha SR185J (SR185J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

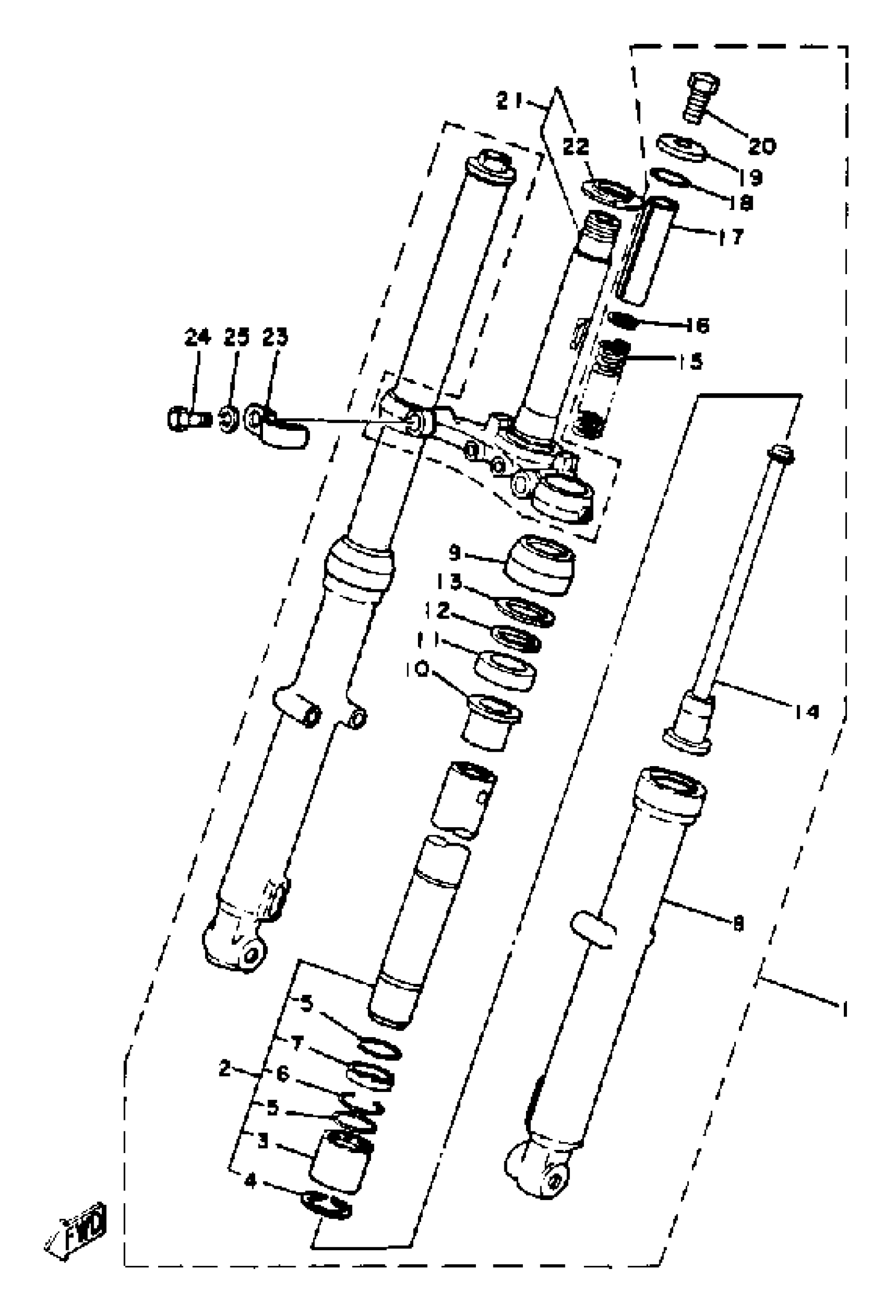

1982 Yamaha SR185J (SR185J) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

5H0-23102-00-00

1
Out of stock

2

INNER TUBE 1

99999-02298-00

1
Out of stock

3

. FREE-PSTN, FRT FORKFRONT FORK

5H0-23189-00-00

1
Out of stock

4

. CIRCLIP, OUTER

93440-27091-00

1
Out of stock

5

. CIRCLIP, OUTER

93440-28092-00

1
Out of stock

6

CIRCLIP, OUTER

(93440-29094-00)

1
Out of stock

7

. COLLAR

5H0-23113-00-00

1
Out of stock

8

TUBE, OUTER 1

(5H0-23126-00-38)

1
Out of stock

9

SEAL, DUST

5H0-23144-00-00

—

$15.31

In stock

10

. METAL, SLIDE 1

5H0-23125-00-00

1
Out of stock

11

OIL SEAL (10W)

93110-30013-00

—

$22.03

In stock

12

. WASHER, OIL SEAL

5H0-23146-00-00

1
Out of stock

13

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

14

CYLINDER, FRTFRK

(5H0-23170-00-00)

1
Out of stock

15

SPRING, FRONT FORK

(5H0-23141-00-00)

1
Out of stock

16

WASHER, PLATE

(90201-133E5-00)

1
Out of stock

17

SPACER

(5H0-23118-00-00)

1
Out of stock

18

. O-RING

93210-10486-00

1
Out of stock

19

. WASHER, PLATE

90201-103E6-00

1
Out of stock

20

BOLT

90101-10513-00

1
Out of stock

21

UNDER BRACKET

(5H0-23340-00-R4)

1
Out of stock

22

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

23

HOLDER, CABLE 1

(5H0-23318-00-00)

1
Out of stock

24

BOLT(N02)

97070-10035-00

—

$11.38

In stock

25

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock
