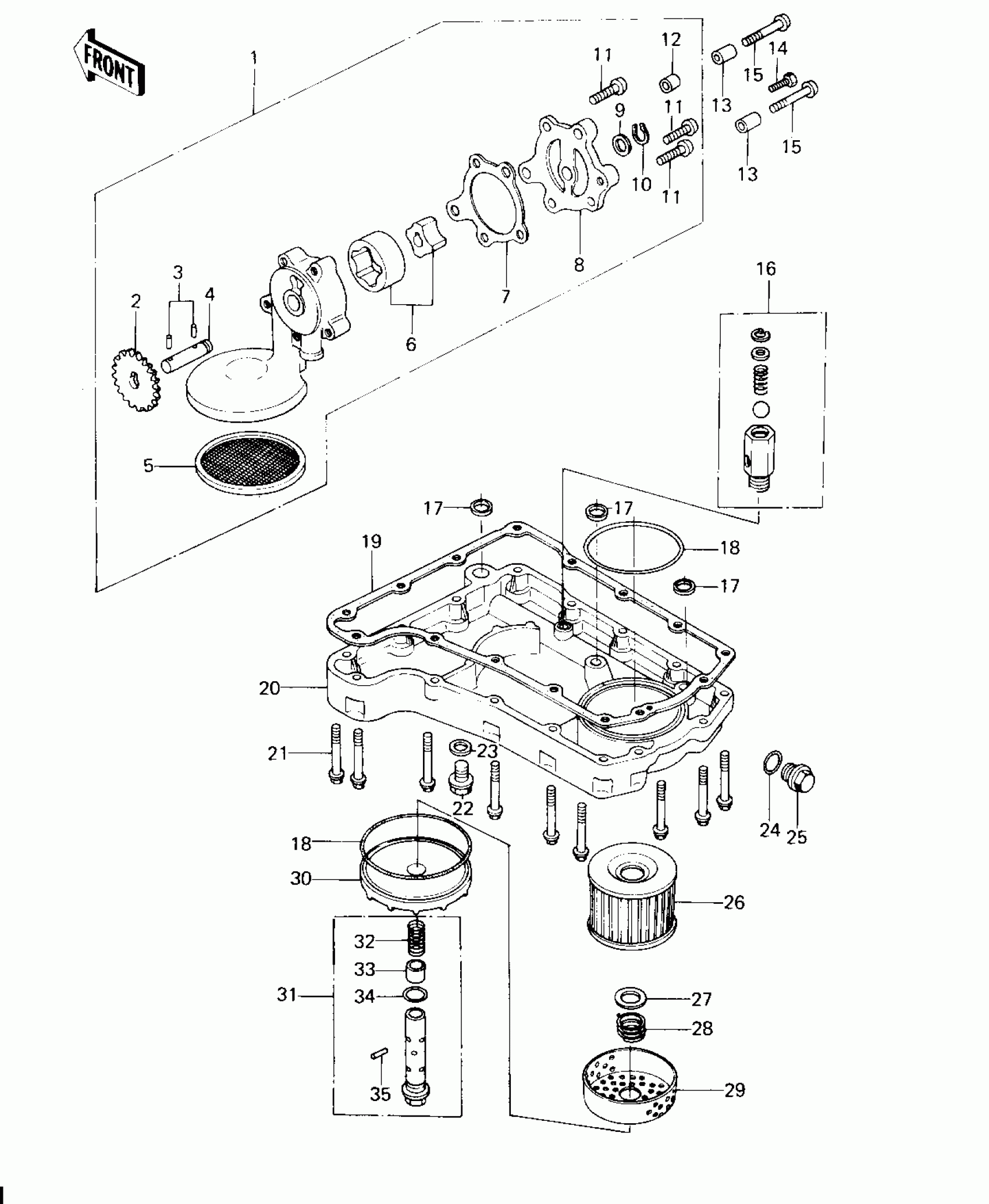

Kawasaki SR OIL PUMP/OIL FILTER/OIL PAN Diagram

#

Description
Price

1

PUMP-ASSY-OIL

16082-064

Unavailable

2

GEAR,OIL PUMP,57T

16085-025

Unavailable

3

PIN,DOWEL,4X12.8

92042-041

$5.71

4

SHAFT,OIL PUMP

16086-004

Unavailable

5

FILTER,OIL PUMP

16111-004

$45.22

6

ROTOR-PUMP

16154-003

$89.99

7

GASKET,OIL PUMP COVER

16145-004

$2.66

8

COVER-PUMP

16142-005

$39.24

9

WASHER,11.2X15X1

92022-311

$3.53

10

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

11

SCREW PAN HEAD 6X22

220B0622

Unavailable

12

PIN,DOWEL,8X10

92043-1302

$0.84

13

PIN,DOWEL,8X28

92042-050

$3.85

14

BOLT,FLANGED,6X45

92001-165

$3.98

15

SCREW-CSK-CROS,6X50

221B0650

Unavailable

16

VALVE-ASSY-RELIEF

16130-1001

$41.95

17

RING-O,19.5MM

92055-077

$4.47

18

O RING,90MM

671B2590

$7.54

19

GASKET,OIL PAN

11009-1983

$31.19

20

PAN-OIL

49034-5011

$159.94

21

BOLT,FLANGED,6X25

130G0625

Unavailable

22

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

23

GASKET,12X22X2

92065-097

$0.66

24

RING-O,20X2

92055-1146

$6.55

25

PLUG,18X9

92066-066

$8.34

26

ELEMENT-OIL FILTER

16099-003

$9.28

27

WASHER,20.5X30X1

92022-1012

$3.32

28

SPRING,OIL FILTER

92081-1018

$3.54

29

PLATE,OIL FILTER

13169-1110

$7.49

30

COVER,OIL FILTER

16101-004

$39.50

31

VALVE,OIL FILTER

16126-1108

$37.32

32

SPRING

92081-133

Unavailable

33

PISTON

92136-001

Unavailable

34

O RING,16MM

670B2016

$1.04

35

PIN,SPRING,2X20

92043-111

$5.46
