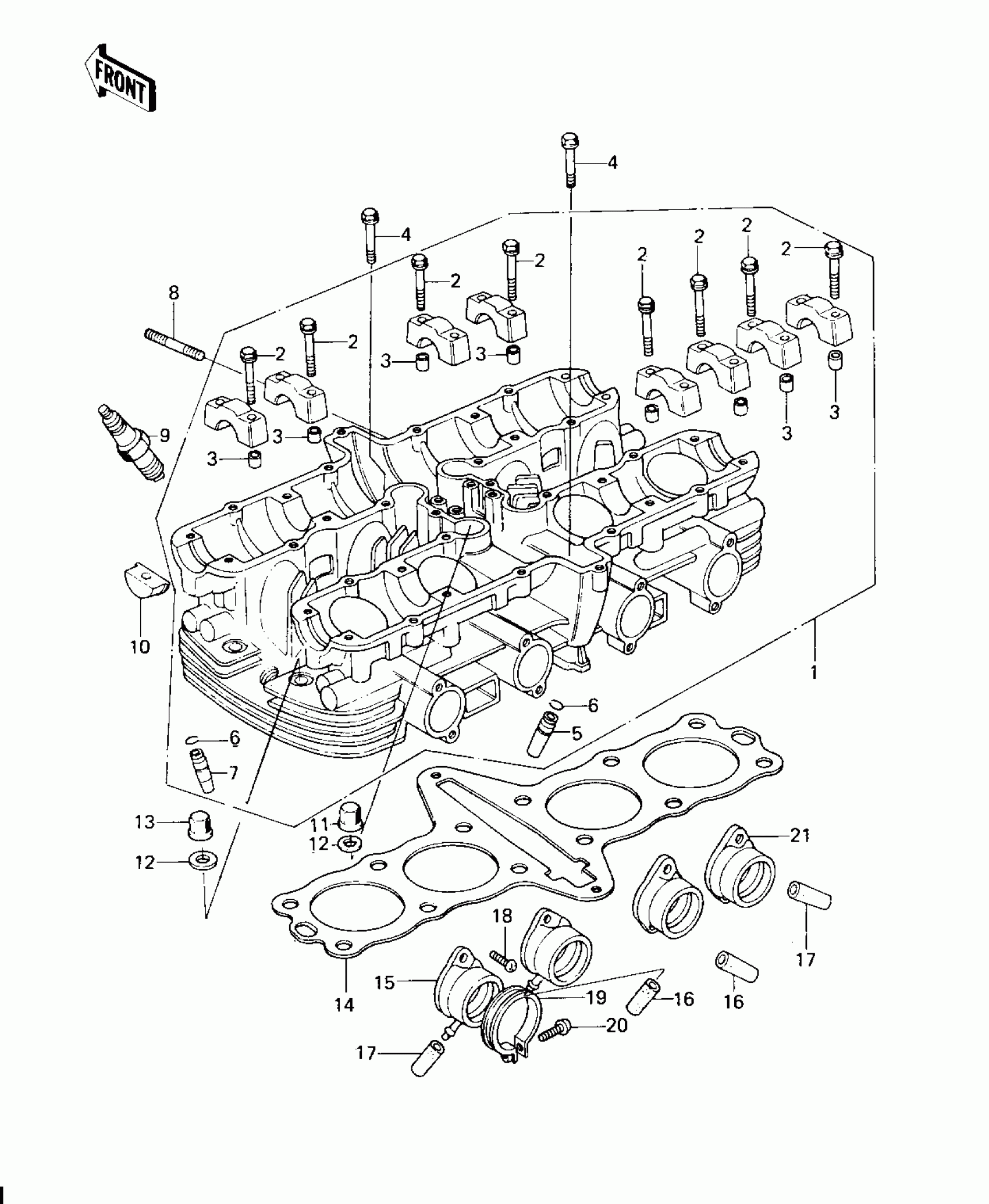

Kawasaki SR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD,BARREL

11002-028-2H

Unavailable

1

HEAD ASSY,CYLINDER

11002-1014

Unavailable

2

BOLT,HEX HEAD,6X38

92003-206

$8.25

3

PIN,DOWEL,6.3X8X14

92042-007

$5.70

4

BOLT,6X43

92002-1881

$7.24

5

GUIDE-VALVE,INTAKE

12013-009

$27.29

6

RING-SNAP,VALVE GUIDE

92036-023

$1.49

7

GUIDE-VALVE,EXHAUST

49002-1002

$24.01

8

STUD,6X27

92004-066

$5.17

9

SPARK PLUG B7ES

B7ES

$3.59

10

PLUG,CAMSHAFT,11.35X13.5

92066-1111

$12.21

11

NUT,FLANGED,10MM

92015-1415

$4.69

11

NUT,FLANGED CAP,10MM

92015-076

$13.08

12

WASHER-PLAIN,10MM

411B1000

Unavailable

13

NUT,FLANGED CAP,10MM

92015-076

$13.08

14

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

14

GASKET-HEAD,CYLINDER

11004-1107

Unavailable

15

HOLDER,CARB,L.H.

16065-046

$80.90

16

PLUG,12X25

92068-006

$4.26

18

SCREW PAN HEAD 6X18

220B0618

$2.74

19

CLAMP,CARBURETOR HLDR

92037-178

Unavailable

20

SCREW-PAN-CROS,5X25

220B0525

$3.05

21

HOLDER,CARB,R.H

16065-047

$80.90
