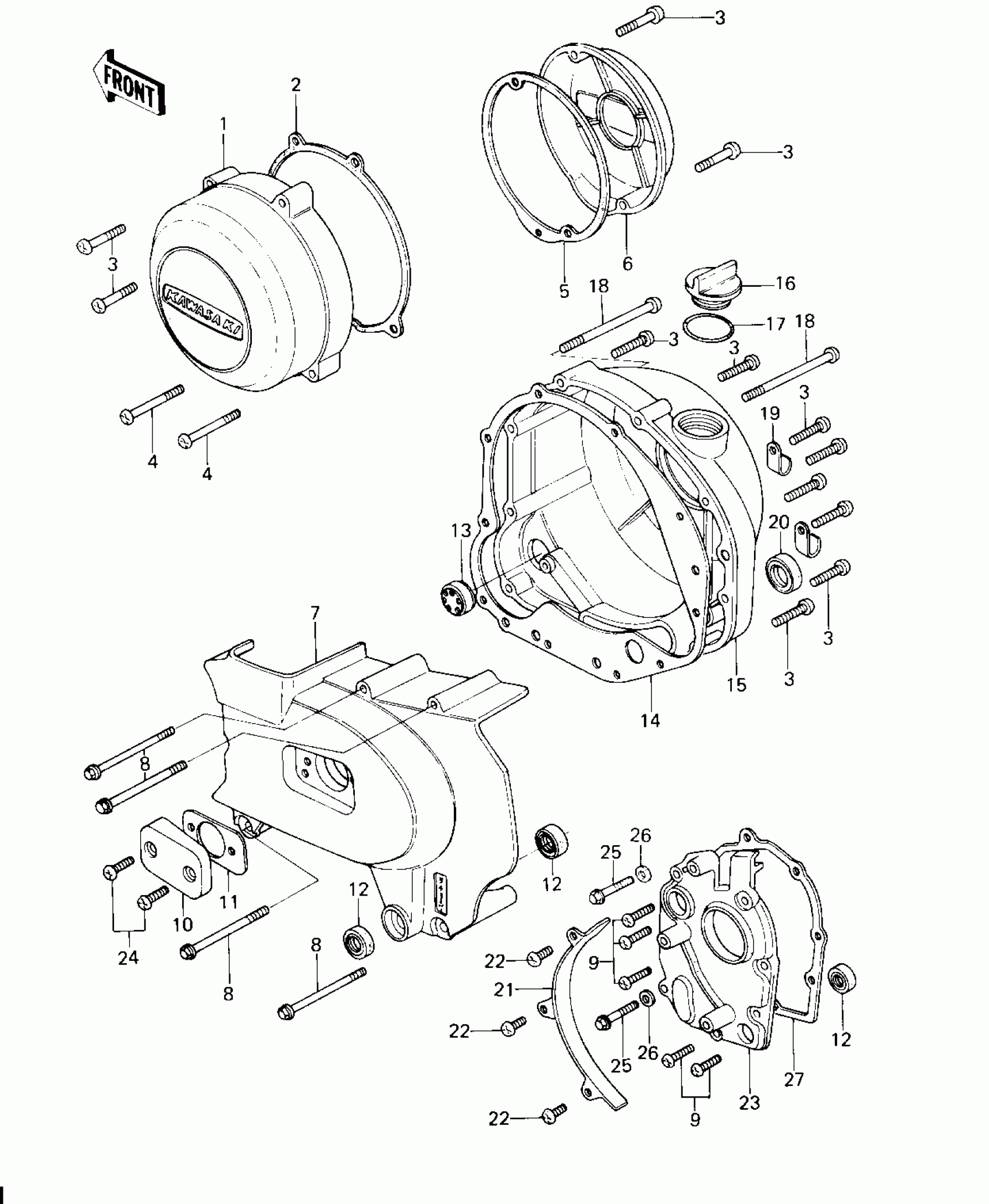

Kawasaki SR ENGINE COVERS Diagram

#

Description
Price

1

COVER,GENERATOR,BUFF

14031-1028

Unavailable

2

GASKET,GENERATOR COVER

11009-1987

$11.80

3

SCREW PAN HEAD 6X30

220B0630

$2.74

4

SCREW PAN HEAD 6X40

220B0640

Unavailable

5

GASKET,PULSING COIL CAP

11060-1053

$8.12

6

CAP,BREAKER POINT,BU

11012-1035

Unavailable

7

COVER,ENG SPROCKT,BUF

14026-035-80

Unavailable

8

BOLT-FLANGED,6X70

130G0670

Unavailable

9

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.36

10

COVER,CLUTCH ADJUSTNG

14028-006-80

Unavailable

11

GASKET,CLUTCH ADJ CAP

14049-004

Unavailable

12

SEAL-OIL,TB13225.5

92051-005

$7.74

13

GAUGE,OIL LEVEL

52015-004

$48.05

14

GASKET,R.H.ENG COVER

14046-035

$25.80

15

COVER,R.H.ENG,BUFF FN

14032-117-80

Unavailable

16

CAP-OIL FILLER

16115-013

$18.03

17

RING-O,31.5X2.6

92055-049

$4.31

18

SCREW PAN HEAD 6X80

220B0680

Unavailable

19

CLAMP,WIRING HARNESS

21126-008

$4.73

20

SEAL-OIL,SB20285

92049-012

$10.89

21

GUIDE-CHAIN

12053-1006

$10.97

22

BOLT-UPSET 6X14

112B0614

$1.49

23

COVER,MISSION

14024-011

Unavailable

24

SCREW PAN HEAD 6X18

220B0618

$2.74

25

BOLT,HEX HEAD,6X35

92001-164

$6.60

26

WASHER OIL PUMP BANJO

92022-077

$3.99

27

GASKET,TRANSMISSION COVER

11060-1056

Unavailable
