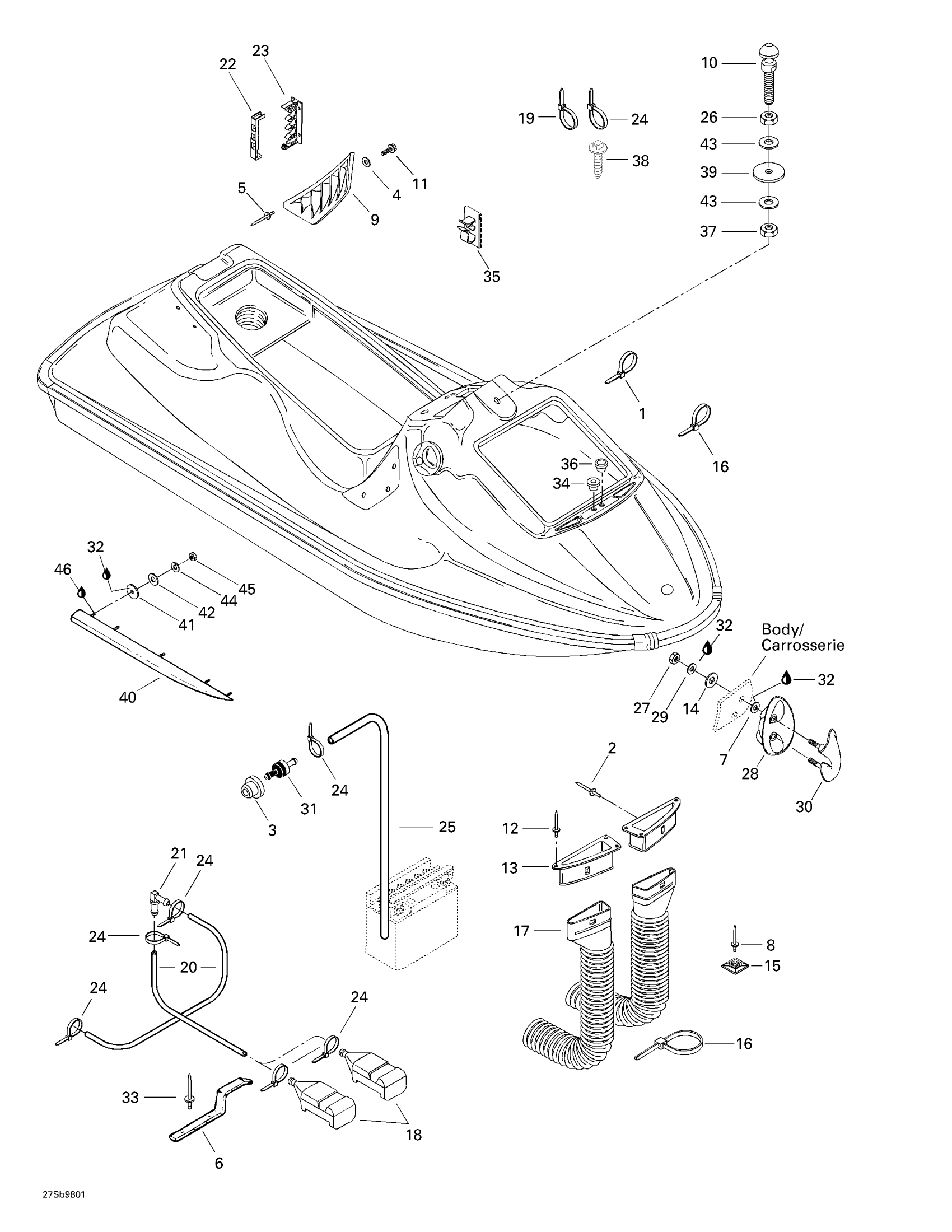

Sea-doo SPX, 5838/5839, 1998 Body Diagram

#

Description
Price

1

Pop Rivet 3/16"

293150013

$1.37

2

RH Rear Carpet (Black)

291000549

Unavailable

LH Rear Carpet (Black)

291000550

Unavailable

3

RH Stabilizer Plate

292000231

Unavailable

LH Stabilizer Plate

292000232

Unavailable

4

Pop Rivet 3/16"

293150005

$0.52

5

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

6

Flat Washer M8.5 x 18

293050001

$3.07

7

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

8

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

9

Bumper Corner (Black)

291000220

Unavailable

10

Rear Bumper (Black)

291000498

Unavailable

11

REAR BUMPER TRIM (BLACK) - Call your local BRP dealership

291000698

Unavailable

12

SIDE BUMPER TRIM (BLACK) - Call your local BRP dealership

291000697

Unavailable

13

Side Bumper (Black)

291000495

Unavailable

14

Rivet 1/8"

293150016

$0.40

15

Pop Rivet 3/16"

293150014

$1.09

16

REAR VENT HOSE - Call your local BRP dealership

291001103

Unavailable

17

Black, Snap Cap

293000014

$1.09

18

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

Drain Plug

292000187

$14.49

21

Hex. Nut M8

232081600

$1.47

22

Lock Washer 8 mm, Stainless

234181601

$0.55

23

Loctite 271, 10 ml

293800005

$26.99

24

Bumper Plug, Black

291000339

$2.99

25

Finition Plate

291000544

Unavailable

26

SCREW-PLASTITE PAN HD.PH - Call your local BRP dealership

211000059

Unavailable

27

Vent Hose Adaptor

291001105

Unavailable

28

Sound Damping

291000400

Unavailable

29

Grab Handle (Black)

269000462

Unavailable

30

Flat Washer 8 mm, Stainless

234082600

$2.43

31

SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership

215981660

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Tridon Clamp

293650054

$9.49

34

Nose Bumper (Black)

291000494

Unavailable

35

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

36

Hex. Jam Nut M10

232100600

$2.22

37

Flat Washer 10 mm, Stainless

234002600

$2.22

38

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

39

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

40

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

41

Hex. Nut M6

232061600

$1.15

42

Fuel Filter Support

275500113

Unavailable

43

Hex. Elastic Stop Nut M6

232561600

$1.15

44

Flat Washer M6, Stainless

234062600

$0.77

45

GASKET - Call your local BRP dealership

293250030

Unavailable

46

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

47

ATTACHE *BRACKET - Call your local BRP dealership

291000714

Unavailable
