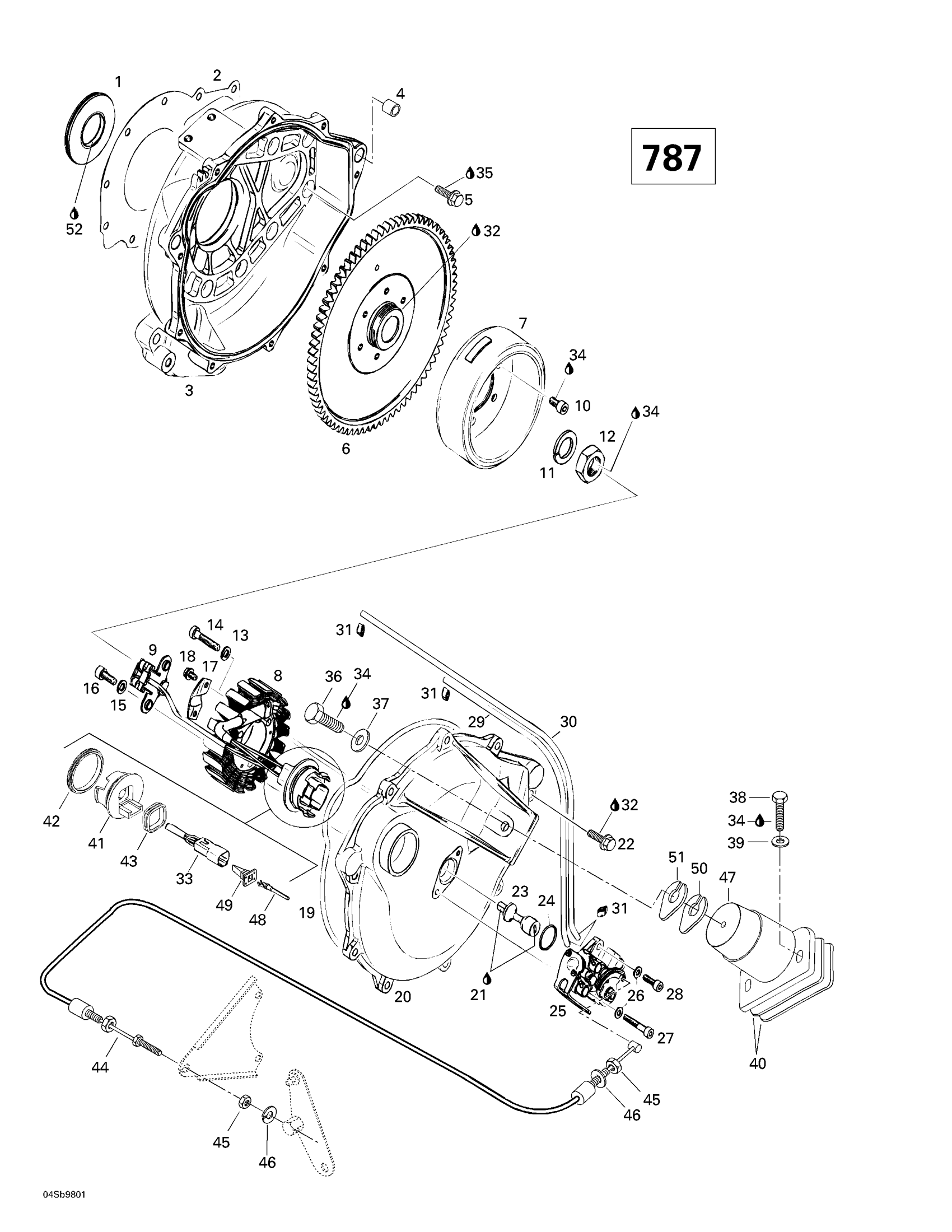

Sea-doo SPX, 5838/5839, 1998 Magneto, Oil Pump (787) Diagram

#

Description
Price

1

Oil Seal This part replaces 290830749.

420830749

$18.54

2

Gasket

290931470

Unavailable

3

Ignition Housing (Silver) | Includes 3 - 4.

290810713

Unavailable

4

Dowel Tube

290229153

Unavailable

5

Hex. Screw M6 X 25

420240034

$1.90

6

Flywheel Hub

290966442

Unavailable

7

MAGNETO FLYWHEEL - Call your local BRP dealership

290886598

Unavailable

8

STATOR PLATE ASS'Y - Call your local BRP dealership

290886588

Unavailable

9

Sensor Ass'y

420966832

$184.99

10

Socket Head Screw M6 X 12

205061260

$1.58

11

Lock Washer 18 mm

290945757

Unavailable

12

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

13

Lock Washer

290445330

Unavailable

14

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 x 16

420241237

$2.22

17

Retainer Plate

290853080

Unavailable

18

Hex. Screw M5 x 8

215050848

Unavailable

19

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

20

Ignition Cover (Silver)

290810722

Unavailable

21

Dow Corning 111, 150 g

413707000

$59.99

22

Hex. Flange Screw M6 x 25

290240033

Unavailable

23

Shaft Oil Pump

290837392

Unavailable

24

O-RING - Call your local BRP dealership

293300018

Unavailable

25

PUMP-OIL ASSY. - Call your local BRP dealership This part replaces 290887333.

420887333

$234.99

26

Lock Washer

290845389

Unavailable

27

Socket Head Screw M5 x 30

290940883

Unavailable

28

Cylindrical Slotted Screw M5 x 16

215951660

Unavailable

29

Oil Hose 1500Mm Long

219704404

$17.26

30

Oil Hose 1500Mm Long

219704404

$17.26

31

Clamp

290256408

Unavailable

32

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

33

Male Terminal Housing, 6 Circuits

710001539

$19.99

34

Loctite 243, 10 ml

293800060

$21.49

35

Sealant Loctite 648

219703000

$45.99

36

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

37

Flat Washer 8 mm, Stainless

234082600

$2.43

38

Hex. Screw M8 X 40

207184060

$2.22

39

Stainless, Flat Washer 8 mm

234081600

$0.55

40

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

41

Adaptor

270000138

Unavailable

42

Gasket

293300033

Unavailable

43

Gasket

293200030

Unavailable

44

Injection Cable | Includes 44 - 46.

270000384

Unavailable

45

Hex. Nut M6

232160600

$1.15

46

Lock Washer Helical M6

234161601

$1.15

47

Rubber Mount

270000353

Unavailable

48

Male Terminal

278000631

$4.39

49

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

50

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

51

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

52

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable

53

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886392

Unavailable
