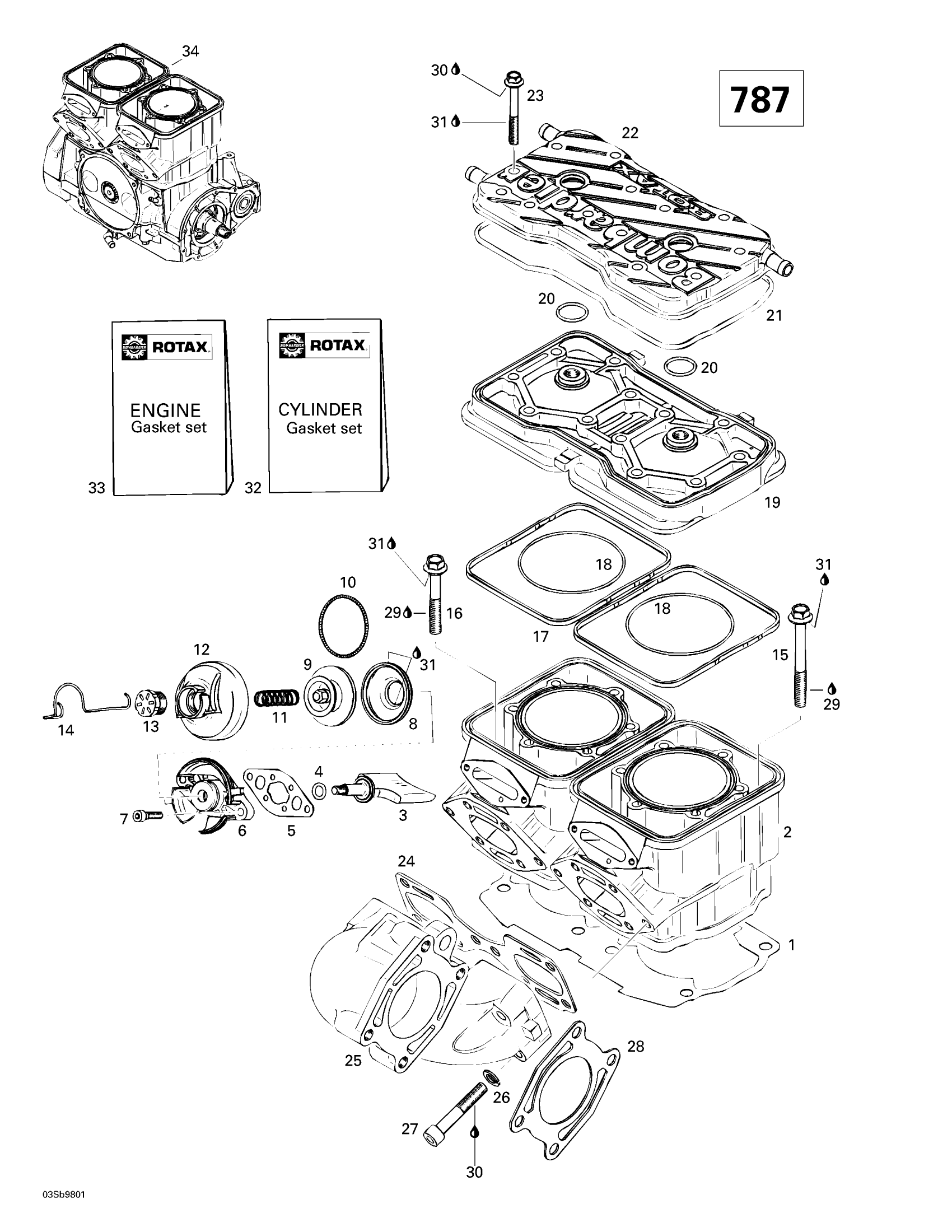

Sea-doo SPX, 5838/5839, 1998 Cylinder, Exhaust Manifold (787) Diagram

#

Description
Price

1

Gasket Cylinder 0.8 mm

290931724

Unavailable

GASKET CYLINDER 0.6 MM - Call your local BRP dealership

290931723

Unavailable

Gasket Cylinder 0.5 mm

290931722

Unavailable

Gasket Cylinder 0.4 mm

290931721

Unavailable

Gasket Cylinder 0.3 mm

290931720

Unavailable

2

CYLINDER WITH SLEEVE (SILVER) - Call your local BRP dealership

290923503

Unavailable

3

Exhaust Valve This part replaces 290854358.

420854358

$158.99

4

O-Ring

420430110

$4.44

5

Joint Etanche *Gasket This part replaces 290931540.

420931540

$8.01

6

Valve Housing

290854360

Unavailable

7

Socket Head Screw M6 X 25

205062560

$1.69

8

Exhaust Bellows

420260723

$42.49

9

Exhaust Valve

290854445

Unavailable

10

Hose Spring This part replaces 420239048.

420939281

$7.41

11

Compression Spring

290939137

Unavailable

12

Valve Cover This part replaces 420911558.

420911559

$29.49

13

Adjuster Screw

420241221

$14.22

14

Spring Clip

290838082

Unavailable

15

Flange Screw M10 x 73,5

290941333

Unavailable

16

Hex. Flange Screw M10 x 105

290941903

Unavailable

17

RUBBER RING - Call your local BRP dealership

290931420

Unavailable

18

O-Ring | Included in gasket kit

420931410

$3.39

19

HEAD CYLINDER - Call your local BRP dealership This part replaces 290923302.

420923308

Unavailable

20

O-Ring

420430782

$5.39

21

O-RING - Call your local BRP dealership

290831550

Unavailable

22

Cylinder Head Cover (Silver)

290923314

Unavailable

23

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

24

Gasket This part replaces 290931480.

420931481

$19.49

25

Exhaust Manifold

290979484

Unavailable

26

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

27

Allen Screw M10 x 60

215906060

Unavailable

28

Gasket

290931500

Unavailable

29

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Dow Corning 111, 150 g

413707000

$59.99

32

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable

33

ENGINE GASKET SET - Call your local BRP dealership

420886390

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable
