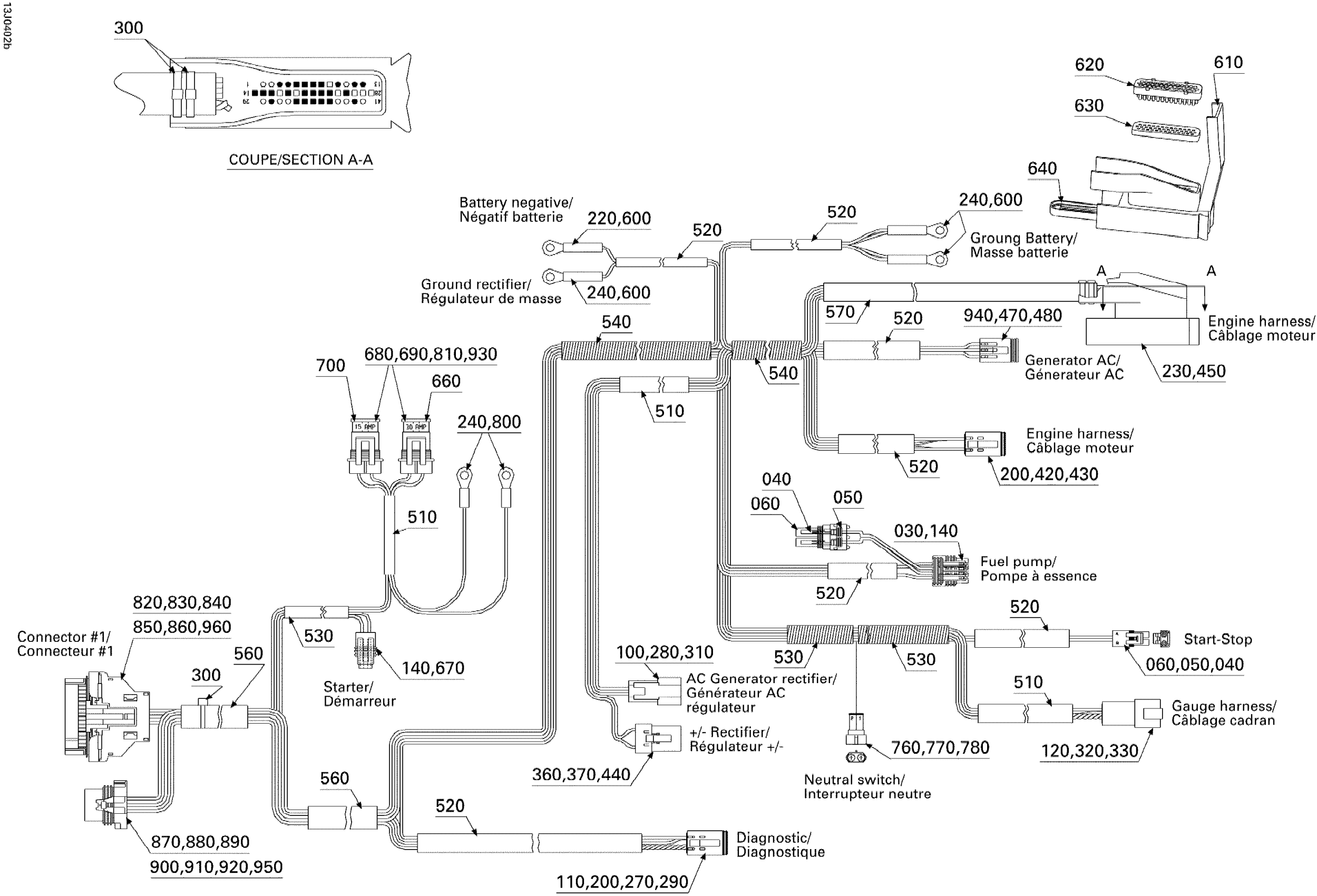

Sea-doo Sportster 4-TEC, 2004 Electrical Harness Diagram
#
1
ENGINE HARNESS ASS'Y - Call your local BRP dealership | Includes 001 to 970
204470773
Unavailable
30
MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
278001308
Unavailable
40
Female Terminal
278000223
Unavailable
50
Wire Seal
278000218
Unavailable
60
Male Connector, 2 Circuits
278000220
Unavailable
100
Male Terminal
515175823
Unavailable
110
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
120
Male Terminal
278000631
Unavailable
140
Female Terminal
278001114
Unavailable
200
Female Terminal
278000632
Unavailable
220
Open Barrel Terminal
278001392
Unavailable
230
MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership
278001751
Unavailable
240
Open Barrel Terminal
278001392
Unavailable
270
Sealing Cap
293000052
Unavailable
280
Male Lock, 3 Circuits
409207600
Unavailable
290
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
300
Tie Wrap 142 mm
293750002
Unavailable
310
Male Housing
278002378
Unavailable
320
MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership
278001742
Unavailable
330
SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership
278001744
Unavailable
360
Female Terminal Housing, 2 Circuits
278001673
Unavailable
370
Female Lock, 2 Circuits
278001671
Unavailable
420
Male Connector, 4 Circuits | CE
278000739
Unavailable
430
Male Lock, 4 Circuits | CE
278000738
Unavailable
440
Female Terminal
515175567
Unavailable
450
FEMALE TERMINAL - Call your local BRP dealership
278001750
Unavailable
470
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
Unavailable
480
Female Lock
409207200
Unavailable
510
Not Available As Spare Part - Friction Washer
Unavailable
520
Not Available As Spare Part - Friction Washer
Unavailable
530
Not Available As Spare Part - Friction Washer
Unavailable
540
Not Available As Spare Part - Friction Washer
Unavailable
550
Not Available As Spare Part - Friction Washer
Unavailable
560
Not Available As Spare Part - Friction Washer
Unavailable
570
Not Available As Spare Part - Friction Washer
Unavailable
600
Not Available As Spare Part - Friction Washer
Unavailable
610
Not Available As Spare Part - Friction Washer
Unavailable
620
Not Available As Spare Part - Friction Washer
Unavailable
630
Not Available As Spare Part - Friction Washer
Unavailable
640
Not Available As Spare Part - Friction Washer
Unavailable
660
Fuse, 20 Amperes
409003900
Unavailable
670
Male Connector, 2 Circuits
278001113
Unavailable
680
Fuse Holder
278001325
Unavailable
690
Female Terminal
710000357
Unavailable
700
Fuse, 15 Amperes
278000343
Unavailable
760
Male Terminal Housing, 2 Circuits
409209400
Unavailable
770
Male Terminal | Europe Models
409012900
Unavailable
780
Not Available As Spare Part - Friction Washer
Unavailable
800
Not Available As Spare Part - Friction Washer
Unavailable
810
Fuse Holder Cap
278001326
Unavailable
820
HOUSING - Call your local BRP dealership
710000413
Unavailable
830
SEAL WIRE - Call your local BRP dealership
710000394
Unavailable
840
Not Available As Spare Part - Friction Washer
Unavailable
850
FEMALE HOUSING - Call your local BRP dealership
710000395
Unavailable
860
Female Terminal
515175806
Unavailable
870
Male Connector, 7 Circuits
515175051
Unavailable
880
Secondary Lock
515175056
Unavailable
890
Lock
515176057
Unavailable
900
Wire Seal
278000218
Unavailable
910
Not Available As Spare Part - Friction Washer
Unavailable
920
WIRE SEAL - Call your local BRP dealership
278001505
Unavailable
930
Cushion
278000805
Unavailable
940
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
950
Not Available As Spare Part - Friction Washer
Unavailable
960
Plug
515175812
Unavailable
