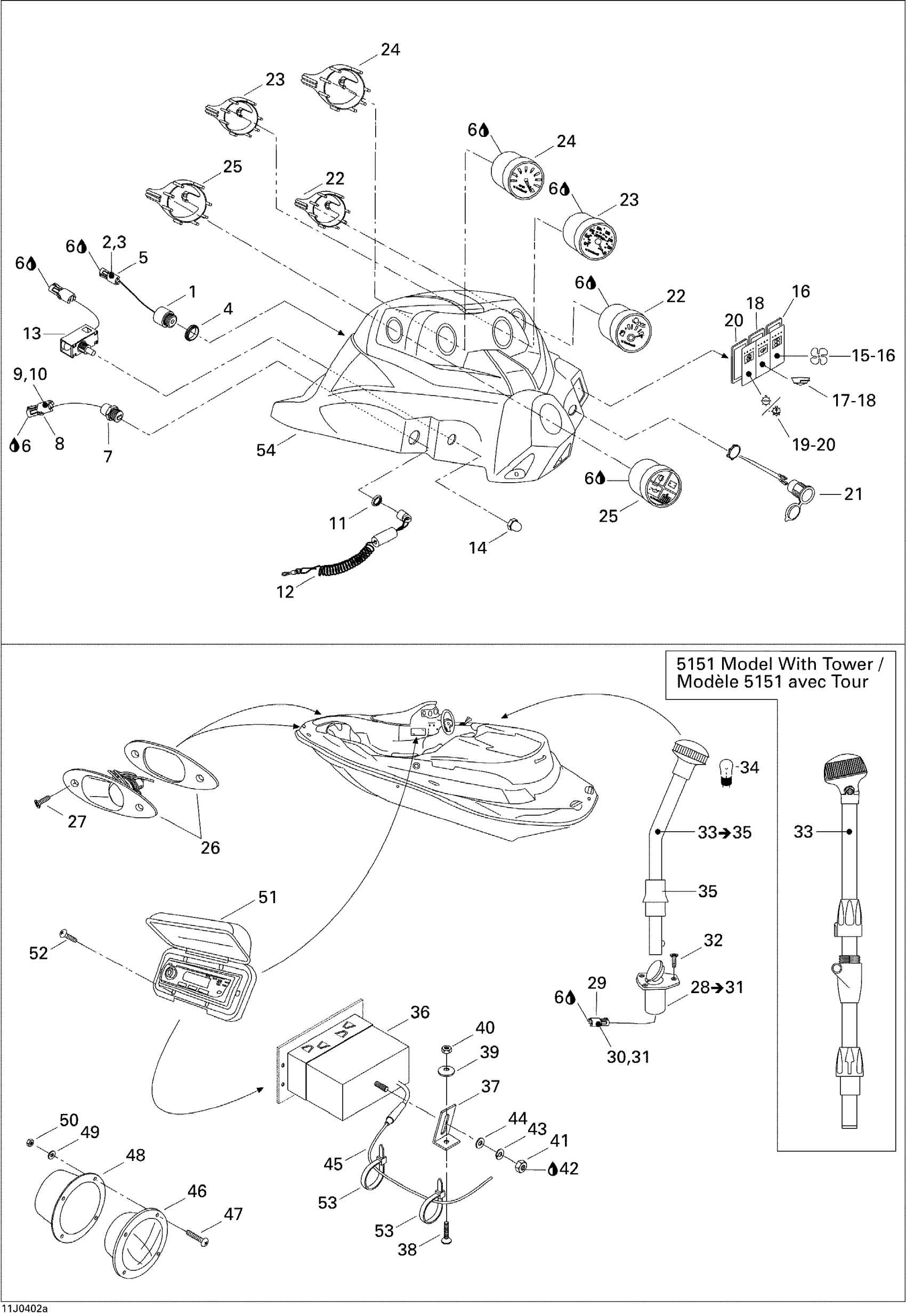

Sea-doo Sportster 4-TEC, 2004 Electrical Accessories 1 Diagram
#
1
BUZZER - Call your local BRP dealership
278001586
Unavailable
2
Male Terminal | XT Models
278000222
Unavailable
3
Wire Seal
278000218
Unavailable
4
Buzzer Nut
278000707
Unavailable
5
Female Housing, 2 Circuits
278000217
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
Unavailable
8
Male Housing, 3 Circuits
278000273
Unavailable
9
Wire Seal
278000218
Unavailable
10
Female Terminal
278000223
Unavailable
11
Safety Nut (DESS Switch)
278002963
Unavailable
12
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
Unavailable
13
IGNITION SWITCH - Call your local BRP dealership
278000621
Unavailable
14
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
15
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
16
Gasket
204470132
Unavailable
17
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
18
Gasket
204470132
Unavailable
19
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
20
Gasket
204470132
Unavailable
21
DC Outlet
710001248
Unavailable
22
Fuel Gauge
204470775
Unavailable
23
Speed Gauge
204470776
Unavailable
24
Tachometer
204470777
Unavailable
25
ENGINE WARNING GAUGE - Call your local BRP dealership
204470778
Unavailable
26
LATERAL LIGHT KIT - Call your local BRP dealership
204470908
Unavailable
27
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
28
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
29
Female Housing, 2 Circuits
278000217
Unavailable
30
Male Terminal | XT Models
278000222
Unavailable
31
Wire Seal
278000218
Unavailable
32
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
33
Rear Light Pole | Models Without Tower, Includes 39 to 41
204470792
Unavailable
33
Rear Light Pole | Models With Tower
204470842
Unavailable
34
Bulb
204470053
Unavailable
35
COLLAR - Call your local BRP dealership
204470350
Unavailable
36
Compact Disk Radio
204470869
Unavailable
37
RADIO SUPPORT - Call your local BRP dealership
204470837
Unavailable
38
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
39
Flat Washer M6, Stainless
234062600
Unavailable
40
Hex. Elastic Stop Nut M6
232561600
Unavailable
41
Hex. Nut M5
232051600
Unavailable
42
Loctite 243, 10 ml
293800060
Unavailable
43
Helical Lock Washer M5
234151601
Unavailable
44
Flat Washer 5 mm, Stainless
234052600
Unavailable
45
Antenna
204470380
Unavailable
46
Black, Speaker
204470818
Unavailable
47
Phillips Screw M4 X 30
250000144
Unavailable
48
Speaker Protector
204470809
Unavailable
49
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
50
Elastic Stop Nut M4
232541600
Unavailable
51
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
52
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
53
Tie Wrap 94 mm | 4X4
293750001
Unavailable
54
Dash Ass'y
204470895
Unavailable
