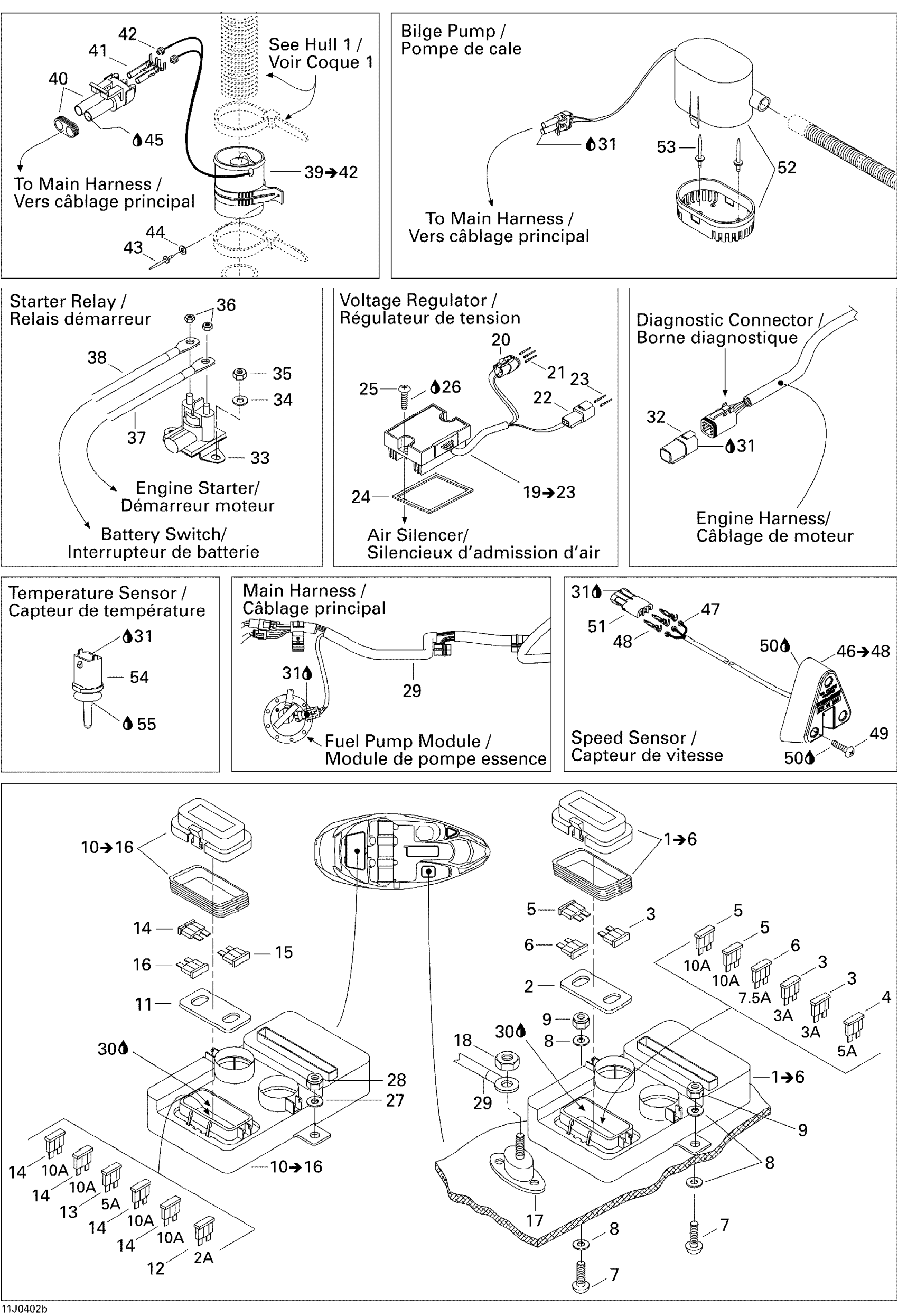

Sea-doo Sportster 4-TEC, 2004 Electrical Accessories 2 Diagram
#
1
SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6
204470771
Unavailable
2
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
3
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
4
Fuse, 5 Amperes | CE
278000344
Unavailable
5
Fuse, 10 Amperes | North America
278001197
Unavailable
6
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
7
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
8
Flat Washer M6, Stainless
234062600
Unavailable
9
Hex. Elastic Stop Nut M6
232561600
Unavailable
10
FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24
204470770
Unavailable
11
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
12
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
13
Fuse, 5 Amperes | CE
278000344
Unavailable
14
Fuse, 10 Amperes | North America
278001197
Unavailable
15
Fuse, 20 Amperes
403003900
Unavailable
16
Fuse, 30 Amperes
410917200
Unavailable
17
Ground Post
204470715
Unavailable
18
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
19
REGULATOR - Call your local BRP dealership | Includes 11 to 15
278001969
Unavailable
20
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
Unavailable
21
Female Terminal
278000632
Unavailable
22
Mâle Terminal Housing, 2 Circuits
278001674
Unavailable
23
Male Terminal
515175568
Unavailable
24
SEAL - Call your local BRP dealership
293250123
Unavailable
25
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
26
Loctite 271, 10 ml
293800005
Unavailable
27
Flat Washer M6, Stainless
234062600
Unavailable
28
Hex. Elastic Stop Nut M6
232561600
Unavailable
29
Main Harness
204470772
Unavailable
30
*(Ormd) *Deoxit Aerosol *
293550034
Unavailable
31
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
32
Diagnostic Connector
278002704
Unavailable
33
Starter Relay
278003012
Unavailable
34
Flat Washer M6, Stainless
234062600
Unavailable
35
Hex. Elastic Stop Nut M6
232561600
Unavailable
36
Hex. Elastic Stop Nut M6
232561600
Unavailable
37
RED CABLE - Call your local BRP dealership
204470798
Unavailable
38
RED CABLE - Call your local BRP dealership
204470799
Unavailable
39
Fan Ass'y | Includes 44 to 47
204470108
Unavailable
40
Male Connector, 2 Circuits
278000220
Unavailable
41
Female Terminal
278000223
Unavailable
42
Wire Seal
278000218
Unavailable
43
Pop Rivet 3/16"
293150008
Unavailable
44
Flat Washer 5 mm, Stainless
234052600
Unavailable
45
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
46
Speed Sensor
278001993
Unavailable
47
Wire Seal
710000048
Unavailable
48
Male Terminal | XT Models
278000222
Unavailable
49
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
50
Silicone Sealant 51388, 300 ml
296000309
Unavailable
51
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
52
Bilge Pump
204471431
Unavailable
53
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
54
Temperature Sensor
278002895
Unavailable
55
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
