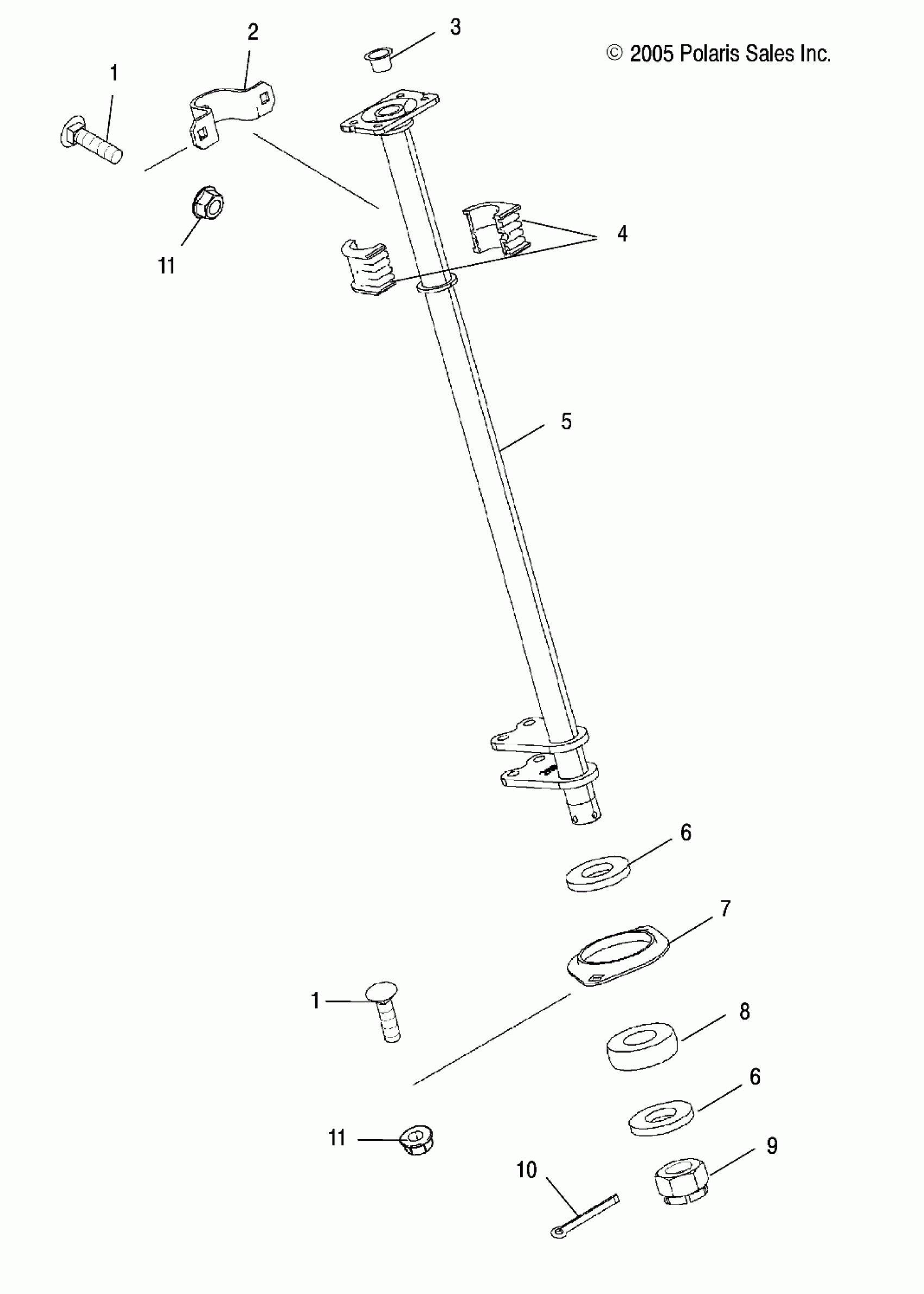

Polaris SPORTSMAN X2 - A06MN50AU STEERING POST - A06MN50AU/AW (4999204069920406C09) Diagram

#

Description
Price

1

BOLT

7517428

$2.38

1

BOLT

7517428

$2.38

2

Bracket, Upper, Bushing

5246732

$32.37

3

PLUG, STEERING POST

5435661

$4.84

4

Bushing, Upper

5433866

$6.35

5

Post, Steering, Black

1015571-067

Unavailable

6

Bushing

7556162

$3.97

6

Bushing

7556162

$3.97

7

Flangette

5222393

$20.22

8

Bearing

3514352

$31.75

9

Nut, Slotted, Hex

7547158

Unavailable

10

Pin, Cotter

7661633

Unavailable

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76
