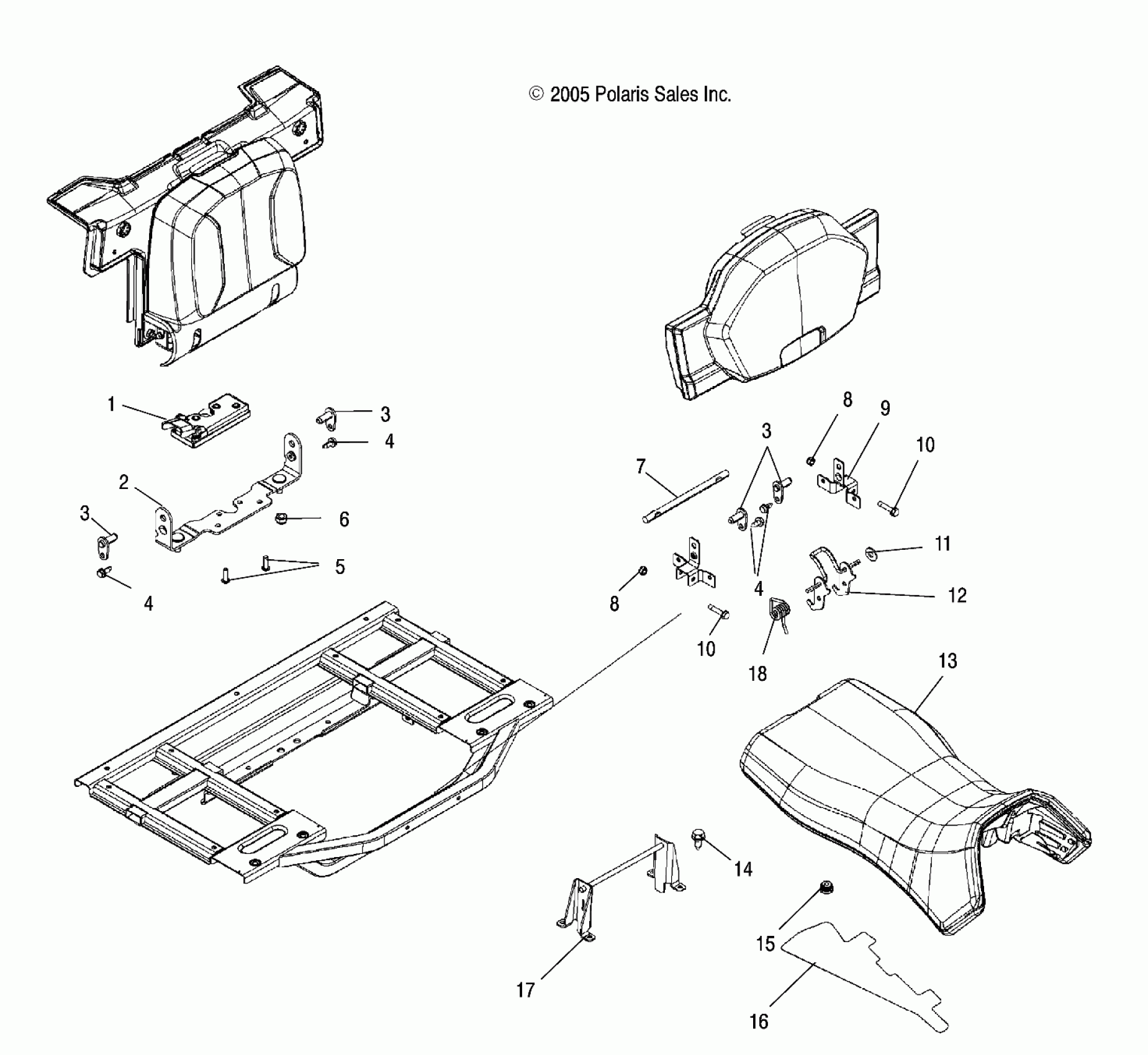

Polaris SPORTSMAN X2 - A06MN50AU SEATS - A06MN50AU/AW (4999204069920406A05) Diagram

#

Description
Price

1

LATCH-SEAT,PASS,BACK

7081325

$83.99

2

PIVOT, PASSENGER SEAT

1015414-067

Unavailable

3

WELD-PIN,PIVOT

1015413

$23.99

3

WELD-PIN,PIVOT

1015413

$23.99

3

WELD-PIN,PIVOT

1015413

$23.99

4

SCREW

7517386

$1.49

4

SCREW

7517386

$1.49

4

SCREW

7517386

$1.49

5

SCREW

7515177

$3.19

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

Rod, Seat

5135213

Unavailable

8

NUT

7542122

$1.49

8

NUT

7542122

$1.49

9

Bracket, Seat Rod, Upper

5249636-067

Unavailable

10

SCREW

7512130

$3.99

10

SCREW

7512130

$3.99

11

Spacer

7556091

$3.99

12

Weld Box, Lockout

1015398-067

$36.41

13

Asm., Seat, Operator, Black

2683862-070

Unavailable

13

Covering, Seat, Black

2683863-070

Unavailable

14

SCREW

7512232

$1.49

15

GROMMET

5412994

Unavailable

16

Foil, Seat Base

5813059

$5.59

17

Lockout, Passenger

1015355-067

Unavailable

18

Spring

7041370

$9.59
