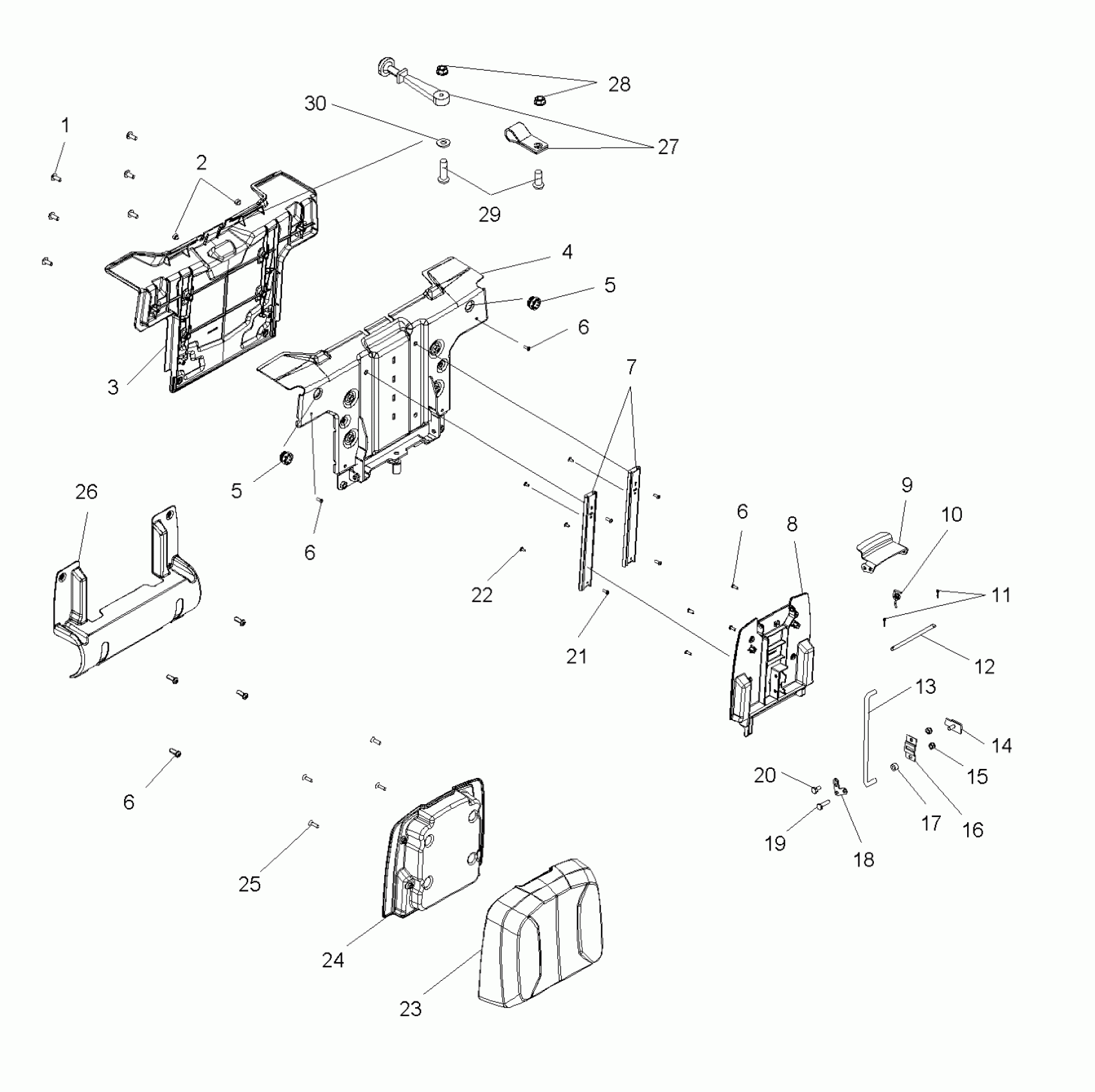

Polaris SPORTSMAN X2 - A06MN50AU SEAT BACK, PASSENGER - A06MN50AU/AW (4999204069920406A06) Diagram

#

Description
Price

1

SCREW

7518601

$4.79

2

BUMPER-RUBBER,1/2" OD

5413087

$2.39

3

BASE COVER, PASSENGER SEAT

5436531

$51.99

4

Support, Seat Back

1015397-067

$231.19

5

GROMMET

5412994

Unavailable

5

GROMMET

5412994

Unavailable

6

SCREW

7512076

$1.49

6

SCREW

7512076

$1.49

6

SCREW

7512076

$1.49

6

SCREW

7512076

$1.49

7

Slide Single, Ext.

7081335

Unavailable

8

BASE SLIDER, PASSENGER SEAT

5436532

$51.99

9

Plate, Handle, Seat

1015522

$15.67

10

SPRING-LATCH

7043219

$10.39

11

PIN

7661010

$1.49

12

ROD-PASSENGER SEAT

5135336

$51.99

13

ROD-HANDLE,PASS,BACK

5250162

$27.99

14

Slider, Latch

1015399

Unavailable

15

NUT

7542122

$1.49

16

PLATE RETAINER SLIDE

5249903

$7.99

17

SPACER

7556373

$3.19

18

PLATE-SLIDER,PIVOT

5250163

$6.39

19

SCR-SHLDR,5/16X3/8X1/4-20

7518615

$4.79

20

BOLT

7512102

$3.19

21

SCR-#8-32X.375",TORX,TRI-S

7518256

$2.39

22

Screw

7527815

$3.19

23

BUN, SEAT

5436149-070

$92.39

24

BASE-SEAT,TREK

5436150

$31.99

25

SCR-1/4-20X7/8,HX/SOC/FL/HD-Y

7517652

$4.79

26

COVER, LATCH

5436533-070

Unavailable

27

Strap, Hood Latch [If built after 3/06/06]

5410370

$24.27

27

Handle, Seat [If built before 3/06/06]

5813086

$27.99

28

Nut, Flange

7542153

$1.59

29

Screw [If built before 3/06/06]

7517685

$1.59

29

SCREW

7517230

$1.49

30

Washer [If built after 3/06/06]

7555935

$2.39
