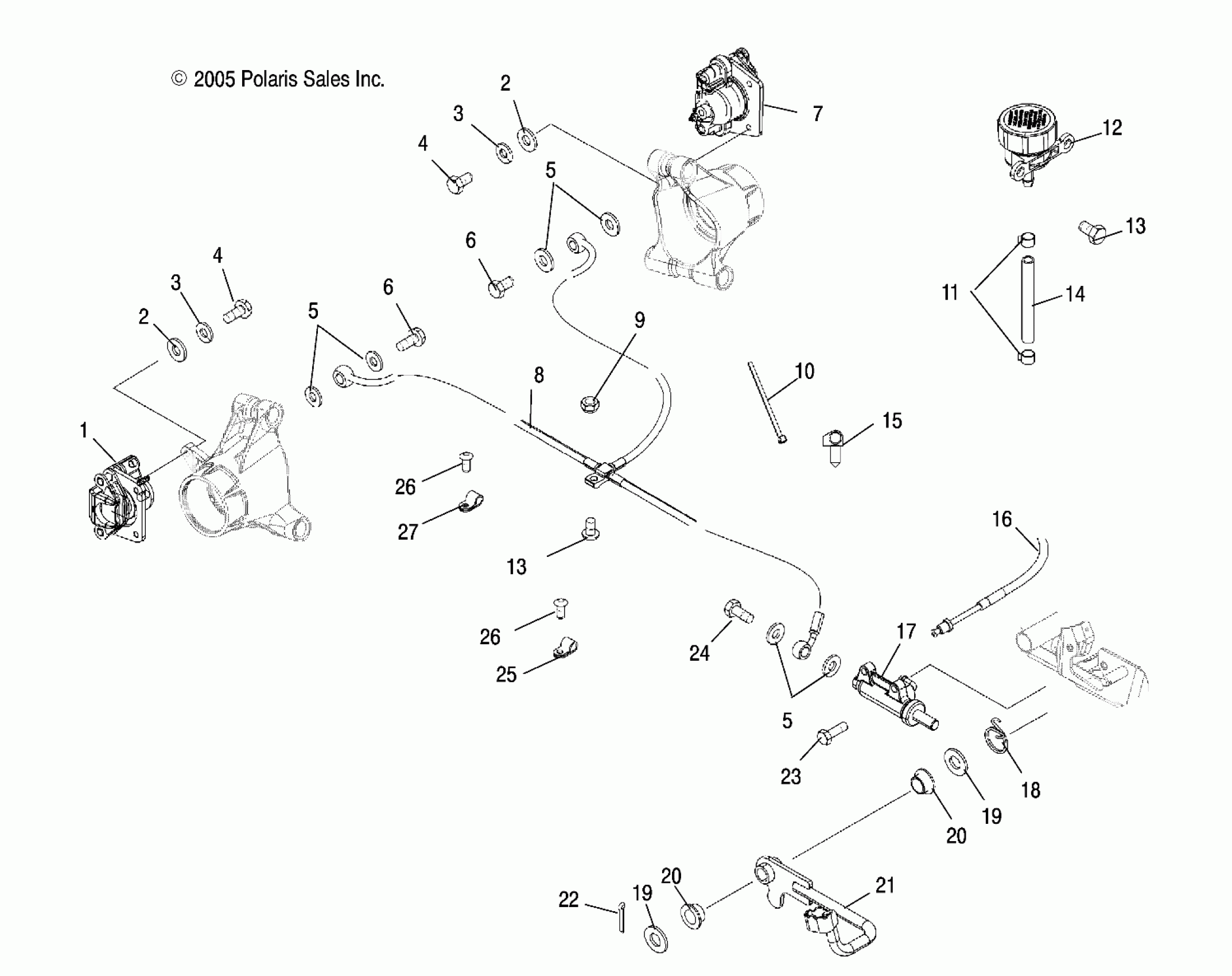

Polaris SPORTSMAN X2 - A06MN50AU MASTER CYLINDER, REAR and FOOT PEDAL - A06MN50AU/AW (4999204069920406B12) Diagram

#

Description
Price

1

Asm., Caliper, Rear, RH

1910917

Unavailable

2

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

2

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

3

WASHER, SPRING LOCK

7552901

$1.49

3

WASHER, SPRING LOCK

7552901

$1.49

4

SCREW

7512365

$1.49

4

SCREW

7512365

$1.49

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

5

Seal

5410988

$4.84

6

BOLT, BANJO

1910499

$5.59

6

BOLT, BANJO

1910499

$5.59

7

Asm., Caliper, LH

1910916

Unavailable

8

Line, Rear Brake

1910979

Unavailable

9

Nut, Nylok

7542122

$1.49

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

HOSE CLAMP, RED

7080003

$1.49

12

Reservoir, Brake, Rear

1910982

Unavailable

13

SCREW

7517386

$1.49

13

SCREW

7517386

$1.49

14

Hose, Reservoir

1911159

$5.71

15

Clip

7670102

$2.39

16

Line, JB to FT, M/C

1910980

$95.99

17

Master Cylinder, Brake, Rear

1910637

$174.03

18

SPRING-TORSION,BRAKE

7041750

$8.79

19

WASHER

7555919

$4.99

19

WASHER

7555919

$4.99

20

BUSHING, PIVOT, PEDAL

5433189

$3.99

20

BUSHING, PIVOT, PEDAL

5433189

$3.99

21

Pedal, Brake

1910919-067

$63.99

22

PIN, COTTER

7661401

$1.49

23

SCREW

7512130

$3.99

24

BOLT, BANJO

1910499

$5.59

25

Clamp

7080499

$5.59

26

SCREW

7512024

$4.79

26

SCREW

7512024

$4.79

27

CLAMP

7080683

$2.39
