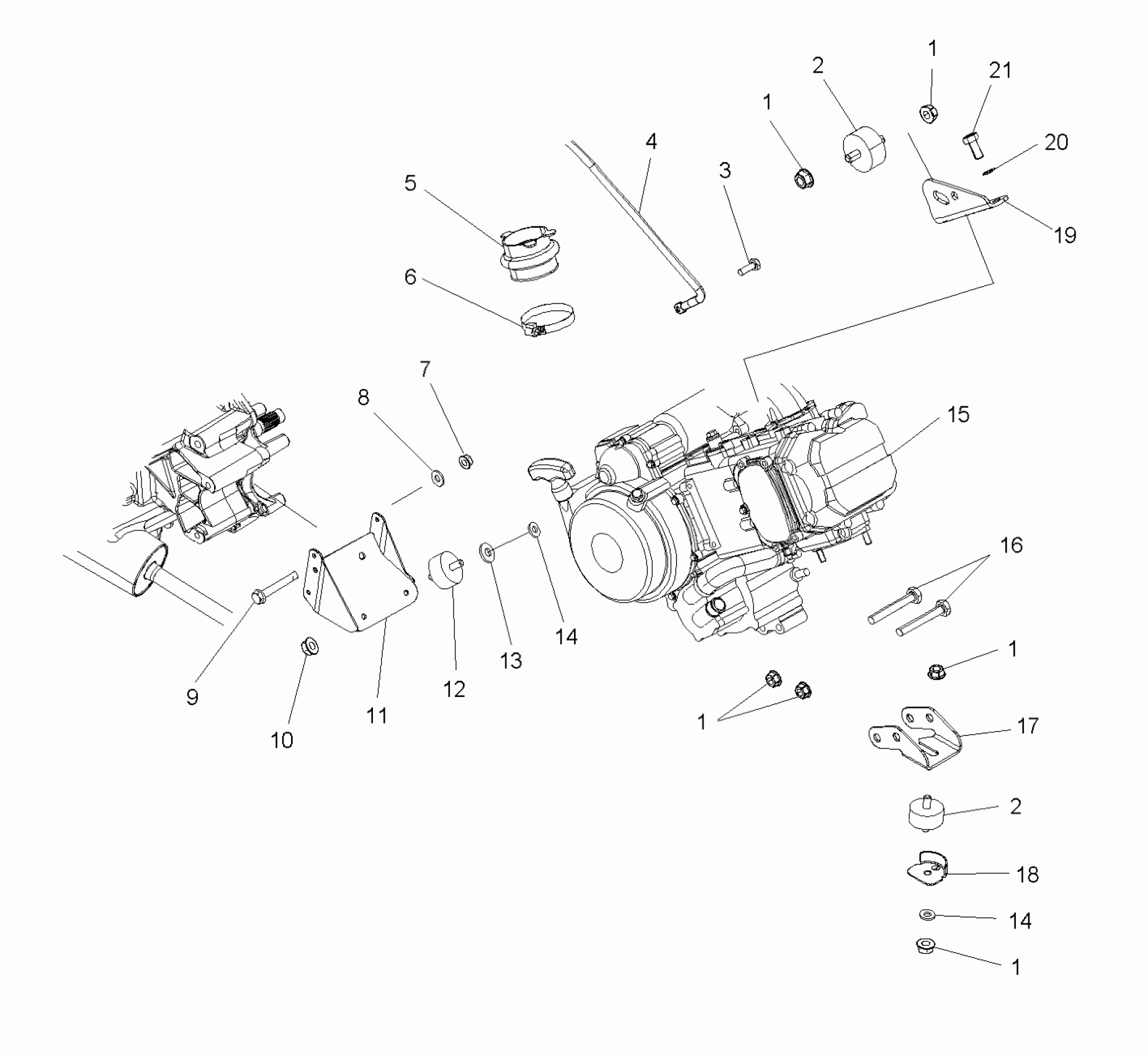

Polaris SPORTSMAN X2 - A06MN50AU ENGINE MOUNTING - A06MN50AU/AW (4999204069920406B04) Diagram

#

Description
Price

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

2

Mount, Rubber, Top

3110044

Unavailable

2

Mount, Rubber, Top

3110044

Unavailable

3

ASM., BOLT AND WASHER

3082038

$3.99

4

Cable, Grd., [Frame/Engine]

4011546

$15.99

5

BOOT, CLUTCH INTAKE

5412487

Unavailable

6

Clamp, Narrow Band

7080511

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

Washer

7556216

$4.79

9

Screw

7518318

Unavailable

10

Nut, Nylok

7542439

$1.49

11

Mount, Engine, Rear

1015356-067

$47.22

12

Mount, Rubber, Rear

3021119

Unavailable

13

Washer

7555815

$3.99

14

Washer

7555797

$3.99

14

Washer

7555797

$3.99

15

Engine, Short Block [EH500PLE210] NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required

3089950

Unavailable

16

Screw

7518415

$4.79

17

Mount, Engine, Front

5250326

$39.59

18

BRACKET, TORQUE STOP

5245043

$15.83

19

Mount, Engine, Top

5241453

$7.99

20

Washer, Lock

7552901

$1.49

21

Screw

7512315

$4.79
