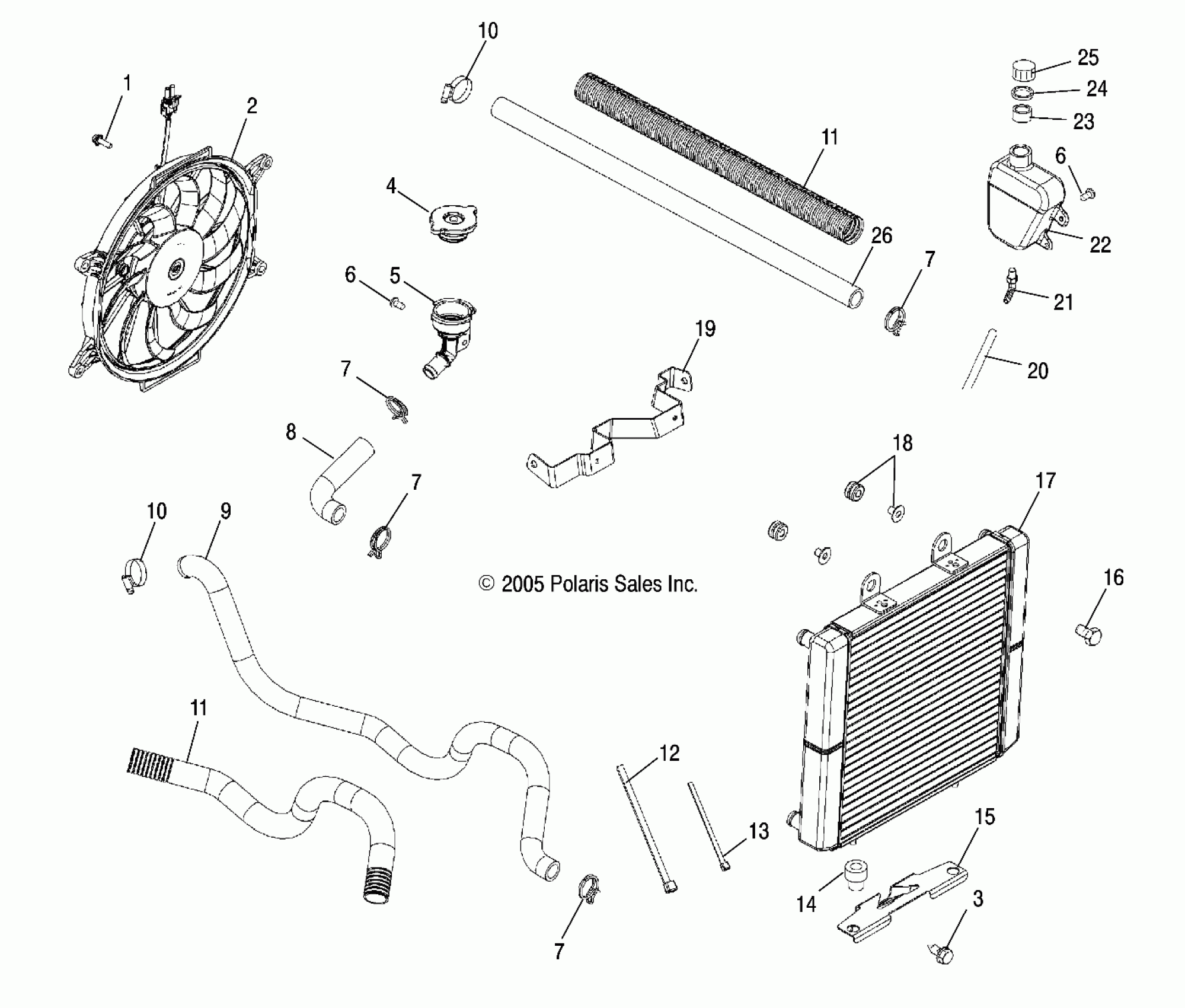

Polaris SPORTSMAN X2 - A06MN50AU COOLING SYSTEM - A06MN50AU/AW (4999204069920406B02) Diagram

#

Description
Price

1

Bolt

7517975

$5.56

2

Asm., Fan and Motor

2410383

$225.14

3

SCREW

7517386

$1.19

4

Cap, Pressure

1240044

$48.56

5

NECK, FILLER

5412402

$31.10

6

Screw

7512084

$1.19

6

Screw

7512084

$1.19

7

Clamp, Hose

7080826

$4.76

7

Clamp, Hose

7080826

$4.76

7

Clamp, Hose

7080826

$4.76

7

Clamp, Hose

7080826

$4.76

8

Hose, Filler Neck

5412405

Unavailable

9

Hose, Engine, Lower

5412860

Unavailable

10

Clamp

7080696

$5.56

10

Clamp

7080696

$5.56

11

Guard, Hose, Plastic

5521550

$10.51

11

Guard, Hose, Plastic

5521550

$10.51

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

15

Bracket, Radiator, Lower, Black

5247047-067

Unavailable

16

Screw

7515179

$2.38

17

Radiator

1240152

$453.32

18

ASM., GROMMET AND INSERT

5411975

$3.17

19

Bracket, Radiator, Upper, Black

5249560

$4.95

20

Line, Fuel

8450003-1525

$89.99

21

FITTING, 90 DEGREE

7052065

$7.14

22

Tank, Surge

5431673

$80.94

23

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

24

GASKET-OVERFLOW CAP

5810279

$2.41

25

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

26

Hose, Engine, Upper

5412859

Unavailable
