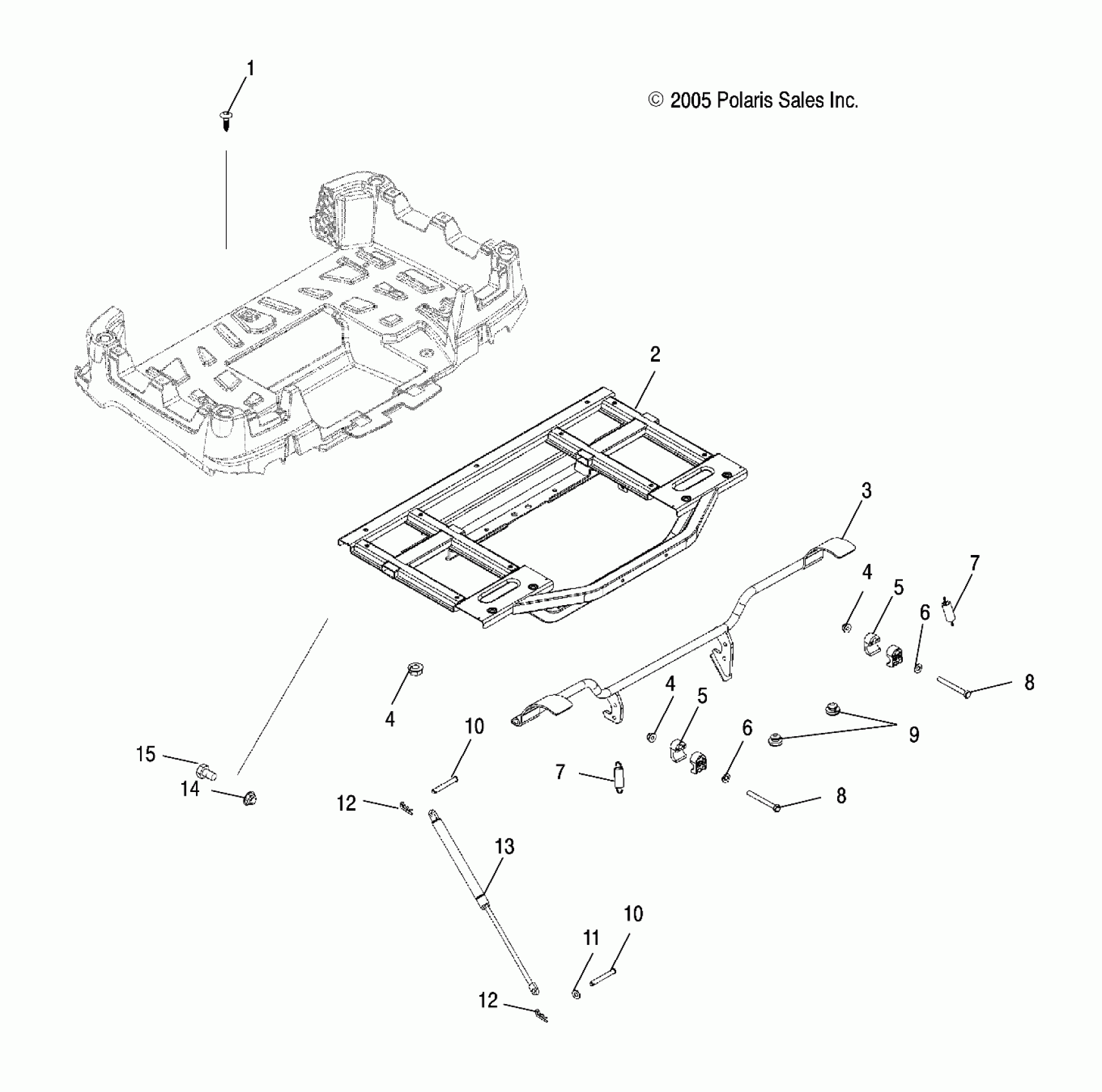

Polaris SPORTSMAN X2 - A06MN50AU BOX FRAME - A06MN50AU/AW (4999204069920406A10) Diagram

#

Description
Price

1

SCREW

7518235

$1.59

2

Frame, Box

1015269-067

$608.99

3

Latch, Box

1015268-067

$182.54

4

Nut, Flange

7592343

Unavailable

4

Nut, Flange

7592343

Unavailable

4

Nut, Flange

7592343

Unavailable

5

BUSHING-BOX,LATCH

5434226

$3.99

5

BUSHING-BOX,LATCH

5434226

$3.99

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

SPRING-EXHAUST

7041687

$5.65

7

SPRING-EXHAUST

7041687

$5.65

8

Screw

7515346

$5.59

8

Screw

7515346

$5.59

9

BUMPER-RUBBER

5412067

$3.99

10

PIN, CLEVIS

7661163

$3.99

10

PIN, CLEVIS

7661163

$3.99

11

Spacer

7556091

$3.99

12

PIN, HITCH

7661644

$2.39

12

PIN, HITCH

7661644

$2.39

13

Shock, Dump Box

7042268

$60.70

14

Nut, Flange, Lock

7542449

$3.99

15

Screw

7512492

$1.49
