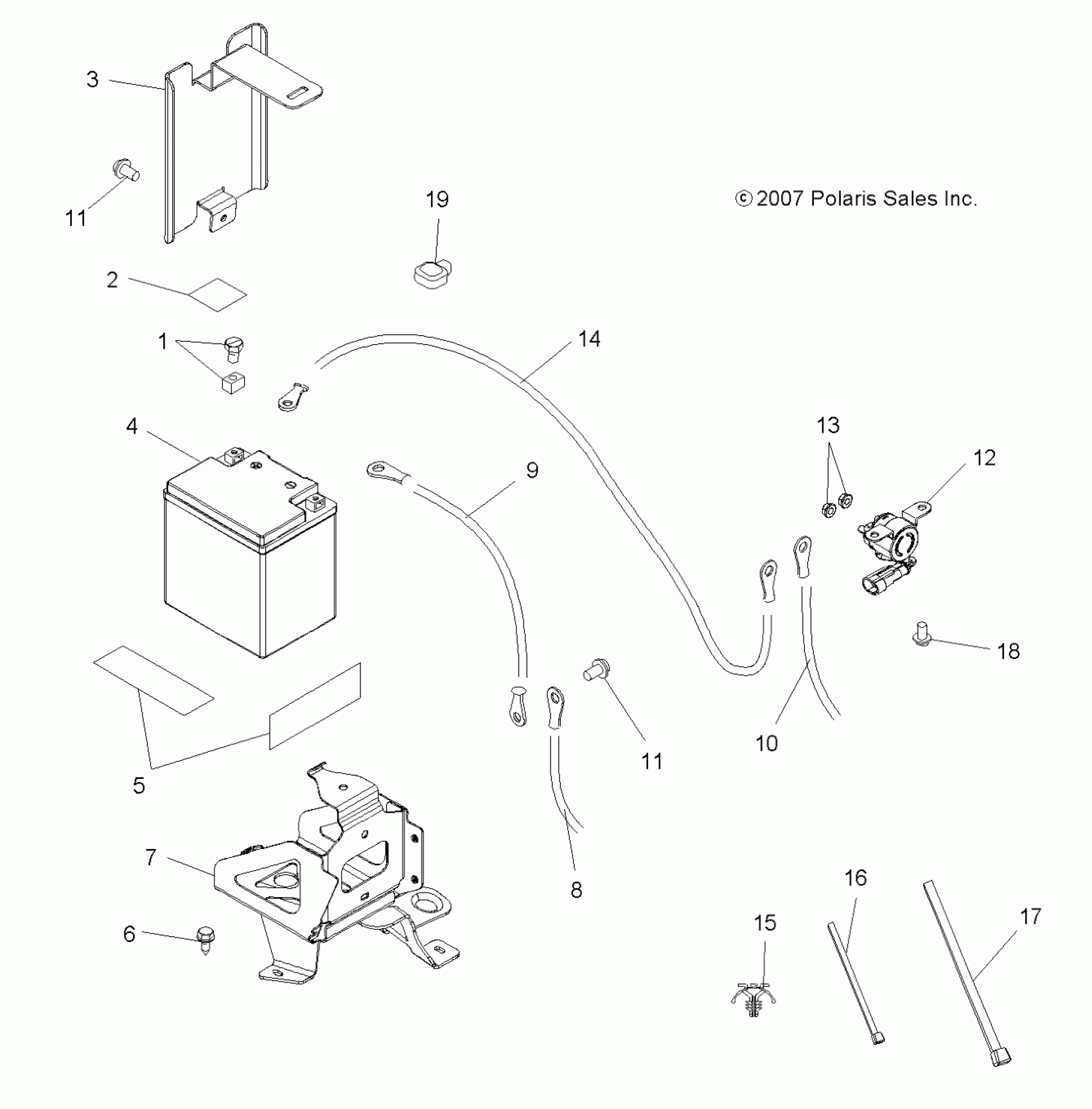

Polaris SPORTSMAN X2 700 EFI - A08TN68AX/AZ ELECTRICAL, BATTERY - A08TN68AX/AZ (49ATVBATTERY08SPX27) Diagram

#

Description
Price

1

KIT, BATTERY BOLT

2202213

$3.79

2

Pad, Battery

5813165

Unavailable

3

Shield, Heat, Battery

5250933

$59.99

4

Battery

4010595

Unavailable

5

PAD-BATTERY

5810290

$7.27

6

SCREW

7517386

$1.49

7

Box, Battery, Black

1016332-067

Unavailable

8

Cable, Black, Frame/Engine

4011546

$15.99

9

Cable, Ground, Frame/Battery

4011552

$27.99

10

CABLE, SOLENOID/STARTER

4010376

$47.99

11

Bolt

7512232

$1.49

11

Bolt

7512232

$1.49

12

SOLENOID, STARTER

4012001

Unavailable

13

NUT, FLANGE

7547270

$3.99

14

Cable, Battery/Solenoid [Built 10/01/07 and Before]

4011360

$23.19

14

Cable, Battery/Solenoid [Built 10/02/07 and After]

4012096

$7.43

15

MOUNT, CABLE TIE

7080965

$7.19

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

18

SCREW

7512024

$4.79

19

Boot, Battery Cable

5413458

Unavailable
