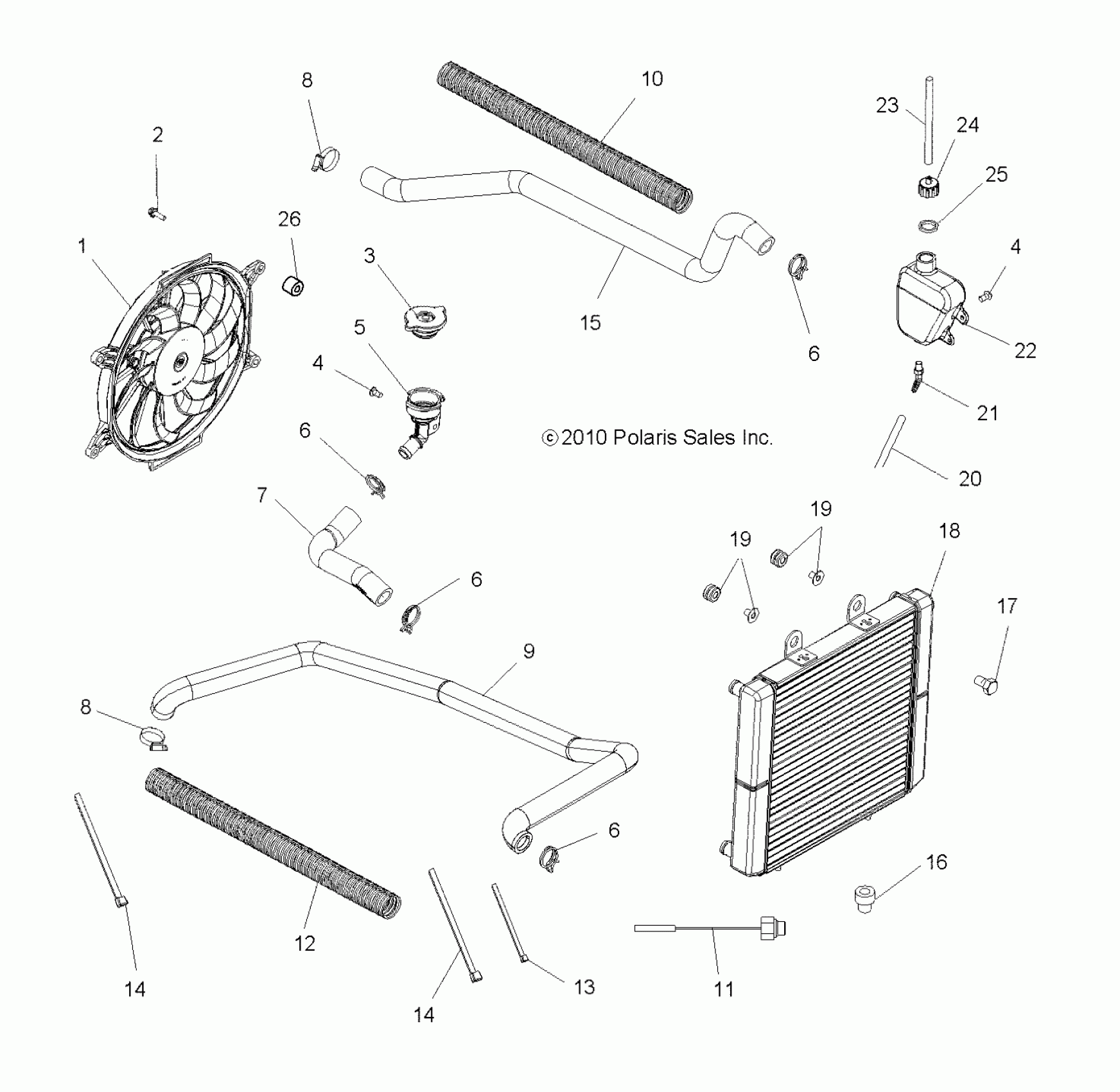

Polaris SPORTSMAN TOURING 500 HO - A11DH50AX/AZ ENGINE, COOLING SYSTEM - A11DH50AX/AZ (49ATVCOOL11SP500TRG) Diagram

#

Description
Price

1

Asm., Fan and Motor

2410383

$189.59

2

SCREW

7516827

$6.39

3

Cap, Pressure

1240508

$48.56

4

Screw

7512084

$1.49

4

Screw

7512084

$1.49

5

NECK, FILLER

5412402

$23.99

6

CLAMP, SPRINGBACK

7080841

$7.19

6

CLAMP, SPRINGBACK

7080841

$7.19

6

CLAMP, SPRINGBACK

7080841

$7.19

6

CLAMP, SPRINGBACK

7080841

$7.19

7

Hose, Filler Neck

5414024

$17.43

8

CLAMP, HOSE

7080696

$5.59

8

CLAMP, HOSE

7080696

$5.59

9

Hose, Engine, Lower

5414119

Unavailable

10

Conduit, Flex

5521793-51

$9.59

11

SENSOR, THERMAL HARNESS

4010808

$87.99

12

Conduit, Flex

5521793-51

$9.59

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

Hose, Radiator, Upper

5414069

Unavailable

16

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

17

Screw

7515179

$2.39

18

ASM., RADIATOR [INCL. 19, DOES NOT INCL. 4010808]

1240522

$413.39

19

ASM., GROMMET AND INSERT

5413155

$3.99

19

ASM., GROMMET AND INSERT

5413155

$3.99

20

Line, Fuel

8450003-1525

$84.99

21

FITTING, 90 DEGREE

7052065

$7.19

22

TANK-SURGE

5436936

$75.99

23

LINE, FUEL

8360009-600

Unavailable

24

CAP, OVERFLOW BOTTLE W/FITTING

5437635

$4.79

25

GASKET-OVERFLOW CAP

5810279

$2.41

26

SPACER

5137361

$5.59
