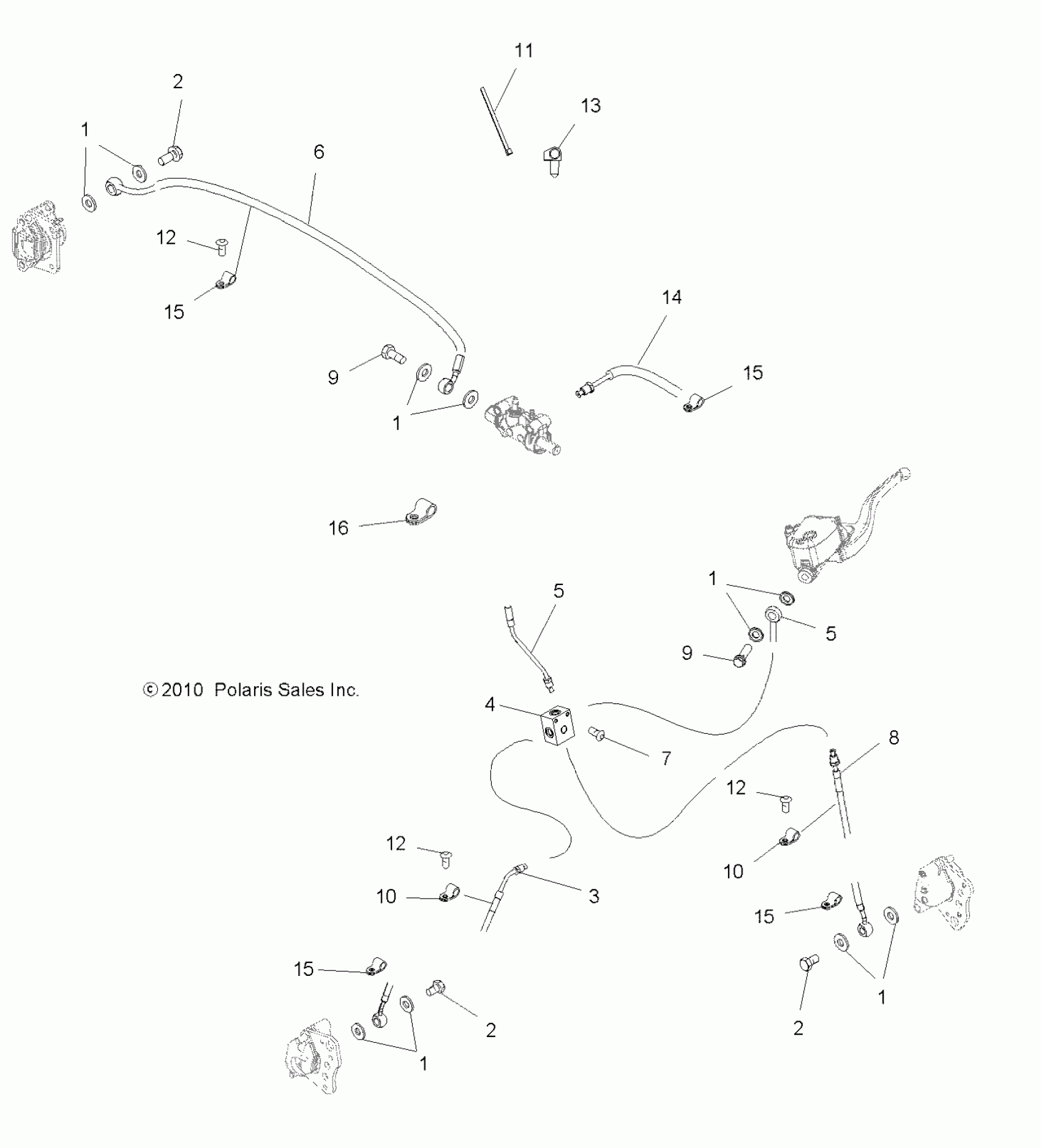

Polaris SPORTSMAN TOURING 500 HO - A11DH50AX/AZ BRAKES, BRAKE LINES - A11DH50AX/AZ (49ATVBRAKELINE11SP500TRG) Diagram

#

Description
Price

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

1

SEAL

5413212

$4.79

2

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

2

BOLT, BANJO

1910499

$5.59

3

LINE, BRAKE, RIGHT FRONT

1910839

$75.99

4

FITTING, CROSS

7052292

$39.99

5

Line, Brake

1910913

$63.99

5

Line, Brake

1910913

$63.99

6

Line, Brake, FT M/C to Rear Caliper

1911483

Unavailable

7

SCREW

7512024

$4.79

8

LINE, BRAKE, LEFT FRONT

1910838

$75.99

9

BOLT, BANJO

1910499

$5.59

9

BOLT, BANJO

1910499

$5.59

10

Clamp, Hose, Vinyl Coated

7080880

$5.59

10

Clamp, Hose, Vinyl Coated

7080880

$5.59

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

Screw

7512084

$1.49

12

Screw

7512084

$1.49

12

Screw

7512084

$1.49

13

Clip

7670102

$2.39

14

Line, JB to FT, M/C

1910980

$95.99

15

Clamp, Vinyl Coated

7080683

$2.39

15

Clamp, Vinyl Coated

7080683

$2.39

15

Clamp, Vinyl Coated

7080683

$2.39

15

Clamp, Vinyl Coated

7080683

$2.39

16

CLAMP, CABLE

7080499

$5.59
