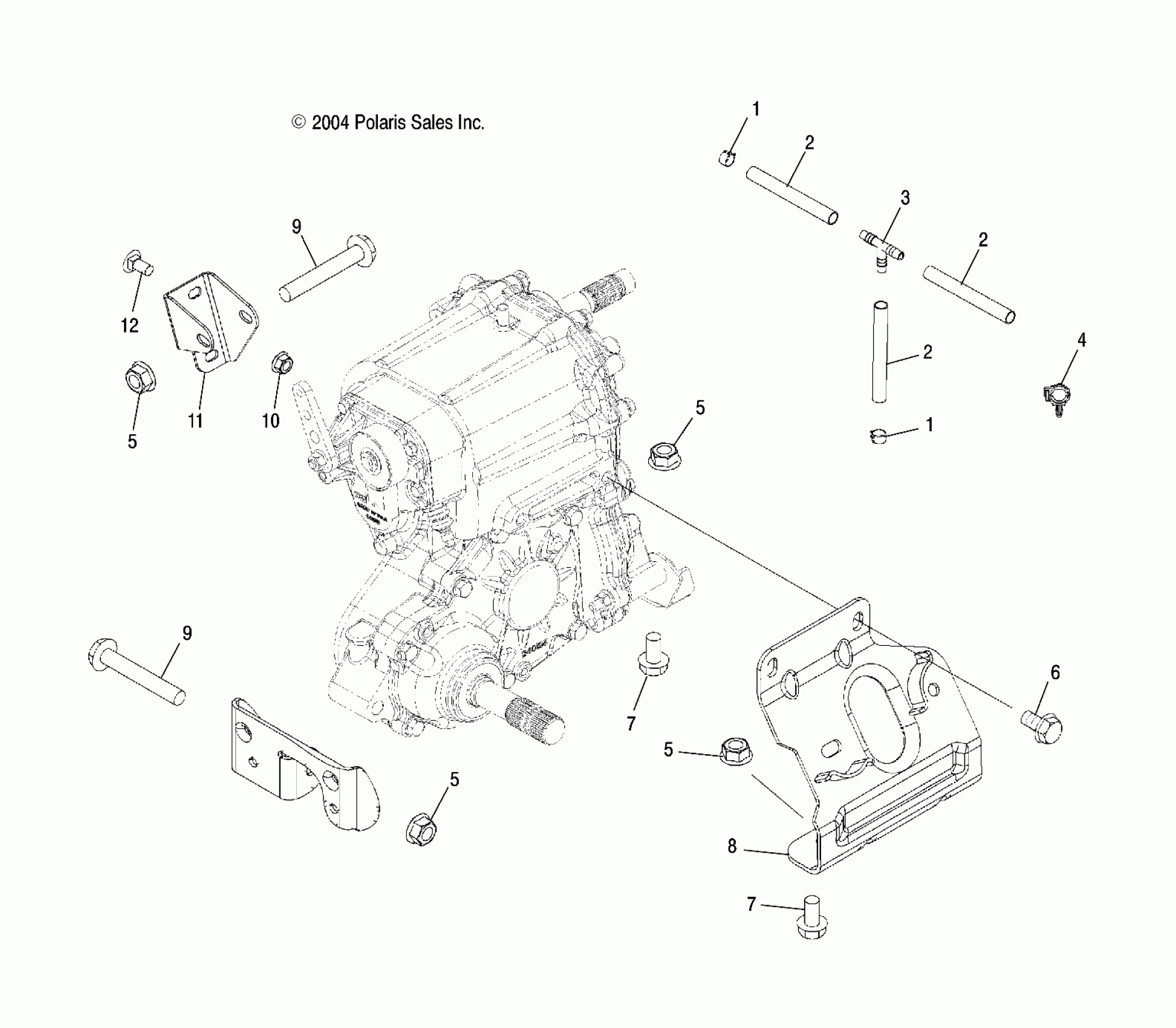

Polaris SPORTSMAN MV7 - A05MH68AP TRANSMISSION MOUNTING - A05MH68AP (4999609960D02) Diagram

#

Description
Price

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

2

Line, Fuel

8450003-1525

Unavailable

2

Line, Fuel

8450003-1525

Unavailable

2

Line, Fuel

8450003-1525

Unavailable

3

T-Fitting

7052075

$9.52

4

CLIP, SNAP IN

7080756

$4.76

5

NUT-3/8-24 FLG LOC

7547263

$3.17

5

NUT-3/8-24 FLG LOC

7547263

$3.17

5

NUT-3/8-24 FLG LOC

7547263

$3.17

5

NUT-3/8-24 FLG LOC

7547263

$3.17

6

SCREW

7517632

$5.56

7

Screw

7518276

Unavailable

7

Screw

7518276

Unavailable

8

Mount, Rear Engine, Black

1013134-067

Unavailable

9

Bolt, Flange

7518415

$5.22

9

Bolt, Flange

7518415

$5.22

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

Bracket, Mount, Rear Transmission

5247348

Unavailable

12

Bolt, Carriage

7512377

$4.76
