Description

Price

1

Pad, Shaft, Rear

5812047

Unavailable

2

Platform, Front

1014839-463

Unavailable

3

Screw

7515384

Unavailable

4

WASHER, FLAT

7555960

$3.99

4

WASHER, FLAT

7555960

$3.99

4

WASHER, FLAT

7555960

$3.99

4

WASHER, FLAT

7555960

$3.99

4

WASHER, FLAT

7555960

$3.99

5

Bracket, Support, Corner

5248445-418

Unavailable

6

Screw

7518436

Unavailable

6

Screw

7518436

Unavailable

6

Screw

7518436

Unavailable

6

Screw

7518436

Unavailable

6

Screw

7518436

Unavailable

7

Support, Brush Guard, Front, RH

1014920-067

$87.99

7

Support, Brush Guard, Front, LH

1014919-067

$87.99

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

SCREW

7515399

$1.49

9

SCREW

7515399

$1.49

9

SCREW

7515399

$1.49

9

SCREW

7515399

$1.49

10

Support, Rack, Front, LH

1014917-067

$91.99

10

Support, Rack, Front, RH

1014918-067

$82.39

10

Support, Rack, Front, LH

1014917-067

$91.99

10

Support, Rack, Front, RH

1014918-067

$82.39

11

Screw

7518340

$7.19

11

Screw

7518340

$7.19

12

Screw

7518213

Unavailable

13

Mount, Brush Guard, Front

1014364-067

$177.13

14

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

15

Plate, Vent Mount, RH

5248630-418

$144.99

16

Brushguard, Front

1014841-418

$506.99

17

GROMMET

5412507

$6.39

18

Pin, Seat Latch

5910096

$23.99

19

Asm., Headlight Mount, Side, LH [Incl. 24]

2431014

Unavailable

19

Asm., Headlight Mount, Side, RH [Incl. 24]

2431015

$92.99

20

Hinge, Instrument Panel

7020024-468

$18.79

21

Rivet

7621432

$1.49

22

Plate, Vent Door

5248631-418

$56.99

23

Plate, Vent, Mount, LH

5248629-418

$133.99

24

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

25

SCREW

7517208

$1.99

26

BUMPER, EXTRUDED, SHORT

5412446

$65.99

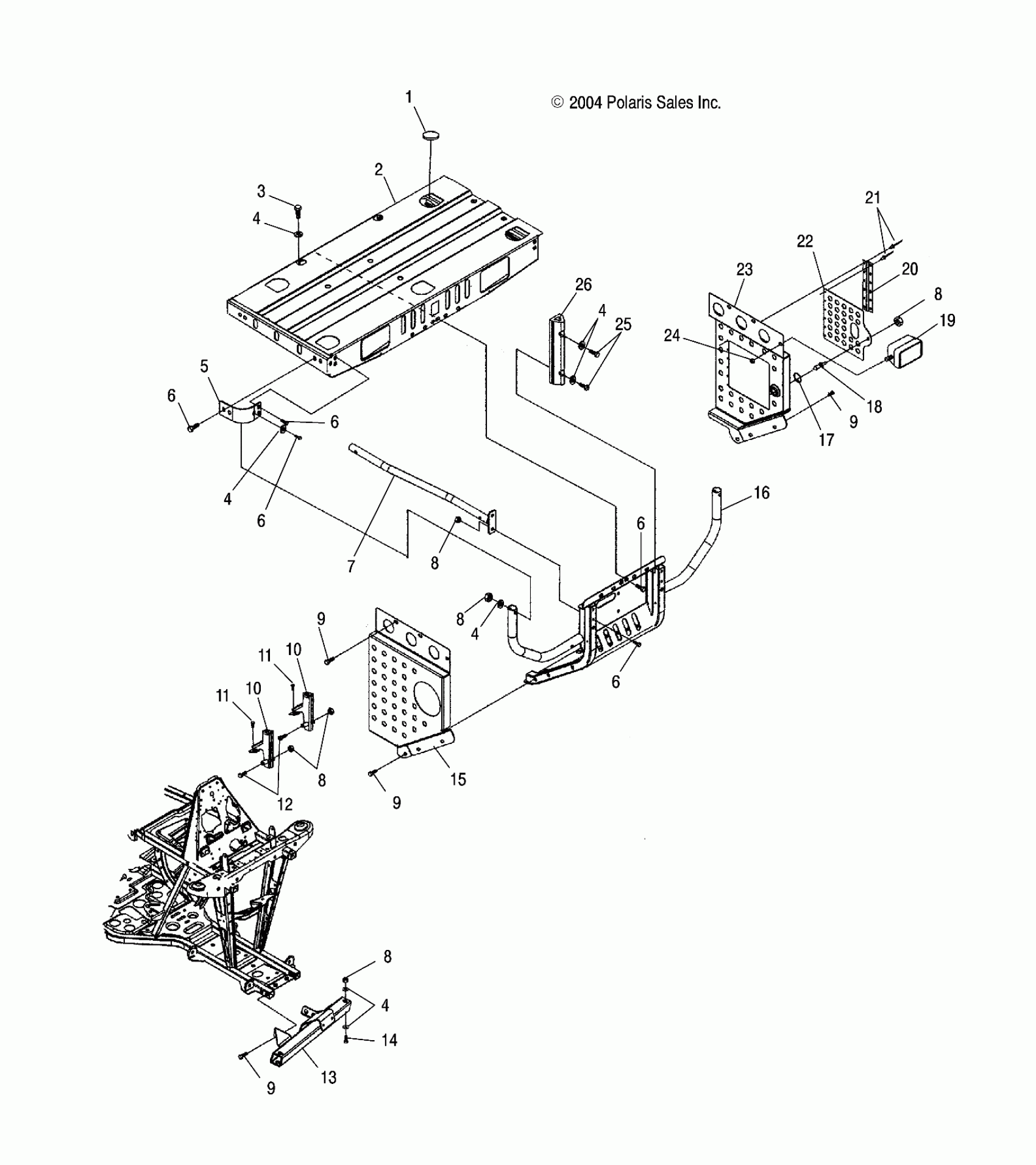

Polaris SPORTSMAN MV7 - A05MH68AP RACK MOUNTING, FRONT and BUMPER MOUNTING - A05MH68AP (4999609960A07) Diagram

Pad, Shaft, Rear

Platform, Front

Screw

WASHER, FLAT

WASHER, FLAT

WASHER, FLAT

WASHER, FLAT

WASHER, FLAT

Bracket, Support, Corner

Screw

Screw

Screw

Screw

Screw

Support, Brush Guard, Front, RH

Support, Brush Guard, Front, LH

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

NUT-5/16-18 NYLOK-Y

SCREW

SCREW

SCREW

SCREW

Support, Rack, Front, LH

Support, Rack, Front, RH

Support, Rack, Front, LH

Support, Rack, Front, RH

Screw

Screw

Screw

Mount, Brush Guard, Front

SCR-HH-5/16-18X2.25 GR5 ZY3

Plate, Vent Mount, RH

Brushguard, Front

GROMMET

Pin, Seat Latch

Asm., Headlight Mount, Side, LH [Incl. 24]

Asm., Headlight Mount, Side, RH [Incl. 24]

Hinge, Instrument Panel

Rivet

Plate, Vent Door

Plate, Vent, Mount, LH

NUT-5/16-18 HX FLG NL-Y

SCREW

BUMPER, EXTRUDED, SHORT
