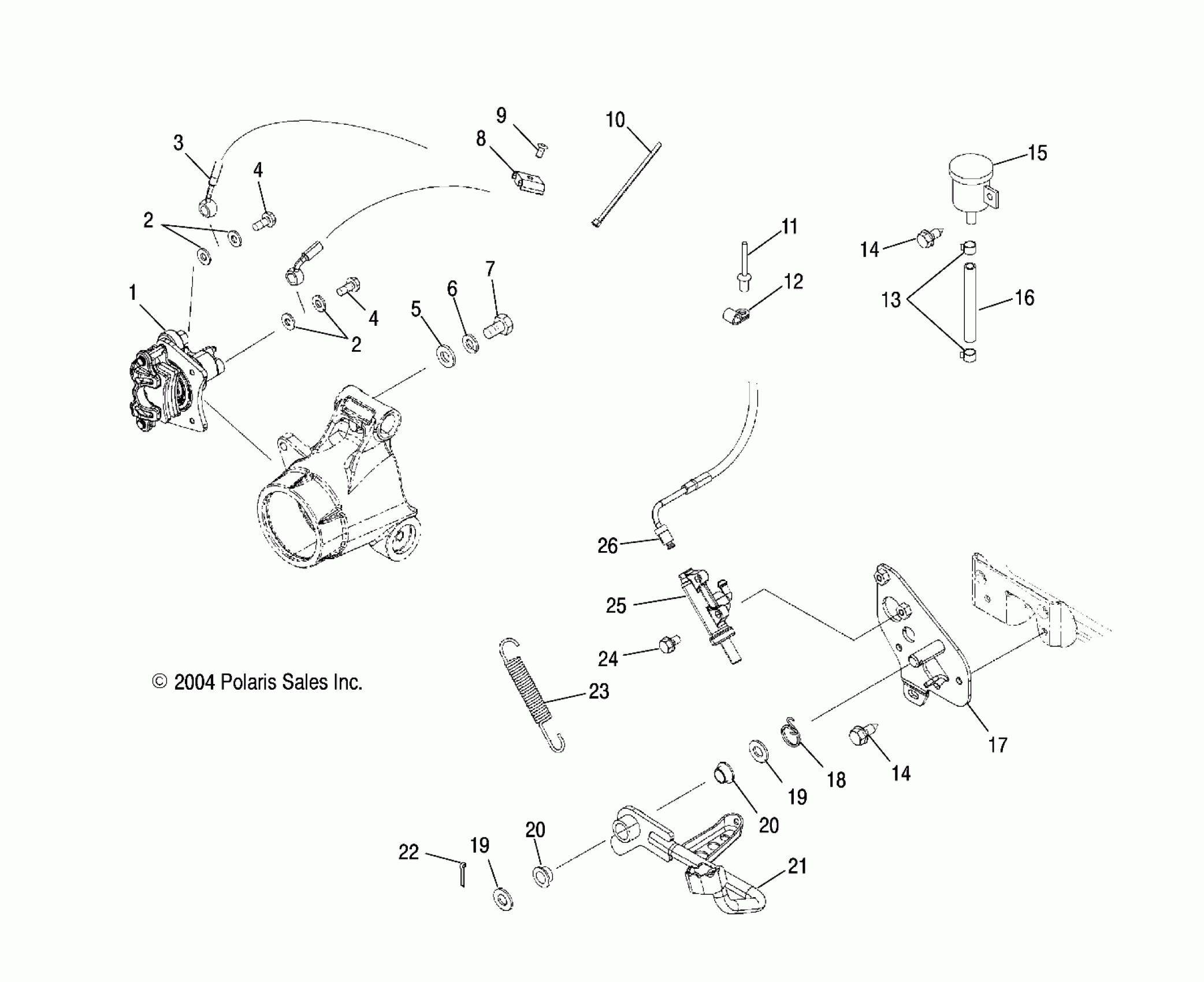

Polaris SPORTSMAN MV7 - A05MH68AP MASTER CYLINDER, REAR and FOOT PEDAL - A05MH68AP (4999609960B10) Diagram

#

Description
Price

-

Kit, Brake Line, Rear [Incl. 26]

2202709

$89.03

1

ASM., CALIPER [SEE CALIPER, REAR PG. B8 FOR DETAILS]

----

Unavailable

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

3

Line, Brake, Hand, Rear

1910759

$89.03

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

6

WASHER, SPRING LOCK

7552901

$1.19

7

SCREW, CAP

7512365

$1.19

8

CLIP, RETAINING

7670126

$4.76

9

Screw

7517756

$1.19

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

Rivet

7621462

$1.19

12

CLAMP, CABLE

7080960

$4.76

13

HOSE CLAMP, RED

7080003

$1.19

14

SCREW

7517386

$1.19

14

SCREW

7517386

$1.19

15

Asm., Reservoir, Brake, Rear

1930854

$36.41

16

Hose, Reservoir

1910438

$8.08

17

Mount, Brake, Black

1013414-067

Unavailable

18

SPRING-TORSION,BRAKE

7041750

$8.89

19

WASHER

7555919

$4.99

19

WASHER

7555919

$4.99

20

BUSHING, PIVOT, PEDAL

5433189

$3.97

20

BUSHING, PIVOT, PEDAL

5433189

$3.97

21

Rod, Brake, Black

1014928-067

$51.59

22

PIN, COTTER

7661401

$0.79

23

Spring

7042075

$54.99

24

Screw

7515158

$4.76

25

Master Cylinder, Brake, Rear

1910790

$174.03

26

Line, Rear Brake, Foot

1910766

Unavailable
