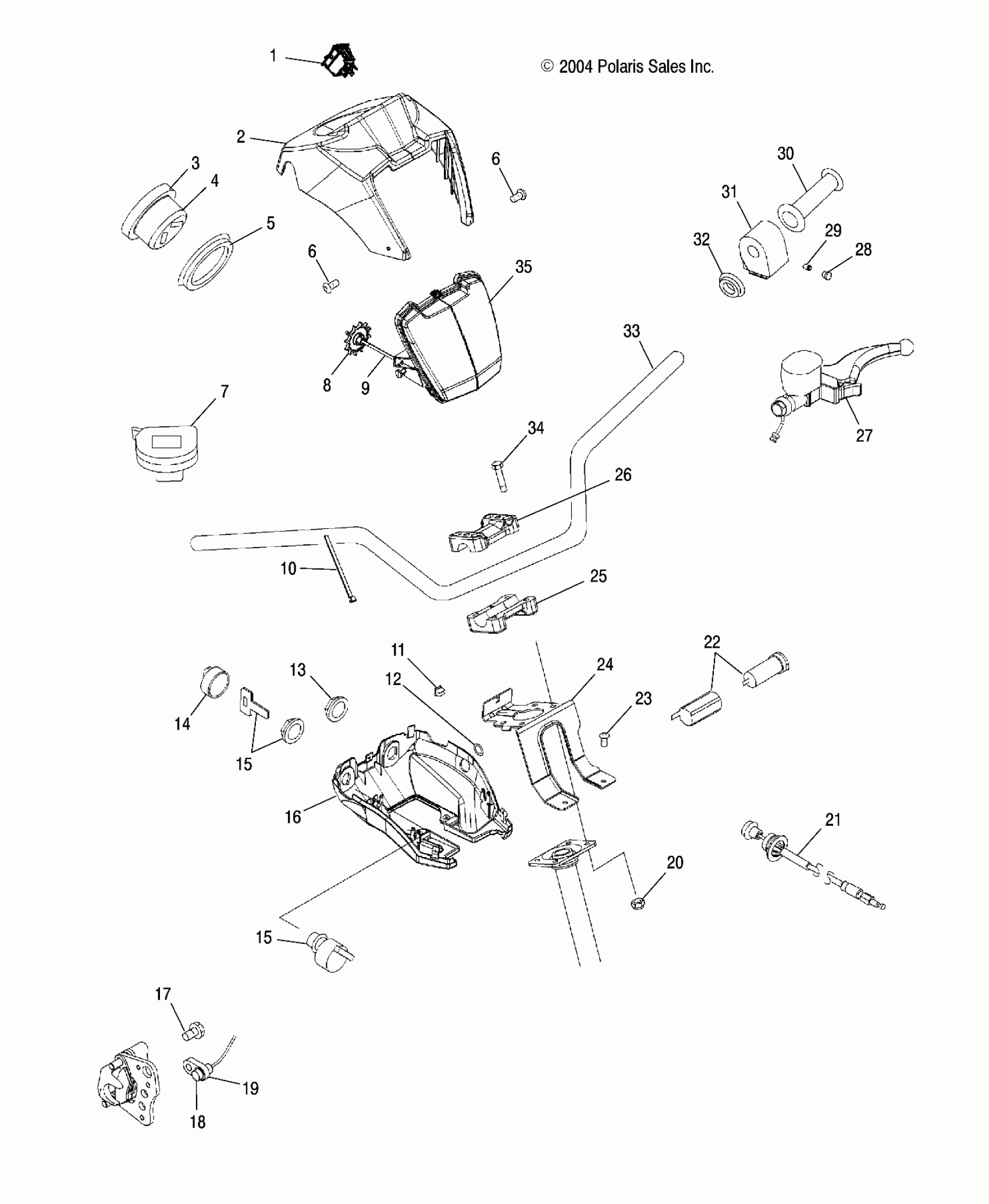

Polaris SPORTSMAN MV7 - A05MH68AP HANDLEBAR and HEADLIGHT POD - A05MH68AP (4999609960C03) Diagram

#

Description
Price

1

Switch, Winch, Front/Rear

4011155

$106.65

2

Pod, Headlight, Upper, Olive Green

5435961-191

Unavailable

3

Bezel

5434380

$44.51

4

Asm., Cluster

3280471

$193.99

5

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$44.51

6

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

6

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.19

7

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B11, REF. 5]

----

Unavailable

8

KNOB, ADJUSTING

4032079

$28.32

9

ROD, ADJUSTING

4011378

$44.51

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

CLIP, SCREW

7670127

$10.46

12

O-RING

5410163

$1.60

13

Nut, Choke

7080922

$3.17

14

KEY SWITCH KEY COVER

5433534

$13.75

15

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

15

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

15

Switch, Key, 3 Position [Incl. Key]

4011002

$109.27

15

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

$14.56

15

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

$14.29

15

Switch, Key, 3 Position [Incl. Key]

4011002

$109.27

16

Pod, Headlight, Lower, Black

5435365-070

$89.03

17

Screw

7517658

$5.56

18

Cap, Hall Sensor

5132382

$24.27

19

Sensor, Hall Effect

4010298

$117.37

20

Nut, Nylok

7542122

$1.19

21

CABLE, CHOKE

7081171

$80.94

22

Receptacle, Pod Mount, 12V

4010638

$28.32

23

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

24

BRACKET, POD MOUNTING, BLACK

5244969-067

$44.99

25

BLOCK, HANDLEBAR

5631973

$32.37

26

BLOCK, HANDLEBAR, PEGGED

5631972

$32.37

27

ASM., MASTER CYLINDER [SEE CONTROLS PG. B6 FOR DETAILS]

----

Unavailable

28

PLUG, HOLE

5432952

$6.46

29

SCREW, SET

7517625

$4.76

30

Grip, Handlebar, Black

5433834-070

$28.32

31

Switch, Handlebar, Hi/Lo/Off

4010592

$47.49

32

Spacer, Switch, LH

5433903

Unavailable

33

Tube, Handlebar, Black

5242987-067

$119.99

34

SCREW

7515189

$1.19

35

BULB-HEADLIGHT,50 WATT

4010253

$34.99

35

Asm., Headlamp

2410429

$109.27
