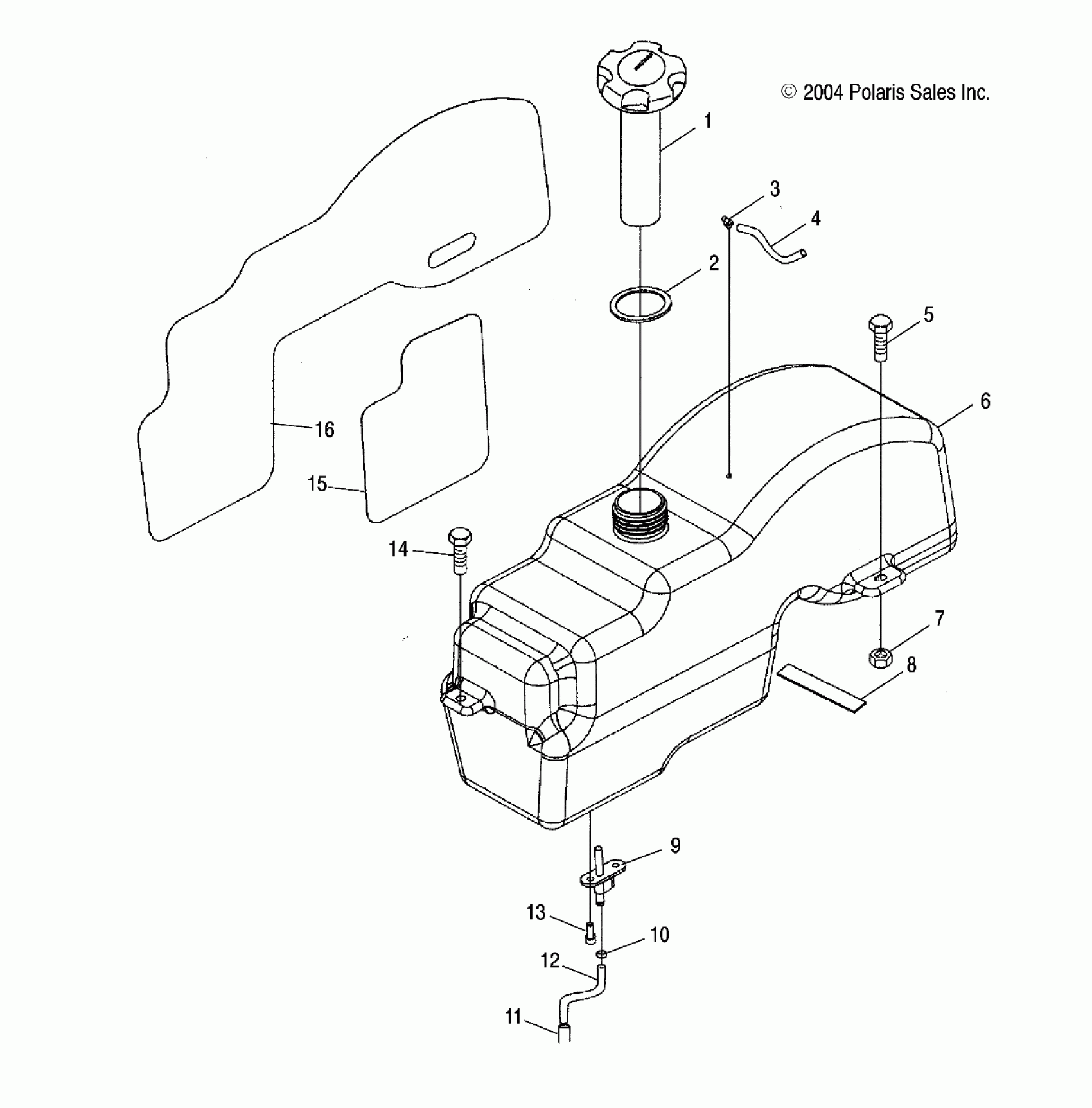

Polaris SPORTSMAN MV7 - A05MH68AP FUEL TANK, RESERVE - A05MH68AP (4999609960A13) Diagram

#

Description
Price

1

Kit, Fuel Gauge, SP

2873626

Unavailable

2

GASKET

5812123

$5.65

3

Vent, Tank

5431053

$19.99

4

LINE, OIL

8450061-600

$56.65

5

Screw

7515307

$3.99

6

Asm., Reserve Fuel Tank [Incl. 3,9,15,16]

2520458

$263.99

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

PAD-BATTERY

5810290

$7.27

9

Fitting, Fuel, Single Outlet

7052363

Unavailable

10

HOSE CLAMP, RED

7080003

$1.49

11

CONDUIT

8360031-145

$27.99

12

Hose, Fuel

8450103

Unavailable

13

Screw

7515136

$1.49

14

SCREW

7517230

$1.49

15

Foil, Gas Tank, Reserve

5812515

Unavailable

16

Foil, Gas Tank, Reserve

5812750

Unavailable
