Description

Price

1

Screw

7515179

$2.39

2

Washer, Flat

7558301

$1.49

3

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

3

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

4

SEAL, FOAM

5812265

$27.99

5

Foam

5812776

Unavailable

6

T-Fitting

7052048

$3.99

6

T-Fitting

7052048

$3.99

7

LINE, FUEL

8360009-600

Unavailable

7

LINE, FUEL

8360009-600

Unavailable

8

VALVE, CHECK

7051011

Unavailable

9

Vent, Tank

5431053

$19.99

10

Cap, Gas Tank

5433687

$20.22

11

GASKET

5812123

$5.65

12

Valve, 3/Way

7052161

$39.99

13

Knob, Fuel Valve

5432559

$10.39

14

Screw

7517505

$1.59

15

Nut, Fuel Valve

5432733

Unavailable

16

HOSE CLAMP, RED

7080003

$1.49

17

Line, Fuel

8450103

Unavailable

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

19

Sheath, Reflective Sleeve

8450105-29

$64.75

20

Screw

7518257

$3.79

21

Sender, Fuel

2410554

Unavailable

22

Gasket

5810858

$74.99

23

Fitting, Fuel

7052363

Unavailable

24

Screw

7515136

$1.49

25

Foil

5812005

$19.30

26

Asm., Fuel Tank w/Sender [Incl. 9,23,24,25,27]

2520403

Unavailable

27

Foil

5812004

Unavailable

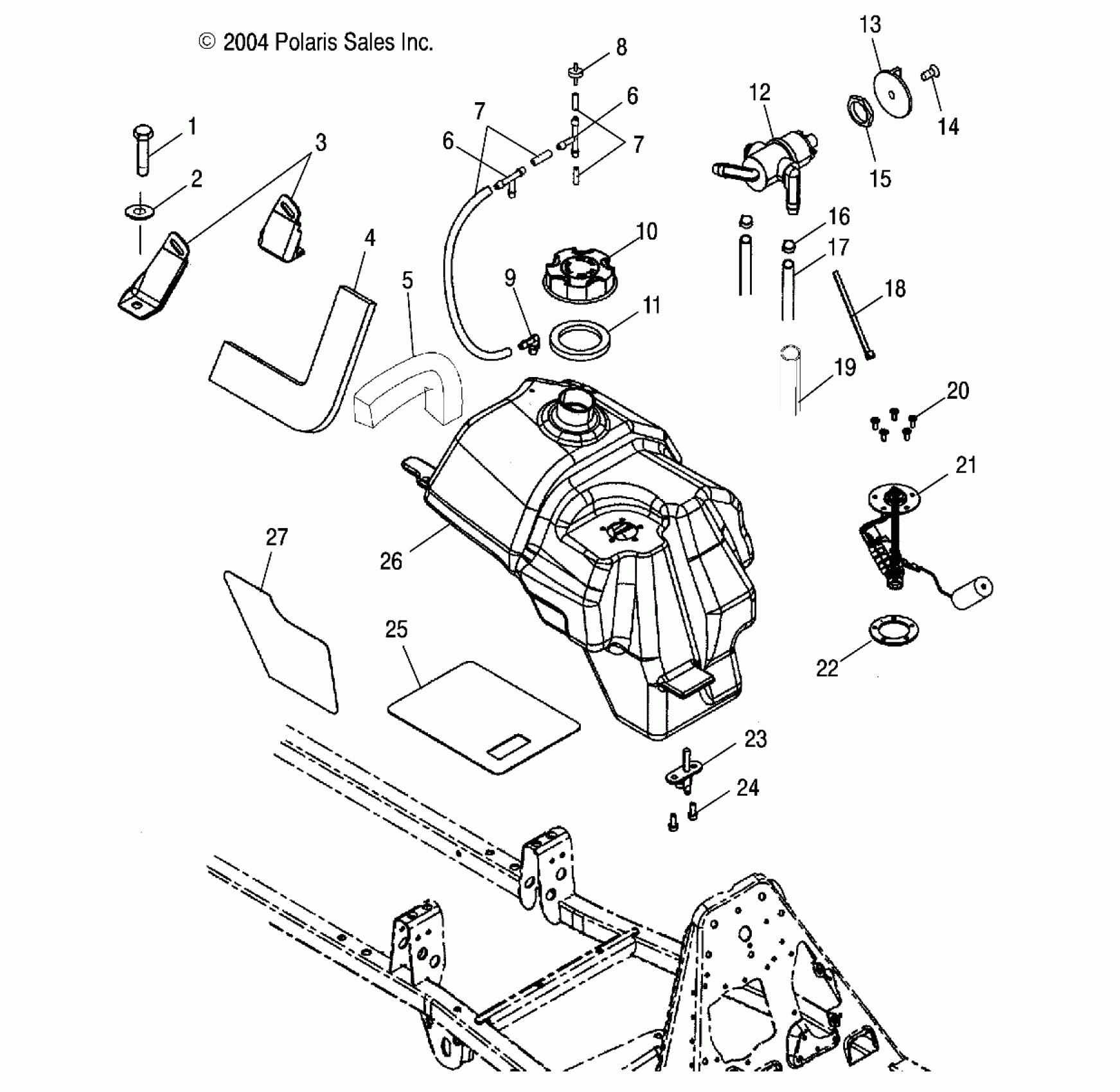

Polaris SPORTSMAN MV7 - A05MH68AP FUEL TANK - A05MH68AP (4999609960A12) Diagram

Screw

Washer, Flat

BRACKET, FUEL COVER MOUNT, LH

BRACKET, FUEL COVER MOUNT, RH

SEAL, FOAM

Foam

T-Fitting

T-Fitting

LINE, FUEL

LINE, FUEL

VALVE, CHECK

Vent, Tank

Cap, Gas Tank

GASKET

Valve, 3/Way

Knob, Fuel Valve

Screw

Nut, Fuel Valve

HOSE CLAMP, RED

Line, Fuel

CABLE-TIE,25-76MM,WEATH.-RES.

Sheath, Reflective Sleeve

Screw

Sender, Fuel

Gasket

Fitting, Fuel

Screw

Foil

Asm., Fuel Tank w/Sender [Incl. 9,23,24,25,27]

Foil
