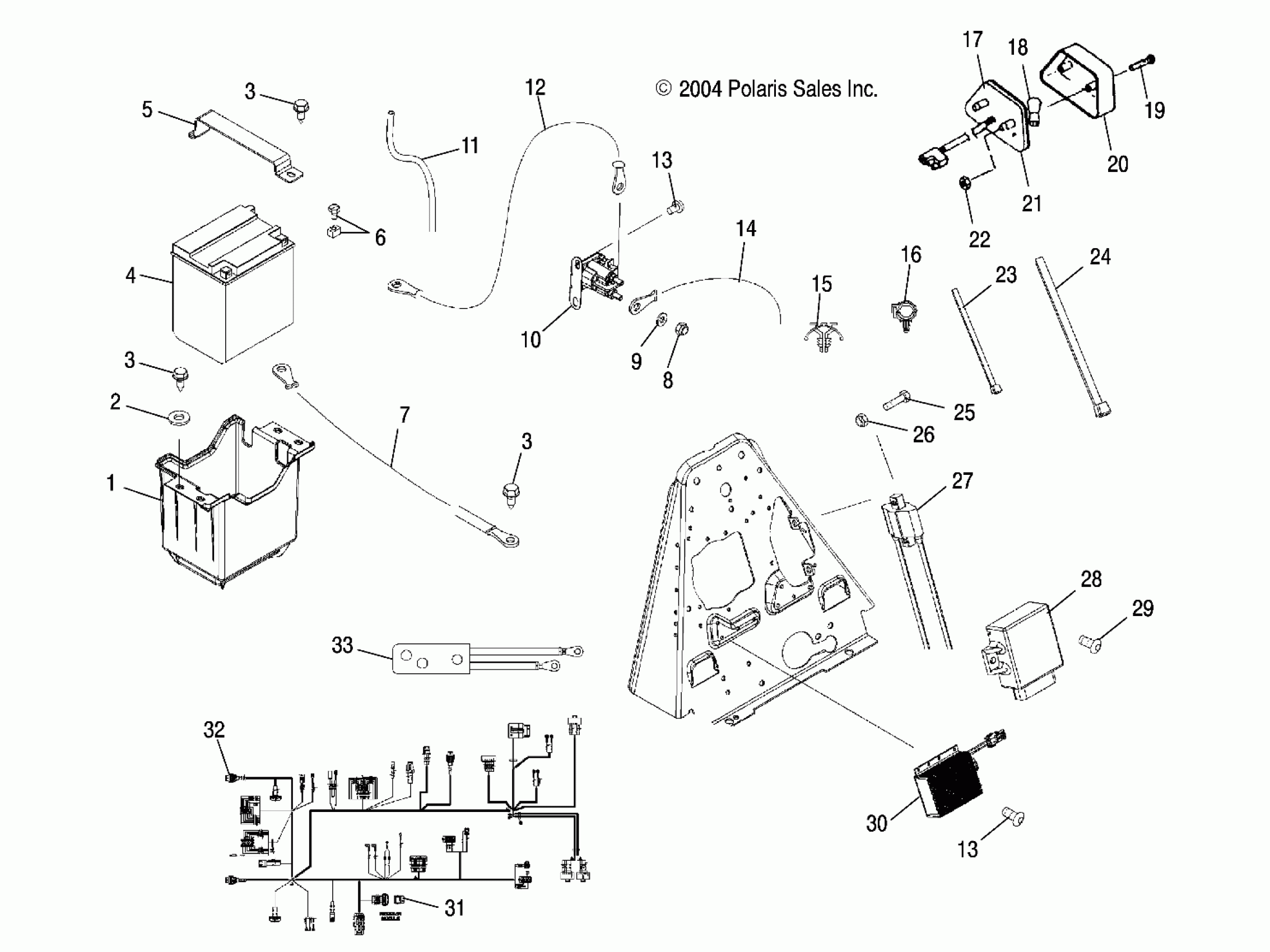

Polaris SPORTSMAN MV7 - A05MH68AP ELECTRICAL - A05MH68AP (4999609960C12) Diagram

#

Description
Price

-

Asm., Taillight, 12V [Incl. 17-22]

2410320

$63.99

1

BOX, BATTERY

5435696

$21.99

2

Washer, Flat

7555859

$1.49

3

Bolt

7512232

$1.49

3

Bolt

7512232

$1.49

3

Bolt

7512232

$1.49

4

BATTERY

4010630

$147.60

5

STRAP, BATTERY HOLDDOWN

5247376

$12.79

6

Kit, Battery Bolt

2202099

$5.99

7

CABLE, BATTERY/FRAME

4011139

$43.99

8

Nut, Hex, Jam

7547283

$3.19

9

WASHER, SPRING LOCK

7552801

$1.59

10

Switch, Magnetic (If built after 1/10/05)

4011251

$75.99

10

Switch, Magnetic (If built before 1/10/05)

4011072

$73.35

11

Tube, Vent

5432077

Unavailable

12

Cable, Battery/Solenoid

4010471

Unavailable

13

SCREW

7512024

$4.79

13

SCREW

7512024

$4.79

14

CABLE, SOLENOID/STARTER

4010376

$47.99

15

MOUNT, CABLE TIE

7080965

$7.19

16

CLIP, ROSEBUD

4020139

$4.79

17

Gasket, Taillight

4032045

$4.03

18

Bulb, Taillight

4030043

$6.46

19

Screw, Taillight

4032029

$4.79

20

Lens, Taillight

4032046

$32.37

21

Backing, Taillight/Brake Light

4032064

$83.99

22

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

25

BOLT

7512007

$3.99

26

Nut, Nylok

7541925

$1.49

27

Coil, Ignition

4010898

$169.99

28

Controller, Ignition

4011017

$311.99

29

Screw

7512084

$1.49

30

Module, Controller

4011044

Unavailable

31

Kit, Harness, Resistor Module

2204890

$127.99

32

Kit, Fusible Link

2202147

$79.99

32

Harness, Main

2410556

$363.99

33

Harness, Winch

2410535

$93.08
