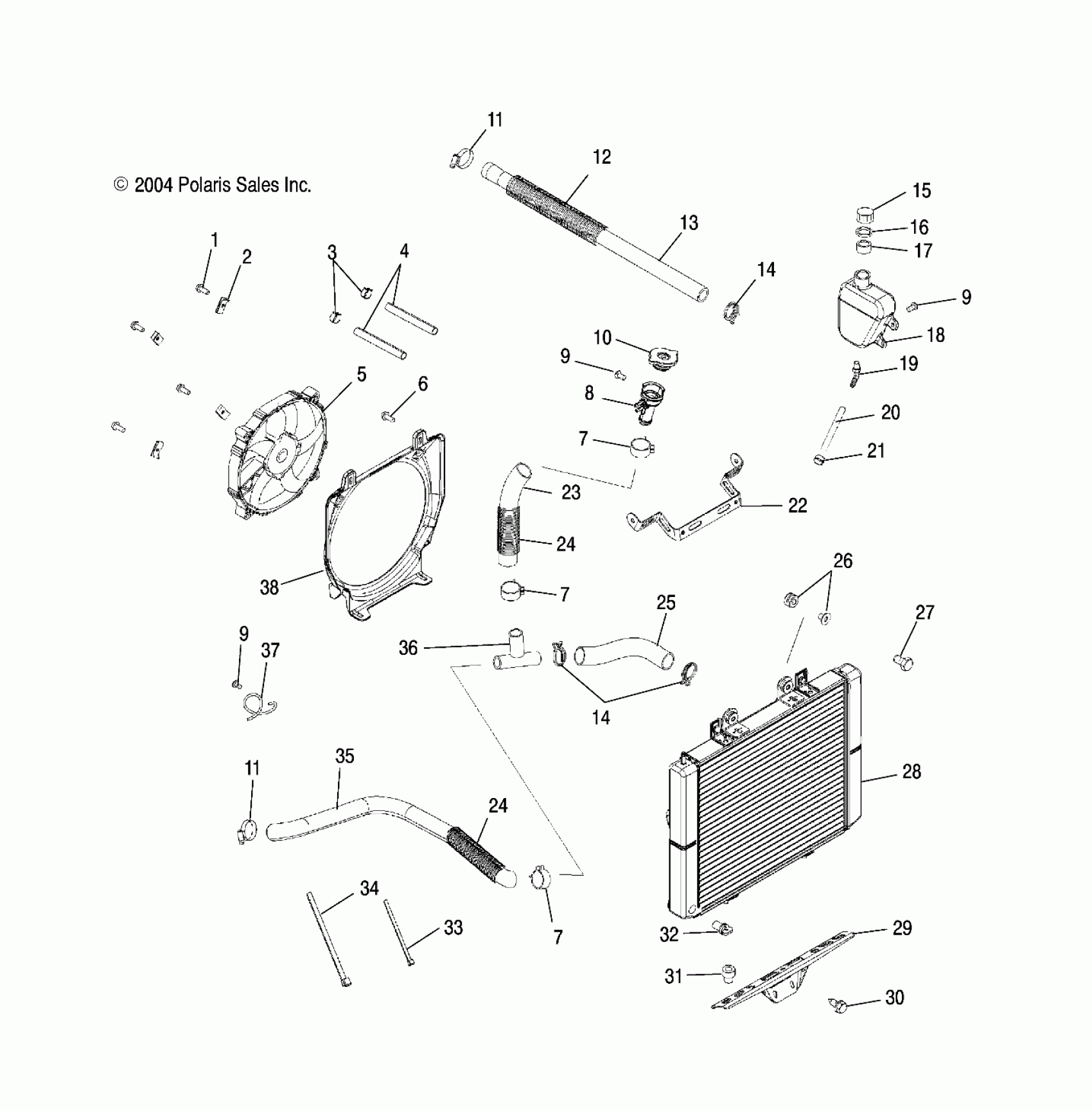

Polaris SPORTSMAN MV7 - A05MH68AP COOLING SYSTEM - A05MH68AP (4999609960B01) Diagram

#

Description
Price

1

Bolt

7517975

$5.56

2

U-Clip

7547197

$6.19

3

HOSE CLAMP, RED

7080003

$1.19

4

Line

8450040

$72.84

5

ASM., FAN

2410413

$267.13

6

Screw w/Washer

7547220

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

10

Cap, Pressure

1240044

$48.56

11

CLAMP, HOSE

7081174

$7.14

11

CLAMP, HOSE

7081174

$7.14

12

Guard, Hose, 9 Inch

5521597

Unavailable

13

Hose, Engine, Upper

5412391

$44.51

14

Clamp

7080826

$4.76

14

Clamp

7080826

$4.76

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

Tank, Surge

5431673

$80.94

19

FITTING, 90 DEGREE

7052065

$7.14

20

Line, Fuel

8450003-1525

$89.99

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

22

Bracket, Radiator Mount, Upper

5246656

Unavailable

23

Hose, Filler Neck

5412311

$21.99

24

Guard, Hose, 6.75 Inch

5521644

Unavailable

24

Guard, Hose, 6.75 Inch

5521644

Unavailable

25

Hose, Lower Radiator

5412392

Unavailable

26

ASM., GROMMET AND INSERT

5411975

$3.17

27

Screw

7515179

$2.38

28

Radiator

1240190

$461.41

29

Bracket, Radiator, Lower, Black

5245773-067

Unavailable

30

SCREW

7517386

$1.19

31

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

32

Valve, Drain

7052296

Unavailable

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

35

Hose, Engine, Lower

5412585

$56.65

36

T-Connector

7052342

$23.81

37

Retainer, Hose

7042089

$6.98

38

Shroud, Fan

5434853

Unavailable
