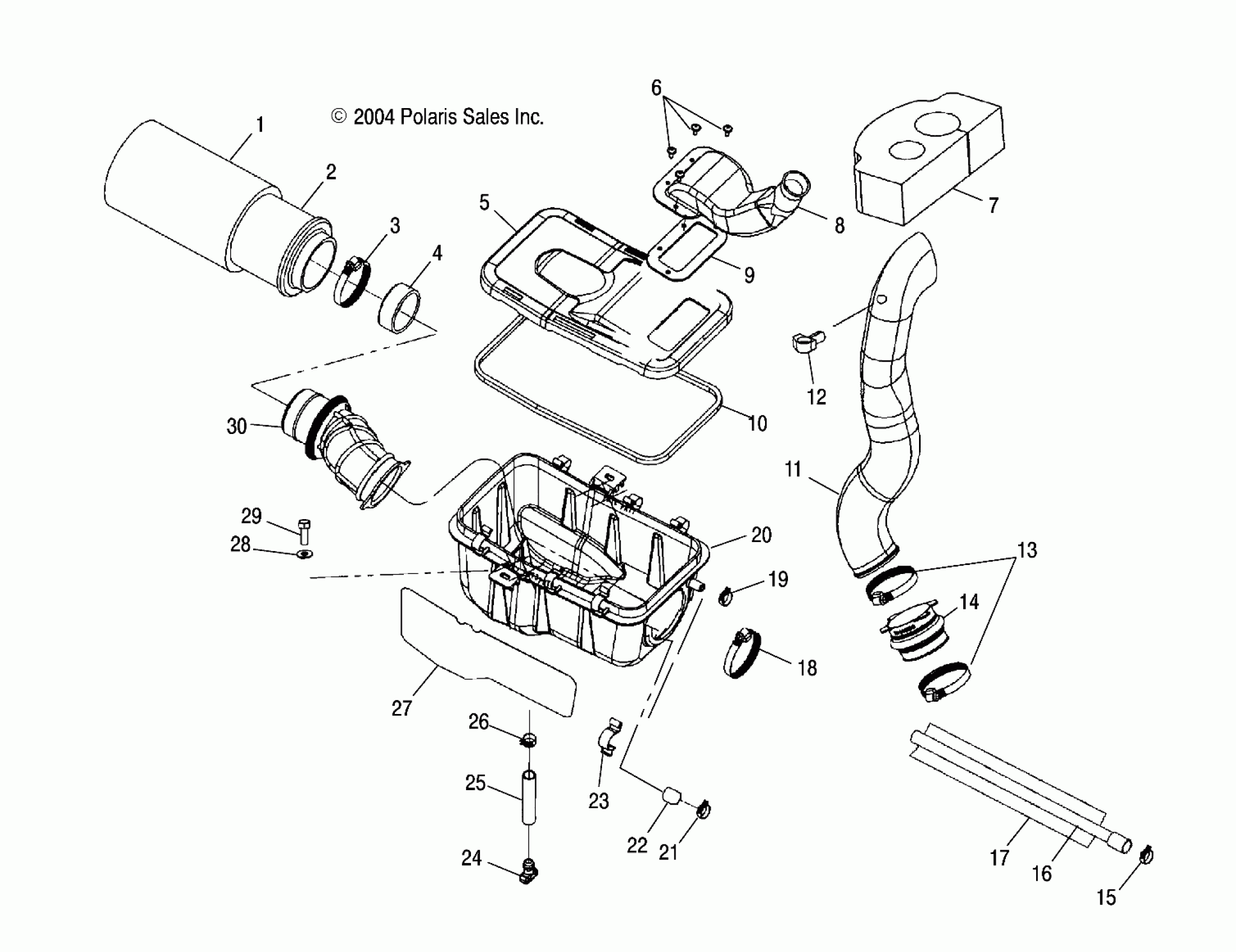

Polaris SPORTSMAN MV7 - A05MH68AP AIR BOX - A05MH68AP (4999609960B05) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.90

2

Filter, Air

7080595

$27.78

3

Clamp, Narrow Band

7080413

$3.17

4

Sleeve, Carburetor, Inner

5433847

$14.56

5

Cover, Air Box

5432868

$56.65

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

7

Seal, Foam

5812775

Unavailable

8

Duct, Air Inlet

5434013

Unavailable

9

Gasket, Intake

5411422

$6.59

10

Seal, Cover

5811482

$28.32

11

Duct, Clutch Air Inlet

5434044

Unavailable

12

Clip

7670102

$2.38

13

CLAMP, HOSE

7080451

$7.14

14

BOOT, INTAKE [SEE ENGINE MOUNTING PG. B4, REF. 23]

----

Unavailable

15

Clamp, Hose, Spring

7080694

$6.64

16

Hose, Breather

5412615

$42.74

17

Sheath, Reflective Sleeve

8450108-34

Unavailable

18

Clamp, Narrow Band

7080511

$4.76

19

Clamp, Hose

7080699

$1.59

20

Box, Air

5433678

$137.60

21

Clamp, Hose

7080534

$1.59

22

Cap, End

5433396

$4.84

23

CLIP-AIR BOX

5242044

$9.52

24

Plug, Trap

5432377

Unavailable

25

Line, Fuel

8450059-150

Unavailable

26

Clamp, Hose

7080650

$3.97

27

Foil

5811650

Unavailable

28

Washer, Flat

7558301

$1.19

29

Screw

7515179

$2.38

30

Boot, Carburetor

5412066

$40.46
