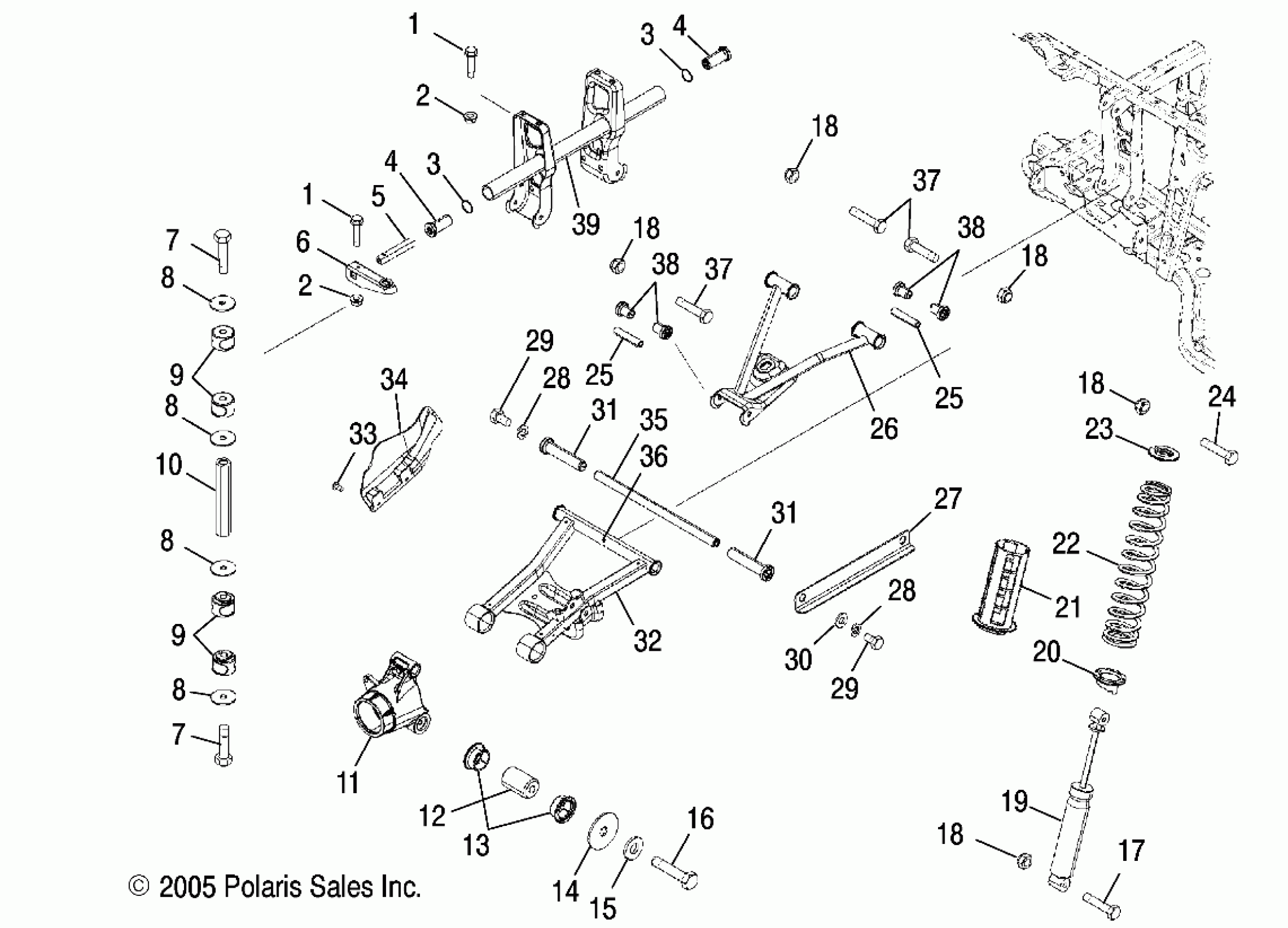

Polaris SPORTSMAN 800 EFI - A06MH76AL SUSPENSION, REAR - A06MH76AL/AQ/AT/AX/AY/AZ (4999200299920029C11) Diagram

#

Description
Price

1

BOLT, FLANGE

7518341

$4.76

1

BOLT, FLANGE

7518341

$4.76

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

3

Washer

7555939

$3.97

3

Washer

7555939

$3.97

4

Bushing, Stabilizer Tube

5434549

$8.73

4

Bushing, Stabilizer Tube

5434549

$8.73

5

BAR, STABILIZER TUBE, BLACK

5334114-067

$116.17

6

Arm, Stabilizer Bar, Black

1580107-067

$62.92

7

SCREW

7517231

$7.14

7

SCREW

7517231

$7.14

8

WASHER

7555761

$2.38

8

WASHER

7555761

$2.38

8

WASHER

7555761

$2.38

8

WASHER

7555761

$2.38

9

Bushing, Stabilizer, Link

5432598

$6.35

9

Bushing, Stabilizer, Link

5432598

$6.35

10

ROD, LINKAGE, STABILIZER

5020827

$52.60

11

Carrier, Wheel Bearing

5134206

$137.74

12

Bushing, Bearing Carrier

5631142

$23.81

13

Bushing, Control, Lower

5434550

$4.76

14

WASHER, FLAT

7555740

$1.59

15

WASHER-LOCK, 7/16-B

7552614

$1.59

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

17

Screw

7515415

$1.19

18

Nut, Nylok

7542439

$1.19

18

Nut, Nylok

7542439

$1.19

18

Nut, Nylok

7542439

$1.19

18

Nut, Nylok

7542439

$1.19

18

Nut, Nylok

7542439

$1.19

19

Shock, Rear [If built after 7/29/05]

7043100

$97.76

19

Shock, Rear [If built before 7/29/05]

7041959

$137.76

20

Cam, Adjusting, Spring [If built after 7/29/05]

5630551

$36.41

20

Cam, Adjusting, Spring [If built before 7/29/05]

5631014

$36.41

21

Sleeve, Shock Protector [If Built Before 7/29/05]

5433551

$44.51

22

Spring, Compression, Rear, Black [AQ][AT]

7043091-067

$97.76

22

Spring, Compression, Rear, Red

7043091-293

$97.76

23

Retainer, Spring

5630885

$10.32

24

Screw

7515433

$1.59

25

SHAFT, A-ARM, SHORT

5020826

$12.13

25

SHAFT, A-ARM, SHORT

5020826

$12.13

26

Arm, Control, Upper, Red, LH

1014320-293

Unavailable

26

Arm, Control, Upper, Red, RH

1014321-293

$121.02

26

Arm, Control, Upper, Black, LH [AQ][AT]

1014320-067

$116.17

26

Arm, Control, Upper, Black, RH [AQ][AT]

1014321-067

$116.17

27

Strap, Black

5245140-067

Unavailable

28

Washer, Spring Lock

7552603

$0.79

28

Washer, Spring Lock

7552603

$0.79

29

Screw

7512492

$1.19

29

Screw

7512492

$1.19

30

WSHR-.813X.406X.105-Y

7555832

$2.38

31

Bushing, A-Arm, Long

5434551

$5.56

31

Bushing, A-Arm, Long

5434551

$5.56

32

Arm, Control, Lower, Red, LH

1015117-293

$145.22

32

Arm, Control, Lower, Red, RH

1015118-293

$150.06

32

Arm, Control, Lower, Black, LH [AQ][AT]

1015117-067

$145.22

32

Arm, Control, Lower, Black, RH [AQ][AT]

1015118-067

$145.22

33

Screw

7512084

$1.19

34

SHIELD, CV, REAR, BLACK, LH

5435008-070

$24.27

34

SHIELD, CV, REAR, BLACK, RH

5435009-070

$24.27

35

Shaft, A-Arm

5133806

$33.24

36

Fitting, Lub

7080433

$1.19

37

BOLT

7515472

$2.38

37

BOLT

7515472

$2.38

38

Bushing, A-Arm, Short

5434548

$2.38

38

Bushing, A-Arm, Short

5434548

$2.38

39

Support, Stabilizer, Black

1541801-067

$125.46
