Partiron

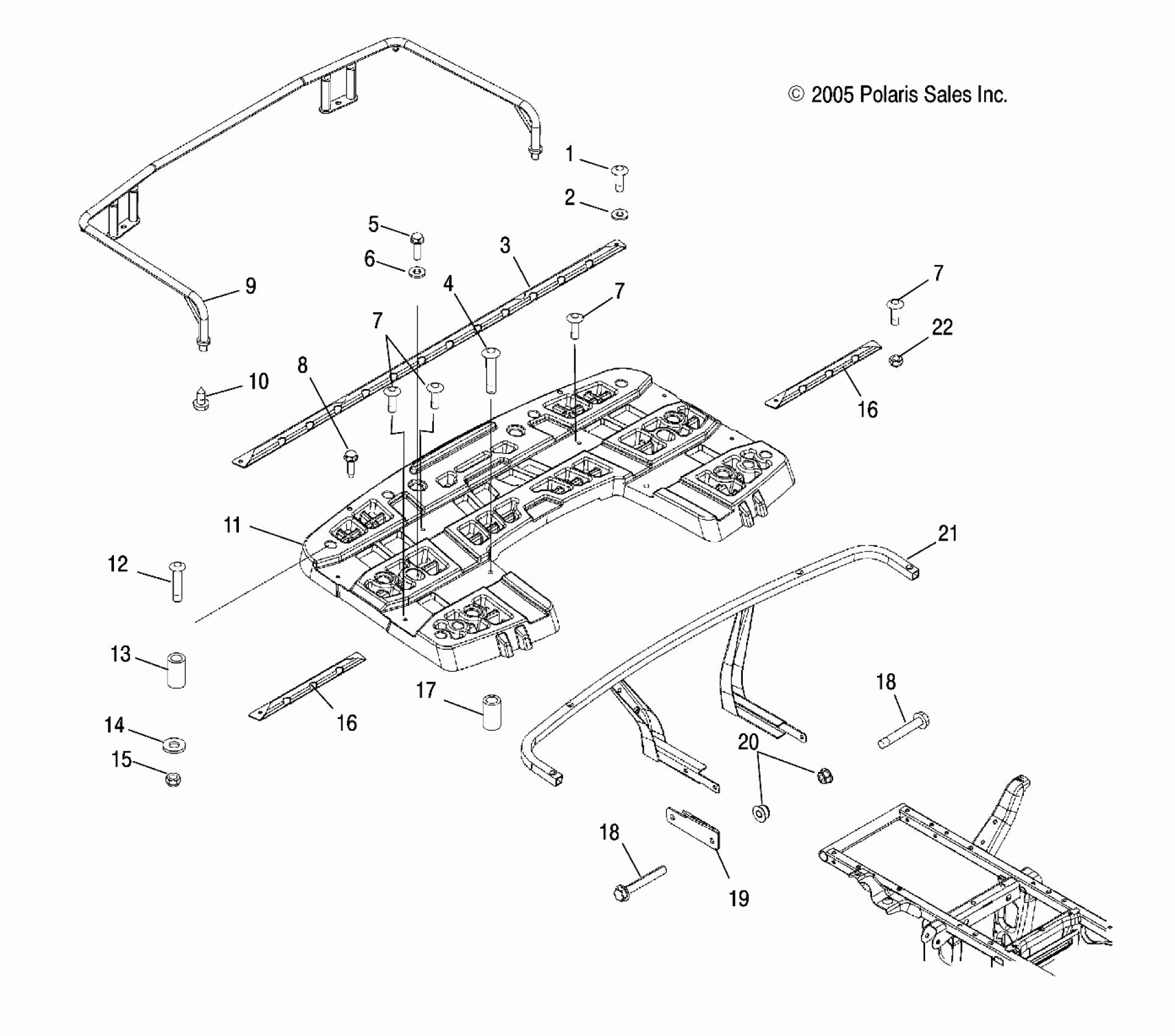

Polaris SPORTSMAN 800 EFI - A06MH76AL RACK MOUNTING, REAR - A06MH76AL/AQ/AT/AX/AY/AZ (4999200299920029A05) Diagram

#

Description
Price

1

Screw

7518506

Unavailable

2

Washer

7555935

$2.38

3

Channel, Rear Rack, Flat Black Wrinkle

5248469-418

Unavailable

4

Screw

7517983

$9.52

5

Screw

7512095

$4.76

6

Washer

7555798

$0.79

7

SCREW

7517230

$1.19

7

SCREW

7517230

$1.19

7

SCREW

7517230

$1.19

8

Screw

7518505

$1.19

9

Extender, Rear Rack, Flat Black Wrinkle

1014768-418

$259.99

10

SCREW

7517208

$1.98

11

Asm., Rack, Rear, Black [Incl. Warning Decal and Reflectors]

2633207-070

$354.99

12

SCREW

7518462

$2.38

13

Spacer

5436146

Unavailable

14

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

15

NUT-5/16-18 NYLOK-Y

7542324

$0.79

16

Channel, Rear Rack, Front, Flat Black Wrinkle

5248471-418

$23.81

16

Channel, Rear Rack, Front, Flat Black Wrinkle

5248471-418

$23.81

17

Spacer

5334787

Unavailable

18

BOLT, FLANGE

7518341

$4.76

18

BOLT, FLANGE

7518341

$4.76

19

BRACKET, SILENCER, FRAME

5241663

$10.51

20

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

21

SUPPORT, REAR RACK, BLACK

1014668-067

$289.99

22

Nut, Nylok, Flange

7542153

$1.59
