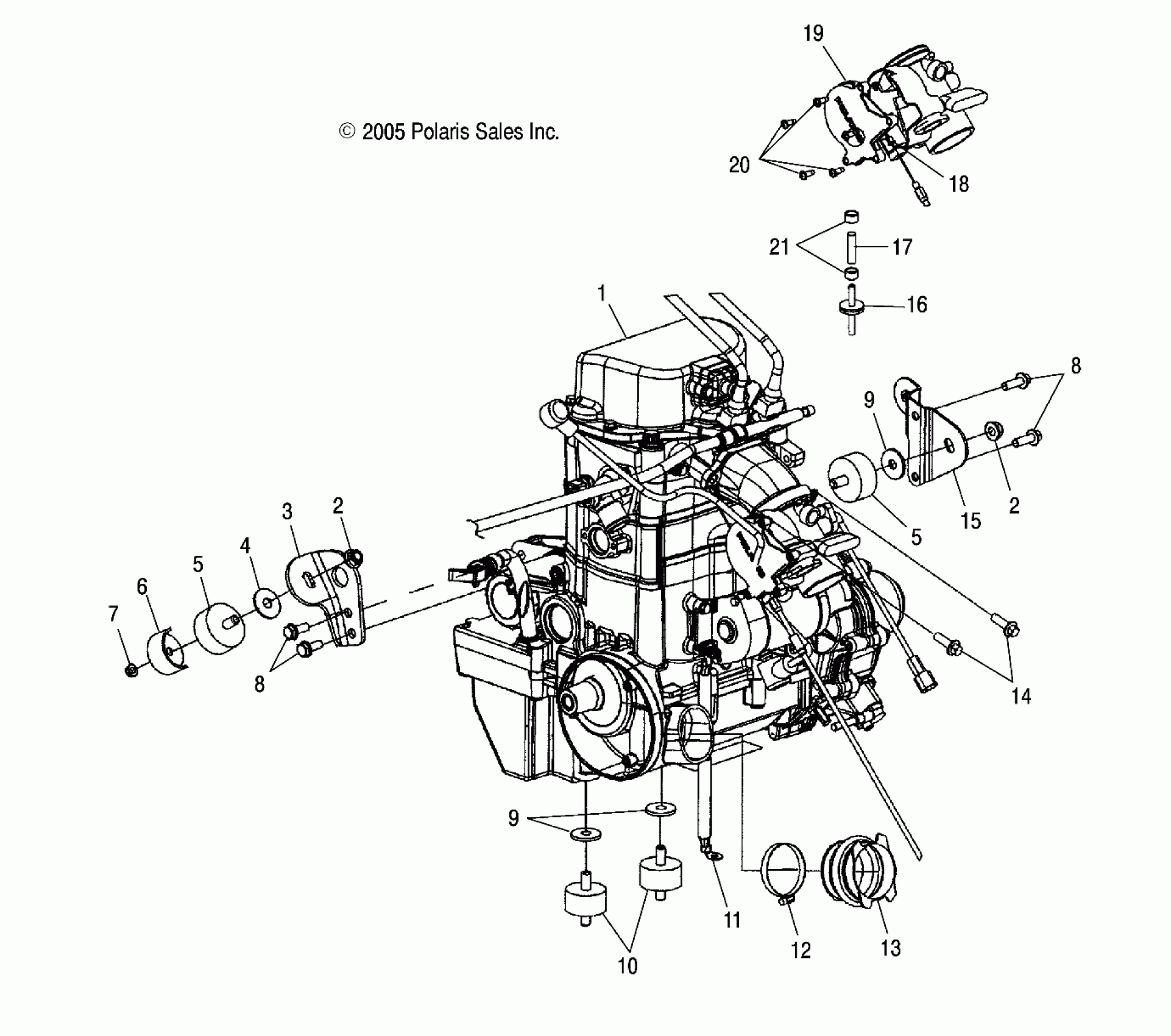

Polaris SPORTSMAN 800 EFI - A06MH76AL ENGINE MOUNTING - A06MH76AL/AQ/AT/AX/AY/AZ (4999200299920029A12) Diagram

Kit, Short Block, 800 EFI NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warr

2203066

Unavailable

NUT, FLANGE LOCK

7547108

$4.79

NUT, FLANGE LOCK

7547108

$4.79

MOUNT, ENGINE, LOWER, FRONT, BLACK

5244771-067

$127.59

WASHER

7555823

Unavailable

Mount, Rubber, Top

3110044

Unavailable

Mount, Rubber, Top

3110044

Unavailable

BRACKET, TORQUE STOP

5245043

$15.83

NUT-3/8-24 FLG LOC

7547263

$3.19

Bolt

7518364

$1.59

Bolt

7518364

$1.59

WASHER, FLAT

7555815

$3.99

WASHER, FLAT

7555815

$3.99

Mount, Rubber, Rear

3021119

Unavailable

Cable, Ground, Starter/Frame

4011139

$43.99

CLAMP, HOSE

7080451

$7.19

BOOT, INTAKE

5412634

$11.19

SCREW

7516734

$3.19

BRACKET, MOUNT, ENGINE, TOP

5247368

$43.99

VALVE, CHECK

7052038

$10.51

Tubing

8350018-160

Unavailable

Guide, Throttle Cable

3131514

Unavailable

ASM., COVER AND O-RING

1202578

Unavailable

SCREW

3131515

$10.39

CLAMP, HOSE

7080236

$1.59
