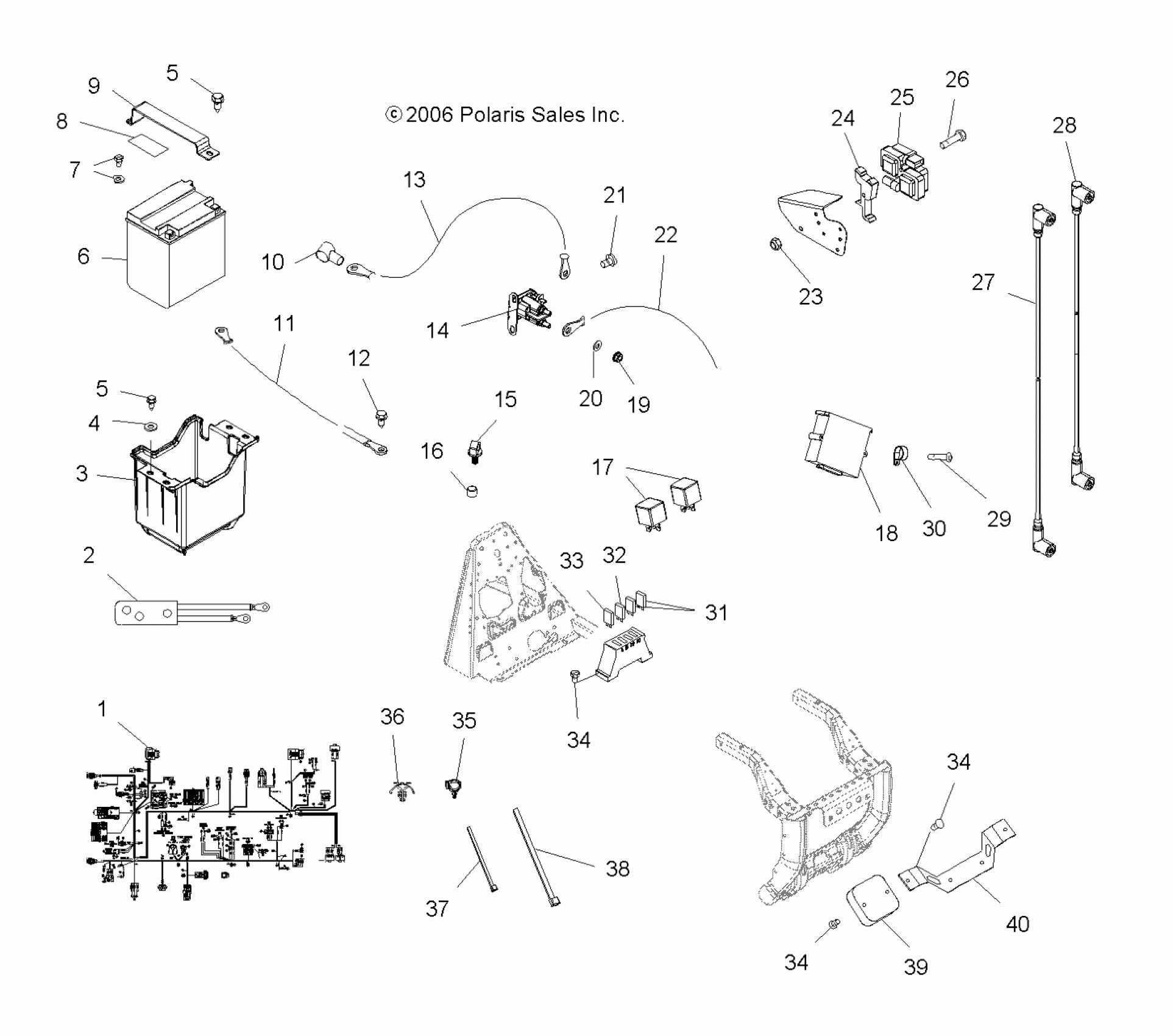

Polaris SPORTSMAN 800 EFI - A06MH76AL ELECTRICAL - A06MH76AL/AQ/AT/AX/AY/AZ (4999200299920029C12) Diagram

#

Description
Price

1

Kit, Fusible Link, 1.0mm

2202670

$44.99

1

KIT, HARNESS, T-BAP

2875542

$137.74

1

Kit, Harness, TPS

2203801

$140.38

1

DECAL, FUSE BLOCK

7171032

Unavailable

1

Kit, Harness, Engine Temp

2875543

$135.54

1

KIT, HARNESS, CPS

2878077

$137.74

1

KIT, FUSIBLE LINK, .8MM

2202607

$39.68

1

Kit, Harness, Resistor Module

2204890

$161.49

1

Breaker, Circuit, 20 AMP

2410323

$68.79

1

Harness, Main [Incl. Resistor, Breaker, Harness Kits, Fuse Link Kits, Decal, 31,32,33]

2410528

Unavailable

2

Harness, Winch

2410535

$93.08

3

BOX, BATTERY

5435696

$23.74

4

Washer, Flat

7555859

$1.19

5

Bolt

7512232

$1.19

5

Bolt

7512232

$1.19

6

Battery

4010595

$199.98

7

KIT, BATTERY BOLT

2202213

$3.79

8

PAD, RACK MOUNT

5810455

$3.22

9

STRAP, BATTERY HOLDDOWN

5247376

$15.19

10

Boot, Battery Cable, Rect

5412874

Unavailable

11

CABLE, BATTERY/FRAME

4011139

$44.51

12

SCREW

7517386

$1.19

13

CABLE, BATTERY/SOLENOID

4011286

$40.46

14

Switch, Magnetic

4011251

$76.89

15

Clip

5432302

Unavailable

16

Bushing

7080399

Unavailable

17

RELAY

4011141

$84.43

18

ECU

4011511

Unavailable

19

Nut, Hex, Jam

7547283

$3.17

20

WASHER, SPRING LOCK

7552801

$1.59

21

Screw

7512084

$1.19

22

CABLE, SOLENOID/STARTER

4010376

$48.56

23

NUT

7542122

$1.19

24

SPACER-COIL MOUNT

5436577

$3.97

25

Kit, Ignition Coil (Incl. 23-26)

2876049

$242.84

26

SCREW

7515156

$3.97

27

Wire, Spark Plug

4011365

$47.62

28

Wire, Spark Plug

4011364

$60.70

29

SCR-TXPH-10-24X2 CHS ZY3

7518486

$3.17

30

CLAMP

7080585

$3.97

31

Fuse, Self Resetting, 20 Amp

2410365

Unavailable

32

Fuse, Self Resetting, 15 Amp

2410364

$43.56

33

Fuse, Self Resetting, 6 Amp

2410363

Unavailable

34

SCREW

7512024

$4.76

34

SCREW

7512024

$4.76

34

SCREW

7512024

$4.76

35

Clip, Rosebud

4020149

$6.35

36

MOUNT, CABLE TIE

7080965

$7.27

37

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

38

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

39

Regulator, Volt

4011100

$256.57

40

Bracket, Voltage Regulator

5248725

Unavailable
