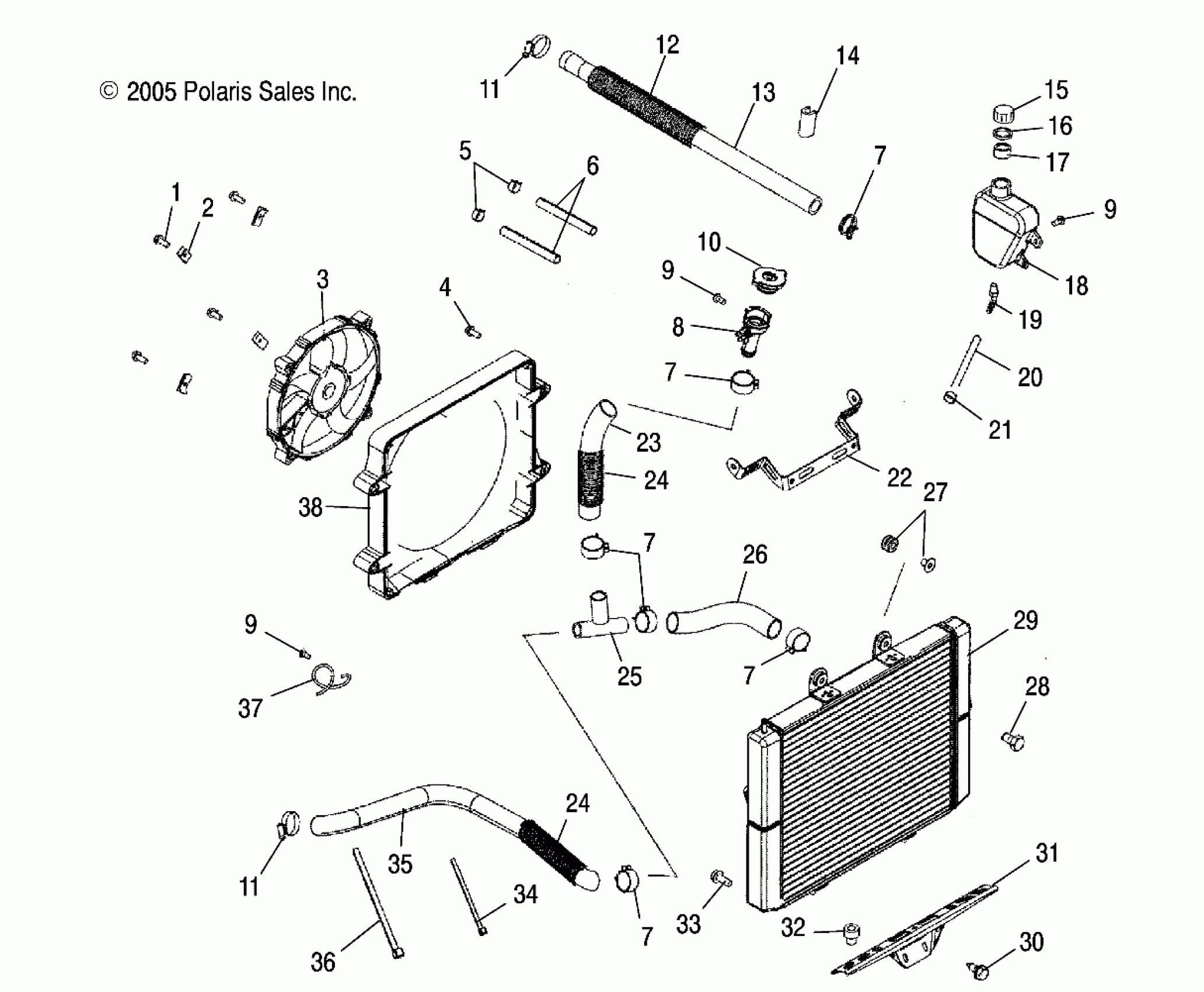

Polaris SPORTSMAN 800 EFI - A06MH76AL COOLING SYSTEM - A06MH76AL/AQ/AT/AX/AY/AZ (4999200299920029A11) Diagram

#

Description
Price

1

Bolt

7517975

$5.56

2

U-Clip

7547197

$6.19

3

Asm., Fan

2410366

Unavailable

4

Screw w/Washer

7547220

Unavailable

5

HOSE CLAMP, RED

7080003

$1.19

6

Line

8450040-600

$72.84

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

7

Clamp

7081288

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

9

Screw

7512084

$1.19

10

Cap, Pressure

1240044

$48.56

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

12

Guard, Hose

5521597

Unavailable

13

Hose, Engine, Upper

5412391

$44.51

14

Trim, Edge

5521131

Unavailable

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

Tank, Surge

5431673

$80.94

19

FITTING, 90 DEGREE

7052065

$7.14

20

Line, Fuel

8450003-1525

$89.99

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

22

Bracket, Radiator Mount, Upper

5246656

Unavailable

23

Hose, Filler Neck

5412311

$21.99

24

Guard, Hose

5521644

Unavailable

24

Guard, Hose

5521644

Unavailable

25

T-Connector

7052397

$23.81

26

Hose, Lower Radiator

5412392

Unavailable

27

ASM., GROMMET AND INSERT

5411975

$3.17

28

Screw

7515179

$2.38

29

Radiator

1240190

$461.41

30

SCREW

7517386

$1.19

31

Bracket, Radiator, Lower, Black

5245773-067

Unavailable

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

33

Valve, Drain

7052296

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Hose, Engine, Lower

5412585

$56.65

36

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

37

Retainer, Hose

7042089

$6.98

38

Shroud, Fan

5434853

Unavailable
