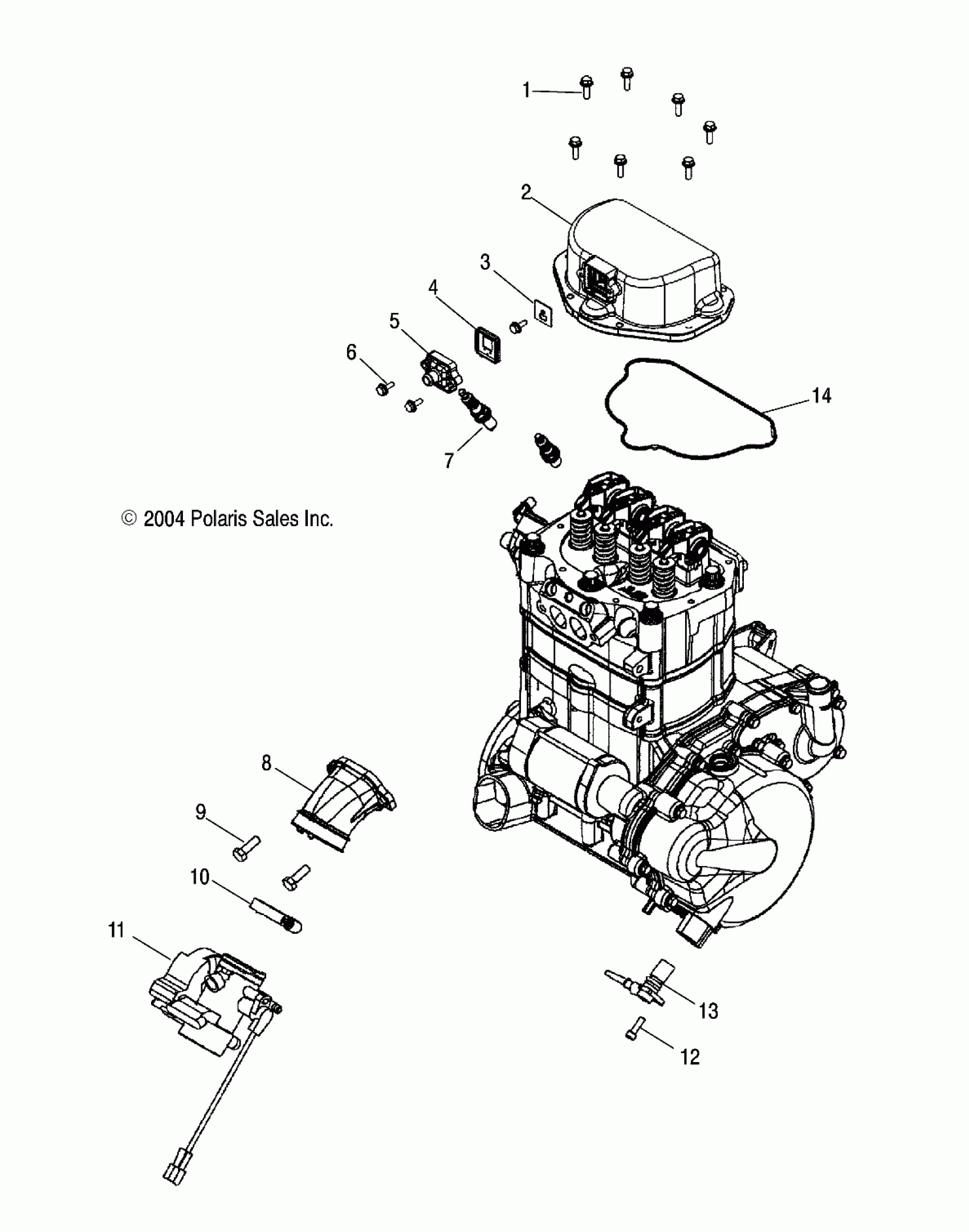

Polaris SPORTSMAN 800 EFI - A05MH76AC/AU/AW THROTTLE BODY MOUNTING - A05MH76AC/AT/AU/AW (4977217721E01) Diagram

#

Description
Price

1

SCREW

7516822

$2.39

2

Cover, Valve

5134427

Unavailable

3

Plate, Breather

5248146

Unavailable

4

Gasket, Breather

5412730

$50.18

5

Cover, Breather

5432533

Unavailable

6

SCREW

7517277

$3.19

7

Plug, Spark, Champion RC7YC

3070195

Unavailable

8

Adapter, Throttle Body

1253564

Unavailable

9

Screw

7517666

$6.99

10

Clamp, Hose

7081193

Unavailable

11

Asm., Body, Throttle

1202836

Unavailable

11

Sensor, Throttle Position [Must also order O-Ring]

2410342

Unavailable

11

O-Ring, TPS [Used w/2410342]

5413812

$1.99

12

Screw

7517384

$8.79

13

Sensor, Crank Position

2410513

$99.99

14

Seal, Valve Cover

5412632

Unavailable
