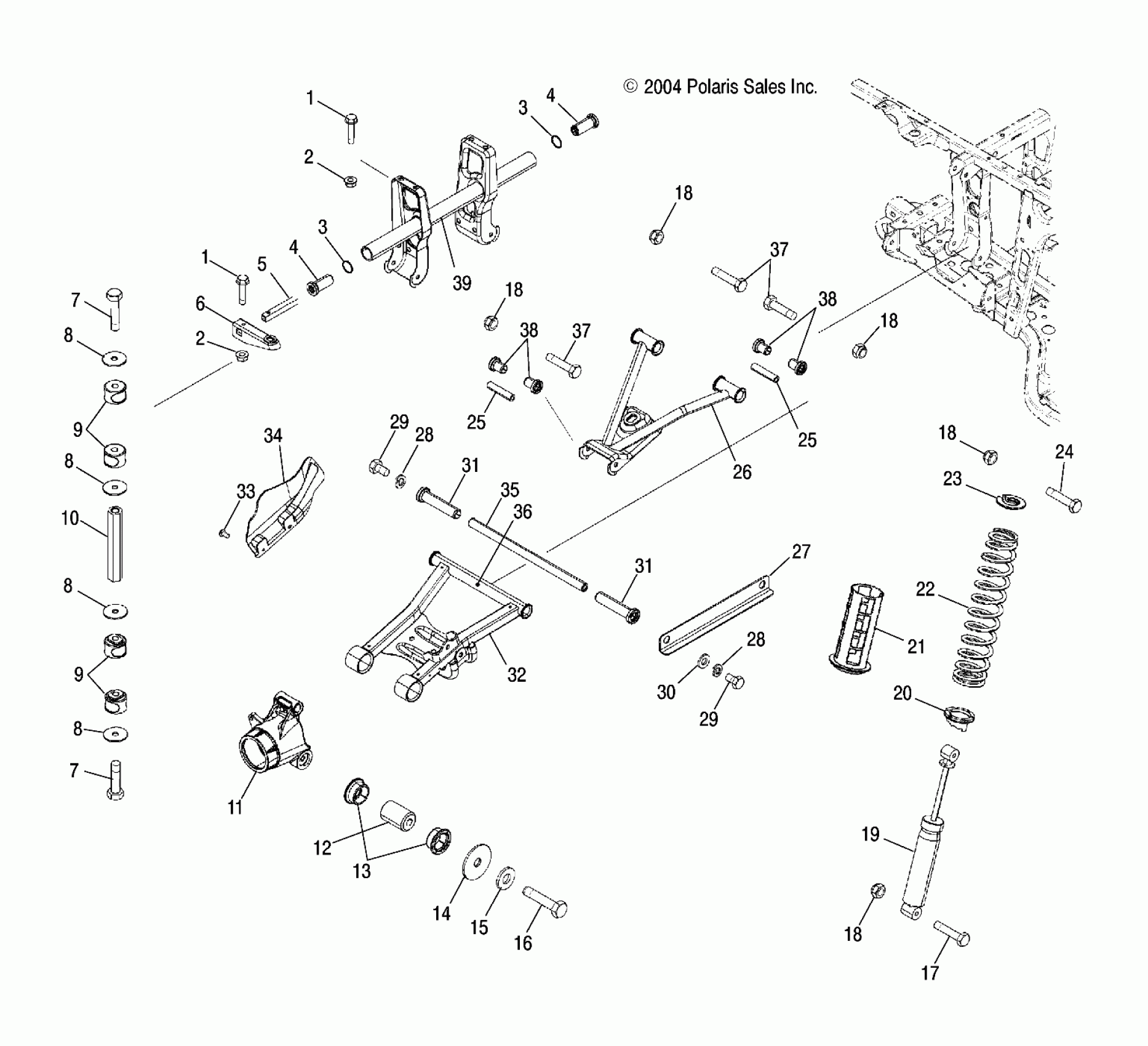

Polaris SPORTSMAN 800 EFI - A05MH76AC/AU/AW SUSPENSION, REAR - A05MH76AC/AT/AU/AW (4977217721D01) Diagram

#

Description
Price

1

BOLT, FLANGE

7518341

$4.79

1

BOLT, FLANGE

7518341

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

Washer

7555939

Unavailable

3

Washer

7555939

Unavailable

4

Bushing, Stabilizer Tube

5434549

$8.48

4

Bushing, Stabilizer Tube

5434549

$8.48

5

BAR, STABILIZER TUBE, BLACK

5334114-067

$111.33

6

Arm, Stabilizer Bar, Black

1580107-067

$62.92

7

SCREW

7517231

$7.19

7

SCREW

7517231

$7.19

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

9

Bushing, Stabilizer, Link

5432598

$6.39

9

Bushing, Stabilizer, Link

5432598

$6.39

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

11

Carrier, Wheel Bearing

5134206

$115.99

12

Bushing, Bearing Carrier

5631142

$23.16

13

Bushing, Control, Lower

5434550

$4.62

14

WASHER, FLAT

7555740

$1.59

15

WASHER-LOCK, 7/16-B

7552614

$1.59

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

17

Screw

7515415

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

19

Shock, Rear

7041959

$123.99

20

Cam, Adjusting, Spring (If built before 9/06/04)

5630551

$31.99

20

Cam, Adjusting, Spring (If built after 9/06/04)

5631014

$31.99

21

Sleeve, Shock Protector

5435273

Unavailable

22

Spring, Compression, Rear, Black [AC](AT)

7042311-067

$94.99

22

Spring, Compression, Rear, Red [AW][AU]

7042311-293

$94.99

23

Retainer, Spring

5630885

$10.03

24

Screw

7515433

$1.59

25

SHAFT, A-ARM, SHORT

5020826

$11.99

25

SHAFT, A-ARM, SHORT

5020826

$11.99

26

Arm, Control, Upper, Red, LH [AW][AU]

1014320-293

Unavailable

26

Arm, Control, Upper, Red, RH [AW][AU]

1014321-293

$121.02

26

Arm, Control, Upper, Black, LH [AC](AT)

1014320-067

$95.99

26

Arm, Control, Upper, Black, RH [AC](AT)

1014321-067

$95.99

27

Strap, Black

5245140-067

Unavailable

28

Washer, Spring Lock

7552603

$1.49

28

Washer, Spring Lock

7552603

$1.49

29

Screw

7512492

$1.49

29

Screw

7512492

$1.49

30

WSHR-.813X.406X.105-Y

7555832

$2.39

31

Bushing, A-Arm, Long

5434551

$5.01

31

Bushing, A-Arm, Long

5434551

$5.01

32

Arm, Control, Lower, Red, LH [AW][AU](If built after 1/01/05)

1015117-293

Unavailable

32

Arm, Control, Lower, Red, RH [AW][AU](If built after 1/01/05)

1015118-293

Unavailable

32

Arm, Control, Lower, Black, LH [AC](If built after 1/01/05)(AT)

1015117-067

Unavailable

32

Arm, Control, Lower, Black, RH [AC](If built after 1/01/05)(AT)

1015118-067

Unavailable

32

Arm, Control, Lower, Black, LH [AC](If built before 1/01/05)

1014174-067

Unavailable

32

Arm, Control, Lower, Black, RH [AC](If built before 1/01/05)

1014175-067

Unavailable

32

Arm, Control, Lower, Red, LH [AW][AU](If built before 1/01/05)

1014174-293

Unavailable

32

Arm, Control, Lower, Red, RH [AW][AU](If built before 1/01/05)

1014175-293

Unavailable

33

Screw

7512084

$1.49

34

Shield, CV, Rear, Black, LH

5434890-1038

Unavailable

34

Shield, CV, Rear, Black, RH

5434891-1038

Unavailable

35

Shaft, A-Arm

5133806

$30.79

36

Fitting, Lub

7080433

$1.49

37

BOLT

7515472

$2.39

37

BOLT

7515472

$2.39

38

Bushing, A-Arm, Short

5434548

$2.38

38

Bushing, A-Arm, Short

5434548

$2.38

39

Support, Stabilizer, Black

1541801-067

$117.37
