Description

Price

1

SCREW

7515399

$1.49

1

SCREW

7515399

$1.49

1

SCREW

7515399

$1.49

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

3

BOLT, FLANGE

7518341

$4.79

3

BOLT, FLANGE

7518341

$4.79

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

5

Guard, Brush, Black

1014635-067

$439.99

6

Cover, Radiator

5435629

$48.56

7

Latch, RH

7081242

Unavailable

7

Latch, LH

7081241

$23.99

8

SCREW

7512076

$1.49

9

Latch, Wire

5334257

$10.03

9

Latch, Wire

5334257

$10.03

10

Shield, Side, Radiator, LH

5434314

$44.99

10

Shield, Side, Radiator, RH

5434315

Unavailable

10

Shield, Side, Radiator, LH

5434314

$44.99

10

Shield, Side, Radiator, RH

5434315

Unavailable

11

Rivet

7661855

$1.49

12

Grommet, Rubber Mount

5412504

$3.99

13

Cover, Radiator

5435046

$47.99

14

Grill, Brush Guard, Black

5247507-067

$64.99

15

Screw

7518046

$4.79

16

Decal, Amber Reflector, LH

7172687

Unavailable

16

Decal, Amber Reflector, RH

7172688

Unavailable

17

Cover, Bumper, ACC, LH (If built before 11/22/04)

5435701

Unavailable

17

Cover, Bumper, ACC, RH (If built before 11/22/04)

5435702

$44.99

18

Panel, Bumper, Front, Black (AT)

5436044-070

Unavailable

18

Panel, Bumper, Front, Black

5435357-070

$52.60

19

Screw

7518383

$3.99

20

Bolt

7518382

$4.79

21

Washer, Flat

7556341

$1.64

22

Asm., Bumper, Front, Black [Incl. Warning Decal](If built before 11/22/04)

2632865-070

$224.99

22

Asm., Bumper, Front, Black [Incl. Warning Decal](If built after 11/22/04)

2633178-070

$224.99

23

Asm., Box, Lower, Front

1202838

$364.99

24

Plug, Compartment

5412352

Unavailable

25

Seal, Radiator Cover

5812778

Unavailable

26

Cover, Strut

5435628

$35.99

27

WASHER, FLAT

7555960

$3.99

28

SCREW

7517208

$1.99

29

Seal

5521693

$27.99

30

Seal, Lid/Bumper

5521706

$28.32

31

Pin, Hinge, Front

5134576

$6.39

31

Pin, Hinge, Front

5134576

$6.39

32

Asm., Front Cover [Incl. 30 and Warning Decal]

2633157

$142.85

33

Nut, Nylok

7542122

$1.49

34

Screw

7518427

$1.49

35

Channel, Lid, Front, Flat Black Wrinkle

5247653-418

$72.60

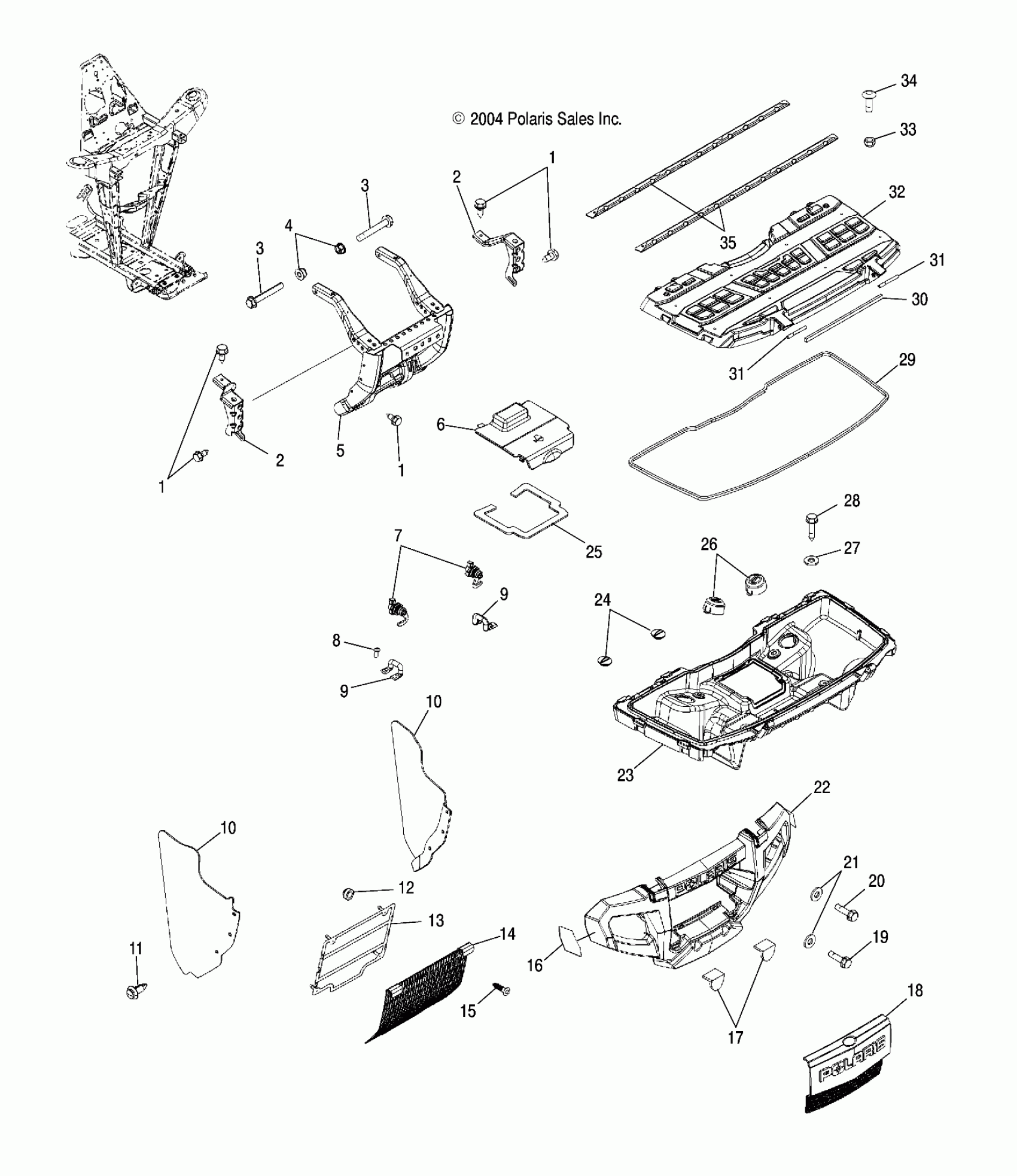

Polaris SPORTSMAN 800 EFI - A05MH76AC/AU/AW STORAGE, FRONT and BUMPER MOUNTING - A05MH76AC/AT/AU/AW (4977217721A07) Diagram

SCREW

SCREW

SCREW

Support, Rack, Black, RH

Support, Rack, Black, LH

Support, Rack, Black, RH

Support, Rack, Black, LH

BOLT, FLANGE

BOLT, FLANGE

NUT-5/16-18 HX FLG NL-Y

Guard, Brush, Black

Cover, Radiator

Latch, RH

Latch, LH

SCREW

Latch, Wire

Latch, Wire

Shield, Side, Radiator, LH

Shield, Side, Radiator, RH

Shield, Side, Radiator, LH

Shield, Side, Radiator, RH

Rivet

Grommet, Rubber Mount

Cover, Radiator

Grill, Brush Guard, Black

Screw

Decal, Amber Reflector, LH

Decal, Amber Reflector, RH

Cover, Bumper, ACC, LH (If built before 11/22/04)

Cover, Bumper, ACC, RH (If built before 11/22/04)

Panel, Bumper, Front, Black (AT)

Panel, Bumper, Front, Black

Screw

Bolt

Washer, Flat

Asm., Bumper, Front, Black [Incl. Warning Decal](If built before 11/22/04)

Asm., Bumper, Front, Black [Incl. Warning Decal](If built after 11/22/04)

Asm., Box, Lower, Front

Plug, Compartment

Seal, Radiator Cover

Cover, Strut

WASHER, FLAT

SCREW

Seal

Seal, Lid/Bumper

Pin, Hinge, Front

Pin, Hinge, Front

Asm., Front Cover [Incl. 30 and Warning Decal]

Nut, Nylok

Screw

Channel, Lid, Front, Flat Black Wrinkle
