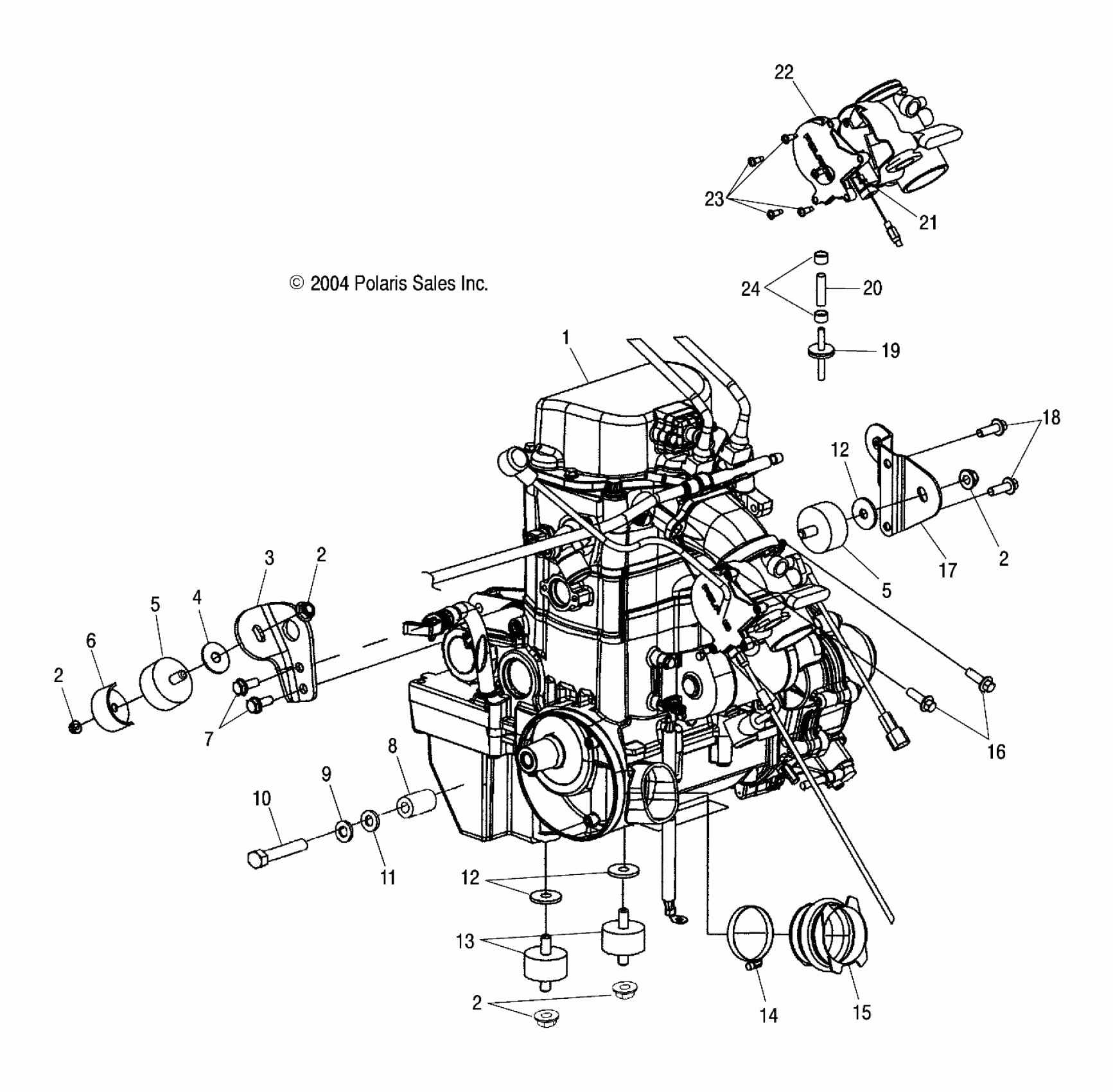

Polaris SPORTSMAN 800 EFI - A05MH76AC/AU/AW ENGINE MOUNTING - A05MH76AC/AT/AU/AW (4977217721B01) Diagram

#

Description
Price

1

Kit, Short Block, 800 EFI NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warr

2202915

Unavailable

2

Nut, Nylok

7547108

$4.79

2

Nut, Nylok

7547108

$4.79

2

Nut, Nylok

7547108

$4.79

2

Nut, Nylok

7547108

$4.79

3

MOUNT, ENGINE, LOWER, FRONT, BLACK

5244771-067

$127.59

4

WASHER

7555823

Unavailable

5

Mount, Rubber, Top

3110044

Unavailable

5

Mount, Rubber, Top

3110044

Unavailable

6

BRACKET, TORQUE STOP

5245043

$15.83

7

Bolt

7518364

$1.59

8

BUSHING-.437 X.770 X.50

5430261

$7.19

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

10

Bolt

7518197

Unavailable

11

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

12

WASHER, FLAT

7555815

$3.99

12

WASHER, FLAT

7555815

$3.99

13

Mount, Rubber, Rear

3021119

Unavailable

14

CLAMP, HOSE

7080451

$7.19

15

Boot, Intake (If built after 11/15/04)

5412634

$11.19

15

Boot, Intake (If built before 11/15/04)

5411944

Unavailable

16

SCREW

7516734

$3.19

17

Bracket, Mount, RH

5248701

Unavailable

18

SCREW

7516734

$3.19

19

VALVE, CHECK

7052038

$10.51

20

Tubing

8350018-06

Unavailable

21

Guide, Throttle Cable

3131514

Unavailable

22

ASM., COVER AND O-RING

1202578

Unavailable

23

SCREW

3131515

$10.39

24

CLAMP, HOSE

7080236

$1.59
