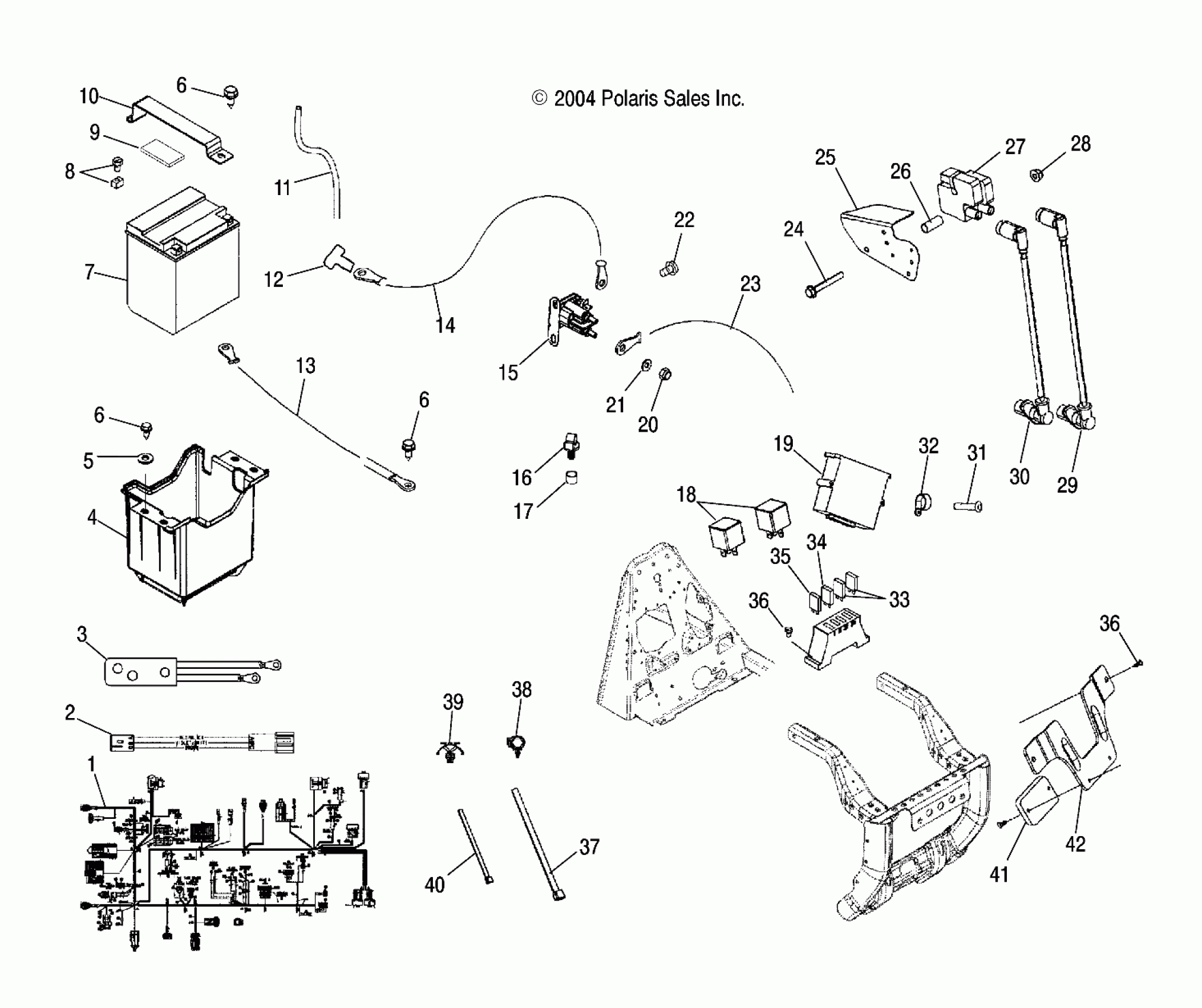

Polaris SPORTSMAN 800 EFI - A05MH76AC/AU/AW ELECTRICAL - A05MH76AC/AT/AU/AW (4977217721D03) Diagram

#

Description
Price

1

Kit, Fusible Link, 1.0mm

2202670

$44.99

1

KIT, HARNESS, T-BAP

2875542

$137.74

1

Kit, Harness, TPS

2203801

$140.38

1

Kit, Harness, Engine Temp

2875543

$135.54

1

KIT, HARNESS, CPS

2878077

$137.74

1

KIT, FUSIBLE LINK, .8MM

2202607

$39.68

1

Kit, Harness, Resistor Module

2204890

$161.49

1

Breaker, Circuit, 20AMP

2410323

$68.79

1

Harness, Main

2410528

Unavailable

2

Harness, Jumper

2410587

Unavailable

3

Harness, Winch

2410535

$93.08

4

BOX, BATTERY

5435696

$23.74

5

Washer, Flat

7555859

$1.19

6

Bolt

7512232

$1.19

6

Bolt

7512232

$1.19

6

Bolt

7512232

$1.19

7

BATTERY

4011224

$199.98

8

KIT, BATTERY BOLT

2202848

$4.99

9

PAD, RACK MOUNT

5810455

$3.22

10

STRAP, BATTERY HOLDDOWN

5247376

$15.19

11

Tube, Vent

5432077

Unavailable

12

Boot, Battery Cable, Rect. (If built after 11/29/04)

5412874

Unavailable

13

CABLE, BATTERY/FRAME

4011139

$44.51

14

Cable, Battery/Solenoid (If built before 11/29/04)

4011286

$40.46

14

Cable, Battery/Solenoid (If built after 11/29/04)

4010471

Unavailable

15

Switch, Magnetic (If built after 1/10/05)

4011251

$76.89

15

Switch, Magnetic (If built before 1/10/05)

4011072

$76.89

16

Clip

5432302

Unavailable

17

Bushing

7080399

Unavailable

18

RELAY

4011141

$84.43

19

ECU

4011256

Unavailable

20

Nut, Hex, Jam

7547283

$3.17

21

WASHER, SPRING LOCK

7552801

$1.59

22

Screw

7512084

$1.19

23

CABLE, SOLENOID/STARTER

4010376

$48.56

24

SCREW

----

Unavailable

25

GUARD, SPLASH, LH

5246872

$44.99

26

Spacer, Coil

----

Unavailable

27

Kit, Ignition Coil (Incl. 24,26,28)

2876049

$242.84

28

Nut

----

Unavailable

29

Wire, Spark Plug

4011060

$64.75

30

Wire, Spark Plug

4011059

$72.84

31

Screw

7518322

$5.79

32

CLAMP

7080585

$3.97

33

Fuse, Self Resetting, 20 Amp

2410365

Unavailable

34

Fuse, Self Resetting, 15 Amp

2410364

$43.56

35

Fuse, Self Resetting, 6 Amp

2410363

Unavailable

36

SCREW

7512024

$4.76

36

SCREW

7512024

$4.76

37

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

38

Clip, Rosebud

4020149

$6.35

39

MOUNT, CABLE TIE

7080965

$7.27

40

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

41

Regulator, Volt

4011100

$256.57

42

Bracket, Voltage Regulator

5248725

Unavailable
