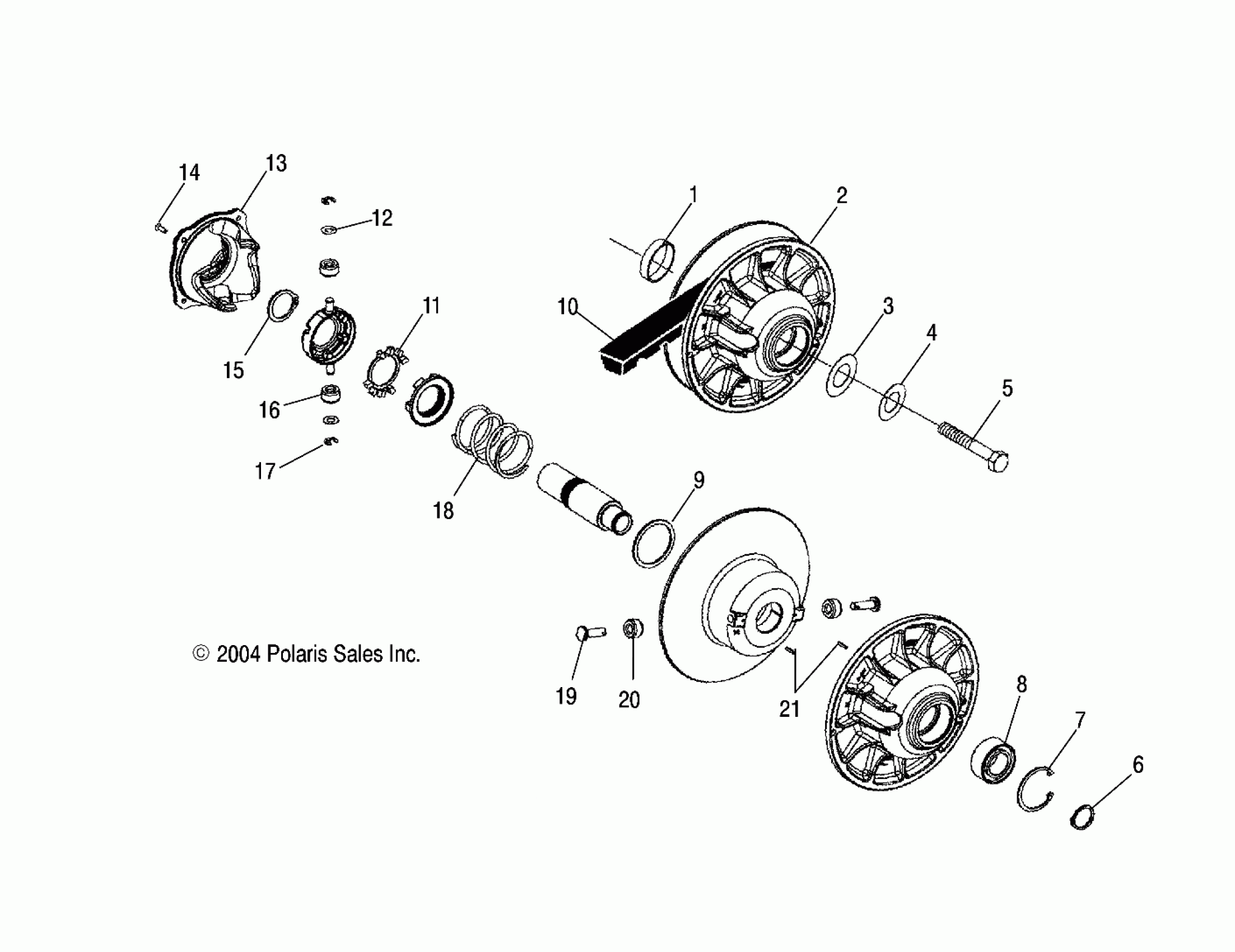

Polaris SPORTSMAN 800 EFI - A05MH76AC/AU/AW DRIVEN CLUTCH - A05MH76AC/AT/AU/AW (4977217721C11) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch [Incl. 6-9,11,12,14-17,19-21](If built before 1/01/05)

1322515

$614.99

2

Asm., Driven Clutch [Incl. 6-9,11,12,14-17,19-21](If built after 1/01/05)

1322550

$614.99

3

Washer, Domed

5248227

Unavailable

4

WASHER, SPRING LOCK

7552901

$1.49

5

BOLT

7515382

$2.39

6

RING, RETAINING

3234205

$11.19

7

Ring, Retaining

3234204

$7.99

8

BEARING, BALL

3234203

$23.99

9

WASHER, THRUST

3234200

$7.19

10

Belt, Drive

3211106

Unavailable

11

Dampener, Spider

3234206

Unavailable

12

Washer, Thrust

3234196

Unavailable

13

Asm., Cam

3234234

$279.99

14

Screw, Cap

3234192

$4.79

15

Ring, Retaining

3234194

Unavailable

16

ROLLER, CLUTCH

3234207

$47.99

17

Ring, Retaining

3234195

Unavailable

18

Spring, Compression, Green/White

3234233

Unavailable

19

PIN, ROLLER

3234201

$15.99

20

ROLLER, CLUTCH

3234197

$47.99

21

PIN,SPRING SLOTTED .125X.625

3234202

$3.99
